The D6 pairs with several T-Model guns — the T70 bottom-feed, T75G gravity-feed, and G-XPC side-mounted gravity-feed — each suited to different work. See the HVLP Spray Gun Buying Guide to compare.

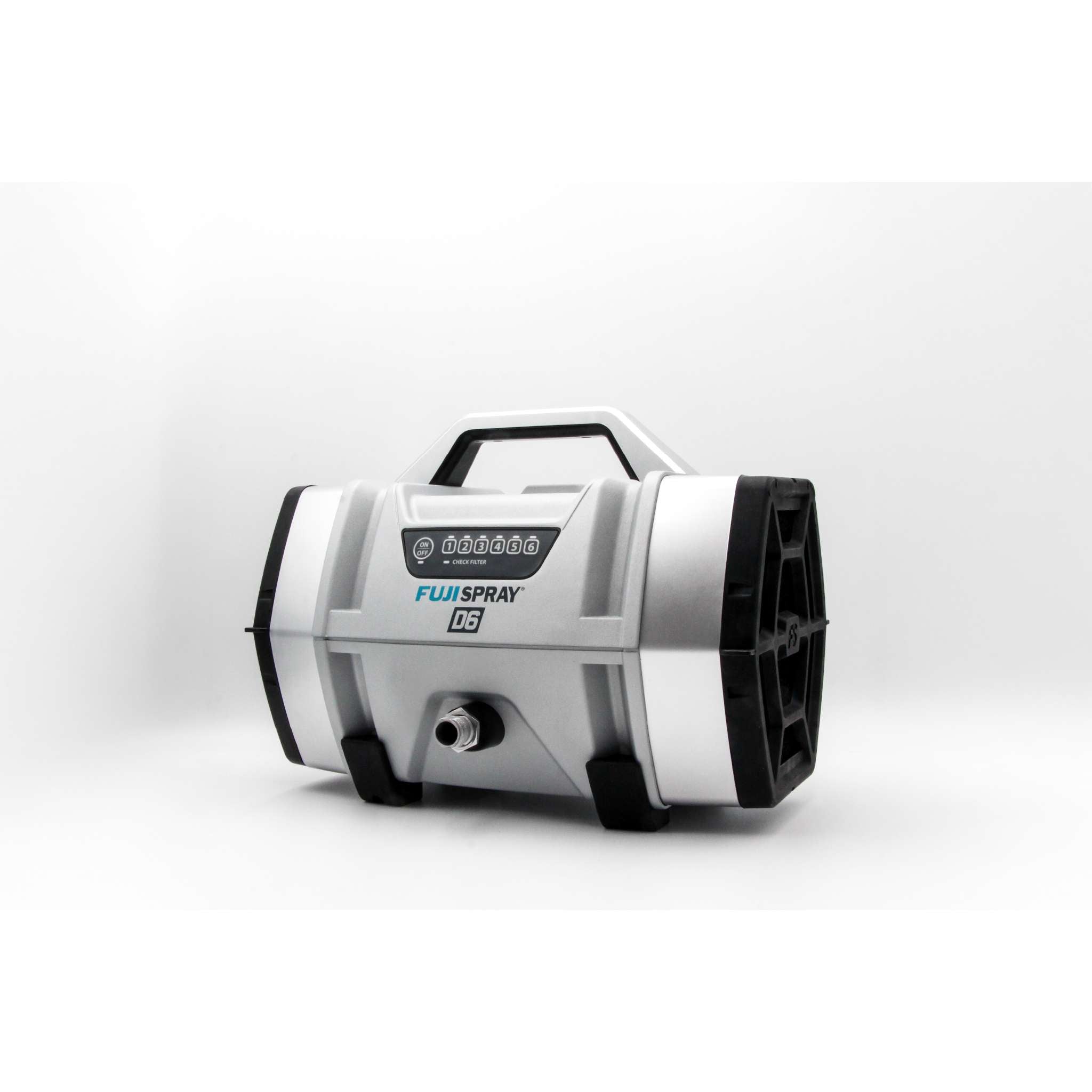

The Fuji Spray D6 System sets a new standard for HVLP spraying, built for professionals who demand cutting-edge performance. Featuring Fuji's most powerful 6-stage turbine, it delivers up to 11.5 PSI for exceptional atomization of any coating — from thin clear finishes to thick latex paints.
Paired with the ergonomic T-Model non-bleed spray gun and a 600cc gravity feed cup, the D6 offers unmatched precision, comfort, and control. This unit comes with a 1.3 mm air cap set.
The 30-foot gray super-duty hose with quick-connect coupling and air control valve provides maximum flexibility during use.
Additional features include the Smart Select Control Panel, which adjusts from 1-stage (3 PSI) to 6-stage (11.5 PSI) and self-calibrates so one machine handles delicate touch-up and heavy primer without compromise. Two-stage turbo filtration with a check filter light (every other Fuji system is single-stage), an Easy Pause Remote to adjust and pause without walking back to the turbine, and a fold-away spray gun holder round out the control side. The body is cast aluminum, sitting on solid rubber feet — Fuji designed both, along with the two-stage turbo filtration, to suppress heat, sound and vibration. Heat Dissipation Technology keeps heat from building up through a long session. Also included: a detailed user manual.
About the T75G spray gun: non-bleed, so air only moves when you pull the trigger. A dedicated fan pattern control takes it from a wide fan to a narrow one, and the fluid control is separate, so pattern and flow adjust independently. Ships with a 1.3 mm air cap set and a 600 cc gravity feed cup.
Most Fuji Spray products include a 2-year warranty — the D6 comes with a 2+1 year warranty on parts and labor.

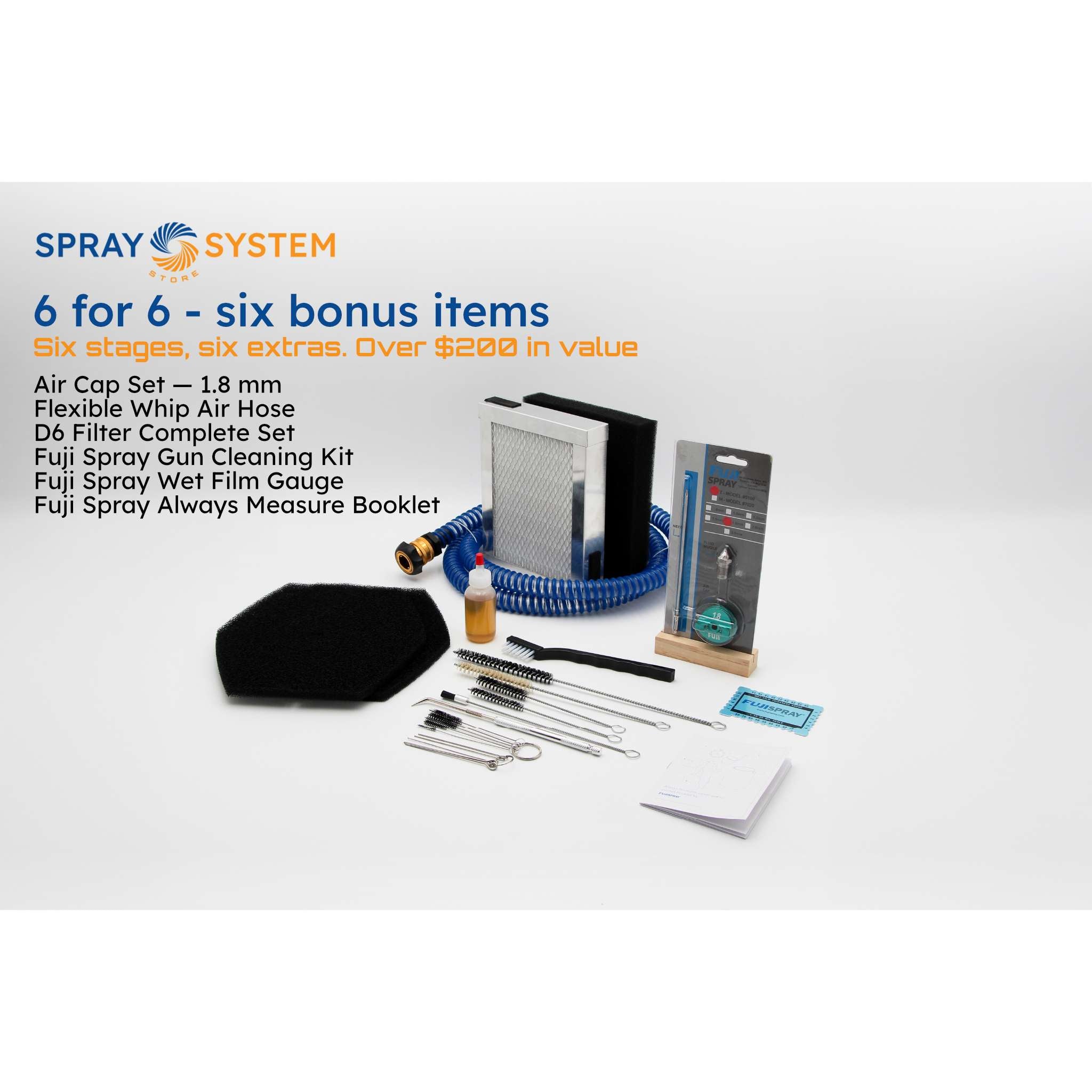

Six stages, six extras — over $200 in value.
Component PDF Specifications:
📄 D6 HVLP System with Gravity Feed Spray Gun Specification Sheet.
📄 T-Model HVLP Gravity Feed Spray Gun Specification Sheet.
📄 D6 HVLP Turbine Specification Sheet.
📄 D6 User Manual.
📄 D6 Quick Start Guide.
Sys Tim’s Tip: park the turbine 15–20 feet from where you spray, or in the next room — Fuji says distance from overspray is what makes the motor last.
Key Features
Compatible Spray Guns
This turbine also pairs with:
What's in the Box
Consumables
| Turbine Motor | 6-Stage |
| PSI (Max) | 11.5 PSI |
| Power | 1700 W |
| Voltage | 120V AC, 60Hz |
| Filtration | Foam & HEPA (2-Stage) |
| Turbine Dimensions | 18.00 x 15.00 x 11.00 in. |
| Turbine Weight | 25.57 lbs |
| Hose Length | 30 ft. |
| Hose Inside Diameter | ¾ in. |
| Hose Connection (Turbine) | 3/4 in. GHT (Garden Hose Thread), Threaded |
| Hose Connection (Spray Gun) | Quick-Connect |
| Warranty | 2+1 Year on Parts and Labor |
Country of Origin
Designed and assembled in Canada.
