HVLP Turbine Buying Guide

An HVLP turbine system is self-contained: the turbine generates its own air, so a motor, hose and spray gun are all you need. A compressor-driven gun has no motor of its own — it runs on air supplied by a separate compressor that you already own or buy alongside it. That one difference drives most of the decision.

Choose an HVLP turbine system if:

• You want a complete setup out of the box, with nothing else to buy or size up.
• You move between jobs, or work somewhere you cannot leave equipment set up.
• You are finishing wood, cabinets, furniture, doors and trim, or doing smaller metal and artistic work.
• You want clean, dry air at the gun. A turbine draws air through its own filters and does not produce the moisture or oil carry-over a compressor can, so there is nothing extra to plumb in and nothing to spot your finish.
• Storage matters. A turbine tucks into a corner between projects.

Choose a compressor-driven spray gun if:

• You already own a compressor with enough sustained output to feed a spray gun, or you were planning to buy one anyway.
• Your shop is built around a fixed compressor and you use it for other tools.
• You are doing automotive refinishing or production work, where mid-pressure guns are the norm.

Two things to check before going the compressor route

• Airflow, not just pressure. A compressor-driven gun is only as good as the compressor behind it. Spray guns need sustained airflow, and a good many workshop compressors cannot keep up — the gun starves partway through a pass and the finish shows it. Check the gun’s air requirement against your compressor’s continuous output, not its peak.
• Air quality. Compressed air carries moisture, and on oil-lubricated compressors it can carry traces of oil too. Both will show up in your finish as spotting or fisheye. Plan on a water trap, filter and regulator at minimum, and a dryer if your shop is humid. That is extra kit, extra cost and extra maintenance a turbine simply does not need.

Either approach can lay down an excellent finish. The right answer comes down to your workspace, how much you move around, and what you already own.

Start with stages
A turbine stage is a fan. Stack more of them and you get more air pressure at the gun. Fuji builds turbines from two stages up to six, and that single number drives almost everything else: more pressure means you can atomize thicker material without thinning it, and you cover ground faster while you are at it. Note any pressure specs mentioned on a turbine is at the outlet where the hose connects.

If you are between two systems, lean toward the more powerful one. Running a larger turbine gently is straightforward; asking a small one for more than it has is not.

What you plan to spray
This is the question that decides the stage count.

• Thin, clear finishes — lacquers, shellac, sealers, dyes and stains atomize easily and spray beautifully on the lower-stage systems.
• General-purpose coatings — waterborne lacquers, enamels and polyurethanes sit in the middle and are comfortable on a 4-stage machine.
• Heavy-bodied materials — latex and house paints, high-build primers and milk paints need the pressure at the top of the range, or they need thinning to spray properly.

Thinning is not a failure, it is normal practice. But every step up in pressure means less of it, and less fiddling to get a coat to lay down flat.

How often you spray
A turbine that comes out a few weekends a year has an easier life than one running most days. Whatever you buy, give it a rest — about 10 to 15 minutes for every 45 minutes of continuous spraying. Why? The motor spinning the turbines, and the air around it, heat up. The higher-output systems are built for longer sessions and recover better between them, which matters if finishing is how you earn a living rather than how you spend a Saturday.

Noise
Turbines are not quiet, and this catches people out. If you are working in an attached garage, a basement, a shared shop or anywhere within earshot of the rest of the house, it is worth paying for Fuji’s patented noise reduction on the Q Platinum Series. If your setup is in a detached workshop, it matters far less.

Portability and storage
If the turbine travels to the work, weight and bulk are real considerations — the Semi-PRO 2 and the Mini-Mite systems are the easy ones to carry and to put away. If it lives in one spot on a shop floor, you can ignore this entirely and buy on power instead.

Budget is the last filter, not the first. Work out what you need to spray, then find the least expensive system that will do it comfortably.

Every Fuji turbine sprays well. The differences come down to how much pressure the motor makes, how much material you can push through without thinning it, and how pleasant the machine is to live with.

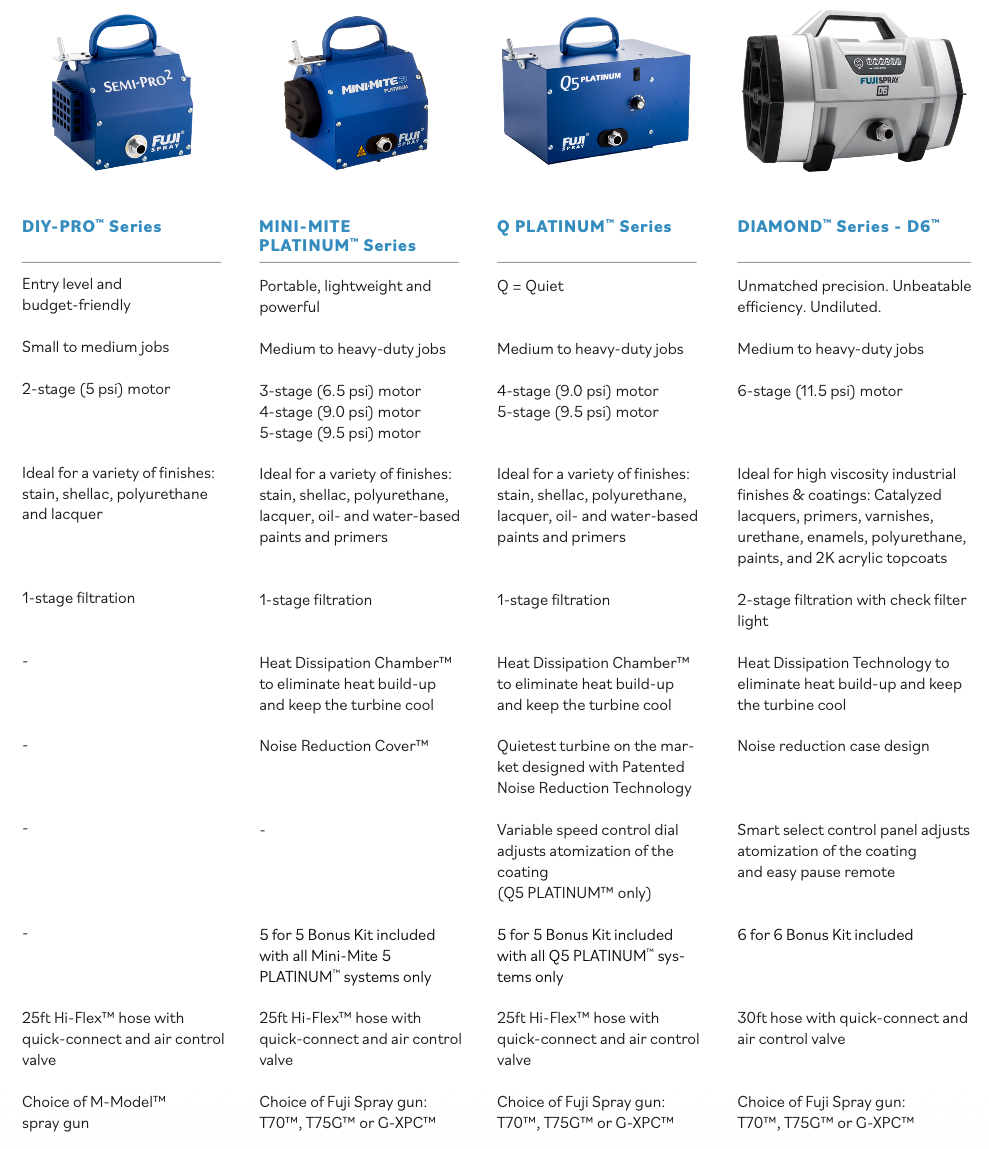

Reading the table

• Mini-Mite and Q overlap on power. A Mini-Mite 4 and a Q4 make the same 9.0 psi. You are choosing between them on noise and weight, not performance — the Q is markedly quieter and roughly twice the weight. If the turbine lives in a shop, take the Q. If it goes in the truck, take the Mini-Mite.
• The D6 is the only one that adjusts across the whole range. Its Smart Select panel runs from 1-stage (3 psi) right up to 6-stage (11.5 psi), so it can be dialled back for fine work and opened up for heavy coatings. Every other system runs at its rated output. Furthermore the D6 is able to self calibrate to ensure performance.
• Filtration steps up at the D6. The Semi-PRO 2, Mini-Mite and Q systems use single-stage filtration. The D6 uses two-stage filtration with a check filter light that tells you when it needs attention.
• Hose length and type differs. Semi-PRO 2, Mini-Mite and Q ship with a 25ft Hi-Flex hose; the D6 ships with 30ft and suitable for the hotter air. All include a quick-connect and air control valve.
• Gun choice is wider above the Semi-PRO 2. The Semi-PRO 2 comes with an M-Model gun. Every Mini-Mite, Q and D6 system lets you choose a T70, T75G or G-XPC.

Most Fuji turbines are sold two ways: as a complete system, or as the turbine on its own.

A complete system is ready to spray out of the box — turbine, spray gun, air hose and the accessories that go with them. The gun arrives fitted with an air cap set, so there is nothing else to buy before your first coat. This is what most people want, and for a first Fuji purchase it is almost always the right call.

Turbine only is exactly that: the turbine by itself. No spray gun, and no air hose. It is the right choice in a few specific situations, but you will need to supply both.

• You already own a Fuji gun and hose. Fuji’s turbine spray guns work across the turbine range, so a T70 or T75G you already own will run on a new turbine. No sense paying for a second one.
• You have outgrown your turbine. This is the common one. You started on a 2- or 3-stage machine, got good at it, and now you want to spray latex or high-build primer without thinning, or simply cover ground faster. The gun you already own is perfectly capable of that work — it is the turbine that needs to move up.
• Your turbine has reached the end of its life. Turbines do wear out. The motor brushes are the usual limit, and they give out after a few thousand hours of running. A spray gun, looked after and rebuilt when it needs it, will comfortably outlast several turbines.
• You want a gun the bundle does not offer. Buying the turbine alone lets you pair it with any gun in the range, including the Touch-Up gun.
• You are adding a second turbine. Two turbines and one gun is a common setup in a shop that wants a machine at each end of the work.

Guns last, turbines wear
It is worth understanding this early, because it shapes what you buy now and what you buy in five years. A Fuji spray gun is a mechanical thing — seals, a needle, a nozzle, an air cap. Everything that wears is replaceable, and a rebuild kit brings a tired gun back to as-new for a fraction of the price of a new one. Turbines have a motor, and motors have brushes that eventually wear through.

So the gun you buy today is likely to still be spraying long after the turbine under it has been replaced. That is an argument for buying a good gun the first time, and for not feeling you have to buy a whole new system when your ambitions outgrow your current machine.

Do not forget the hose
This is the one that catches people out. A turbine-only purchase does not include an air hose, and you cannot spray without one. If you are not carrying a hose over from an existing setup, add one — see our turbine air hoses. A flexible whip hose between the main hose and the gun is worth having too; it takes the weight off your wrist over a long session.

Which works out cheaper
Once you add a gun and a hose to a bare turbine, a complete system almost always comes in lower than buying the pieces separately. So unless you already own a compatible gun, buy the system. The exception is the D6, where the system includes extras beyond the gun and hose — worth putting the two side by side if you are weighing it up.

Choosing the gun in your system
Where a system is offered with more than one gun, the turbine is identical — only the gun changes, and so does the price by a few dollars. That decision deserves its own thought: bottom-feed against gravity-feed, cup capacity, and how the gun balances in your hand after an hour. Our spray gun guide walks through it.

• Best For: DIYers, hobbyists and weekend finishers taking on small to medium jobs — stain, shellac, polyurethane and lacquer.
• Power: A 2-stage motor generating 5 PSI. Plenty for thinner materials sprayed straight; heavier paints will need thinning.
• Portability: 12.35 lbs and 11" × 8.6" × 8.1" — the lightest turbine Fuji makes, and easy to store between projects.
• In the box: 25 ft Hi-Flex hose with quick-connect and air control valve, single-stage filtration, and a 24-month warranty.
• Spray Gun: Comes with the M-Model spray gun in bottom-feed with a 1 qt aluminium cup, or gravity-feed with a 400cc cup. Both ship with a 1.3 mm air cap set.
• Step up if: you plan to spray latex or primers, want the Heat Dissipation Chamber and Noise Reduction Cover, or want the choice of a T-Model or G-XPC gun — all of which start with the Mini-Mite Platinum.

• Best For: Medium to heavy-duty work, and anyone who carries the turbine to the job. Handles stain, shellac, polyurethane and lacquer, plus oil- and water-based paints and primers.
• Power: Three levels — 6.5 PSI, 9.0 PSI and 9.5 PSI. Each step up means thicker coatings with less thinning.
• Portability: All three weigh 12.35 lbs in the same 11" × 8.6" × 8.1" case — the same footprint as the Semi-PRO 2, with considerably more behind it.
• Built to keep running: A Heat Dissipation Chamber™ keeps the motor cool through longer sessions, and a Noise Reduction Cover™ takes the edge off.
• In the box: 25 ft Hi-Flex hose with quick-connect and air control valve, single-stage filtration, and a 24-month warranty.
• Spray Gun: Your choice of T70 bottom-feed with a 1 qt aluminium cup, T75G gravity-feed with a 600cc nylon cup, or G-XPC side-mounted gravity with a 400cc aluminium cup. The T-Models ship with a 1.3 mm air cap set, the G-XPC with 1.4 mm.

Which one?

• Mini-Mite 3 (3-Stage, 6.5 PSI) — clear finishes and lighter paints. The smallest step up from the Semi-PRO 2, and the least expensive way into the T-Model guns.
• Mini-Mite 4 (4-Stage, 9.0 PSI) — the all-rounder, and the one most people land on. Enough pressure for most coatings, including latex with modest thinning.
• Mini-Mite 5 (5-Stage, 9.5 PSI) — the most power Fuji puts in a portable case. Worth it if you spray heavy-bodied materials regularly.
• Step up if: noise matters where you work. The Q Platinum makes the same 9.0 and 9.5 PSI far more quietly — at roughly twice the weight.

• Best For: Medium to heavy-duty work in a space where noise matters — an attached garage, a basement shop, a finishing room next to an office, anywhere within earshot of other people. Same coating range as the Mini-Mite: stain, shellac, polyurethane, lacquer, oil- and water-based paints and primers.
• Power: Q4 at 9.0 PSI, Q5 at 9.5 PSI — identical output to the Mini-Mite 4 and Mini-Mite 5. You are not buying more pressure here. You are buying quiet.
• Why it's quieter: Fuji's patented Noise Reduction Technology, which they describe as the quietest turbine on the market, plus a Heat Dissipation Chamber™ to keep the motor cool.
• The trade-off: Weight. The Q4 is 22.73 lbs and the Q5 is 24.06 lbs, against 12.35 lbs for any Mini-Mite. The case is larger too, at 14.87" × 11.5" × 9". This is a turbine that lives in one place.
• In the box: 25 ft Hi-Flex hose with quick-connect and air control valve, single-stage filtration, and a 24-month warranty.
• Spray Gun: Your choice of T70 bottom-feed with a 1 qt aluminium cup, T75G gravity-feed with a 600cc nylon cup, or G-XPC side-mounted gravity with a 400cc aluminium cup.

Which one?

• Q4 Platinum (4-Stage, 9.0 PSI) — the quiet equivalent of the Mini-Mite 4, and the sensible choice if 9.0 PSI covers your work.
• Q5 Platinum (5-Stage, 9.5 PSI) — adds a Variable Speed Control Dial to fine-tune atomization and reduce overspray. The dial is Q5 only.
• Step up if: you need to spray catalyzed lacquers, 2K topcoats or high-build primers without thinning. That is where the D6 starts.

• Best For: Full-time finishers and anyone spraying high-viscosity industrial coatings — catalyzed lacquers, primers, varnishes, urethanes, enamels, polyurethane, paints and 2K acrylic topcoats, most of them undiluted.
• Power: A 6-stage motor reaching 11.5 PSI, the most Fuji makes. The pressure that lets you skip thinning on materials every other turbine would need you to reduce first.
• Adjustable across the whole range: The Smart Select control panel runs from 1-stage (3 PSI) right up to 6-stage (11.5 PSI). No other Fuji turbine does this — it means one machine handles delicate touch-up work and heavy primer, dialled in at the panel rather than compensated for at the gun.
• Built for the truck: A cast aluminium body rather than a plastic shell, sized at 18" × 15" × 11" and 25.57 lbs — heavier than a Mini-Mite, but built to take being loaded in and out of a vehicle and set down on a job site floor. The fold-away spray gun holder means the gun has a place to mount when not in use. The 30 ft hose (5 ft longer than every other system) keeps the turbine parked out of the way while you work the room.
• Cleaner air, longer life: Two-stage filtration with a check filter light that tells you when it needs attention — every other Fuji system uses single-stage. Heat Dissipation Technology keeps the motor cool through long runs, and a noise reduction case design keeps the volume down.
• Easy Pause remote: Adjust settings and pause the turbine without walking back to it. On a big job that saves a great many trips across the room.
• Award-winning: Winner of the 2025 WOOD Innovation Award from WOOD Magazine, which singled out the 6-stage turbine's ability to spray most high-viscosity finishes without thinning.
• Warranty: 2+1 year parts and labor — a year longer than the rest of the Fuji range, which carries 24 months.
• Spray Gun: Your choice of T70 bottom-feed with a 1 qt aluminium cup, T75G gravity-feed with a 600cc nylon cup, or G-XPC side-mounted gravity with a 400cc aluminium cup.

Fuji restores a limited number of turbines to near-new condition and sells them as Refurb, Scratch & Dent. Some are dealer returns, some are units with a mark on the case or damaged packaging. Mechanically they are sound, and every one carries Fuji's full warranty, exactly the same as a new turbine.

Stock depends entirely on what Fuji has restored, so it comes and goes — often a single unit of a given model, and rarely for long. But when the model you want does appear, it is the cheapest way to get that turbine, and a better buy than dropping down a series to make the budget work.

If you are not in a hurry, it is worth a look before you order. If nothing suitable is listed, email us and we will let you know when something comes in.

The turbine makes the air. The gun puts the finish on the work.

Once you have settled on a turbine, the gun is the other half of the decision — and it is the half you will actually hold. Bottom-feed or gravity-feed, cup size, how it balances after an hour, and which air cap suits the material you spray. Every Mini-Mite, Q Platinum and D6 system lets you choose, and the turbine is identical whichever you pick.

Read the HVLP Spray Gun Buying Guide →

Still not sure which turbine? That is worth an email rather than a guess. Tell us what you are finishing, what you are spraying it with, and where you will be working — hello@spraysystem.store.
