Fuji’s own service team says so — start here before replacing anything
Fuji’s technicians put it plainly: “Almost all the problems related to your spray gun can be attributed to a blockage or a cleaning issue.” Most of the fixes below cost minutes, not parts. Find your symptom and work the steps in order. Still stuck? Fuji Spray’s technical team are the people for the tough ones — 1-800-650-0930 or support@fujispray.com — and Sys Tim is one email away for parts, orders and everything else.
Fuji’s technicians put it plainly: “Almost all the problems related to your spray gun can be attributed to a blockage or a cleaning issue.” Most of the fixes below cost minutes, not parts. Find your symptom and work the steps in order. Still stuck? Fuji Spray’s technical team are the people for the tough ones — 1-800-650-0930 or support@fujispray.com — and Sys Tim is one email away for parts, orders and everything else.
A dimpled, citrus-skin texture instead of a flat film
Orange peel is too little atomization, and the causes rank in this order:
1. The material is too thick. Don’t guess — time it. Stir thoroughly, dunk the #4 Ford viscosity cup, and watch the stream: under 80 seconds is sprayable. Over that, thin with the reducer the material data sheet calls for — 10% first, then 5% steps, re-testing each time. Fuji’s viscosity video shows the method.
2. The air cap is too small for the material. Step up a size — the Air Cap Size Guide maps sizes to materials.
3. You’re too far away. Six to eight inches; past that the material starts drying mid-air.
Lacquer special case: turbine air is warm and lacquer dries fast — add a whip hose for cooler air at the gun, use a slowing agent, and work close with a wet coat.
Orange peel is too little atomization, and the causes rank in this order:
1. The material is too thick. Don’t guess — time it. Stir thoroughly, dunk the #4 Ford viscosity cup, and watch the stream: under 80 seconds is sprayable. Over that, thin with the reducer the material data sheet calls for — 10% first, then 5% steps, re-testing each time. Fuji’s viscosity video shows the method.
2. The air cap is too small for the material. Step up a size — the Air Cap Size Guide maps sizes to materials.
3. You’re too far away. Six to eight inches; past that the material starts drying mid-air.
Lacquer special case: turbine air is warm and lacquer dries fast — add a whip hose for cooler air at the gun, use a slowing agent, and work close with a wet coat.

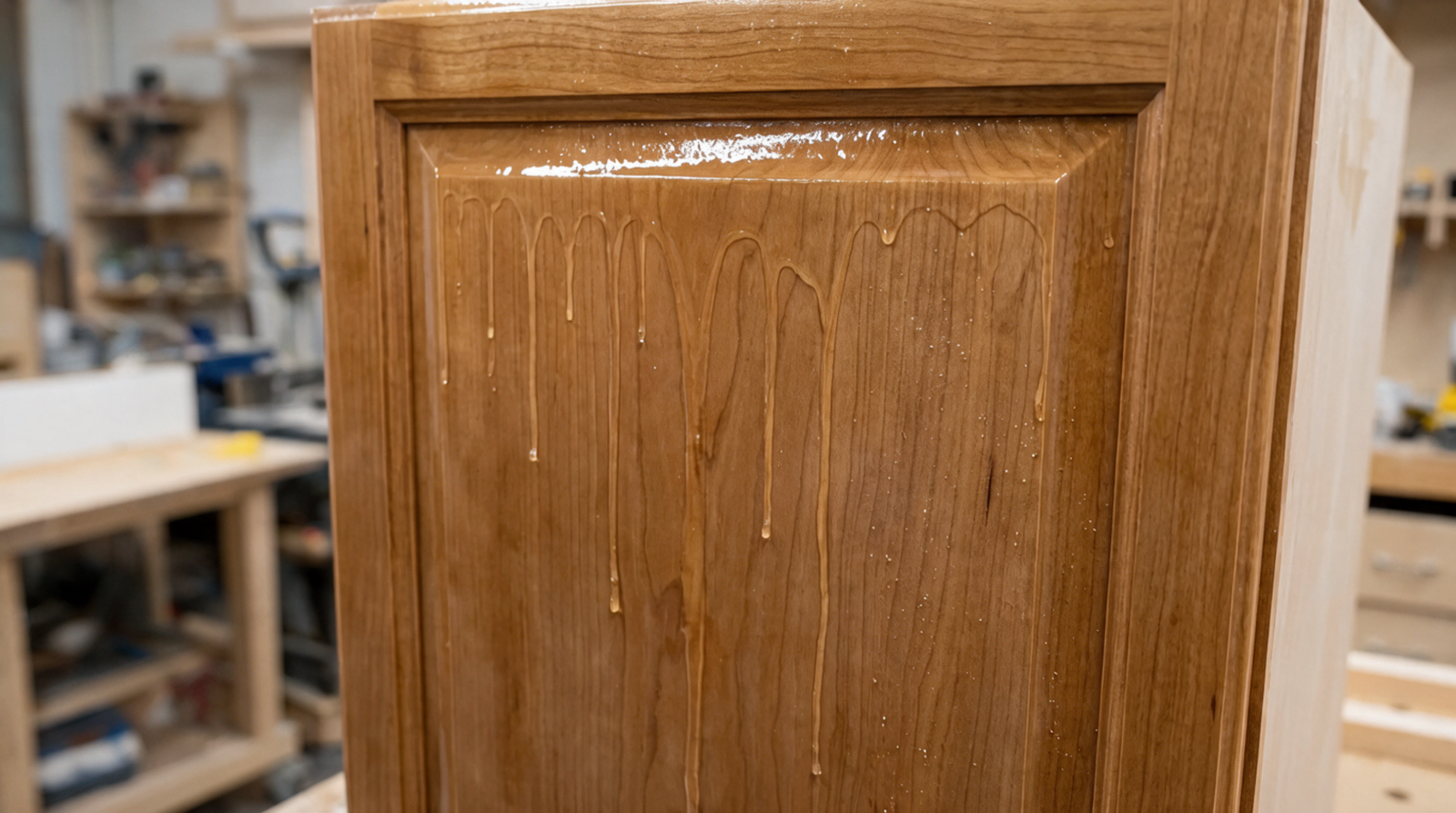

Material piling up faster than the surface can hold it
Over-thinned material runs on vertical surfaces. You’ll often see micro-bubbles or small craters in the wet film, and once it dries the sheen looks dull. The fix: mix the next batch with less thinner, re-test with the viscosity cup, and stay just under the 80-second mark.
A narrow fan pattern with the fluid turned up puts a lot of material into a small area, and drips follow. Whenever you narrow the fan, turn the fluid down with it — Fuji’s fan-control video shows exactly this happening on camera.
Two thin coats beat one thick coat — every time. Let each coat flash for the time the manufacturer specifies before the next goes on; rushing the recoat traps solvent and leaves the film soft. The full first-coat routine is in HVLP 101.
Over-thinned material runs on vertical surfaces. You’ll often see micro-bubbles or small craters in the wet film, and once it dries the sheen looks dull. The fix: mix the next batch with less thinner, re-test with the viscosity cup, and stay just under the 80-second mark.
A narrow fan pattern with the fluid turned up puts a lot of material into a small area, and drips follow. Whenever you narrow the fan, turn the fluid down with it — Fuji’s fan-control video shows exactly this happening on camera.
Two thin coats beat one thick coat — every time. Let each coat flash for the time the manufacturer specifies before the next goes on; rushing the recoat traps solvent and leaves the film soft. The full first-coat routine is in HVLP 101.

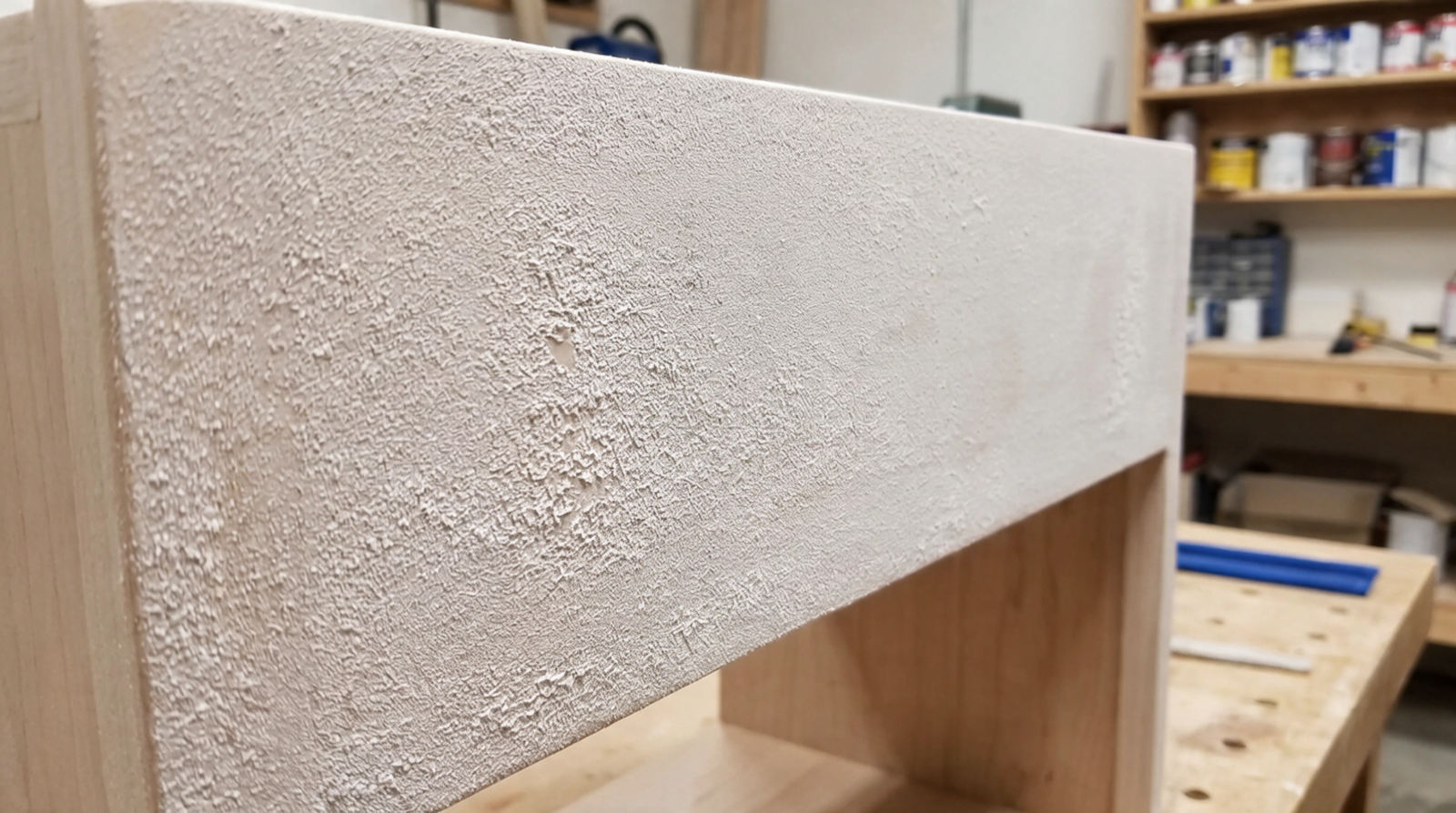

A rough, powdery surface that never flowed out
The material is partly drying before it lands. You’re too far from the surface, moving too fast, or feeding too little fluid for the airflow. Come back to six to eight inches and slow down. For fast-drying finishes, a whip hose cools the air reaching the gun.
Fuji’s T-Model user manual lists it as a gritty finish — rough and dry to the touch — and adds two fixes: turn the fluid control up for more material, and spray a wetter coat. Its fan-control video shows the six-to-eight-inch working distance.
The material is partly drying before it lands. You’re too far from the surface, moving too fast, or feeding too little fluid for the airflow. Come back to six to eight inches and slow down. For fast-drying finishes, a whip hose cools the air reaching the gun.
Fuji’s T-Model user manual lists it as a gritty finish — rough and dry to the touch — and adds two fixes: turn the fluid control up for more material, and spray a wetter coat. Its fan-control video shows the six-to-eight-inch working distance.
Finish that ends up in the air and on everything around the part
Overspray is finish that never becomes part of the coat. It happens two ways: bounce back, where the airflow carries material off the surface it just hit, and too much — more air, fluid or fan than the part needs, so the extra drifts past the edges as mist.
How it shows: a haze hanging in the room, fine speckles on the bench and everything near the work, dry specks where mist lands on a coat that’s already setting up, and more finish gone from the cup than the coverage you got.
What to do — Fuji’s own checklist, from the T-Model user manual:
1. The fan is too big for the part. Turn the fan control down to a smaller pattern — narrow for spindles and rails — and turn the fluid down with it.
2. The gun is too far away. Eight inches at most; six to eight is the working range. Go much closer and the airflow starts bouncing finish back instead.
3. The trigger is held across the whole piece. Trigger on and off as you pass over the edges.
4. The paint is too thin. Thin less, or use a smaller air cap set.
5. Too much atomizing air. Turn the air down at the air control valve — make it the last adjustment, after thinning, fan and fluid are set — until overspray is at a minimum but the finish still looks good. On a compressor gun the same rule applies to inlet pressure: use the lowest pressure that still atomizes properly.
6. No air movement. Open a window or door, or spray near an extraction fan. Keep the turbine 15–20 feet from the spray area so its filters aren’t breathing the mist.
Fuji’s fan-control video shows a narrow pattern throwing almost no overspray, and Jim’s maintenance tips video covers where to put the turbine.
Overspray is finish that never becomes part of the coat. It happens two ways: bounce back, where the airflow carries material off the surface it just hit, and too much — more air, fluid or fan than the part needs, so the extra drifts past the edges as mist.
How it shows: a haze hanging in the room, fine speckles on the bench and everything near the work, dry specks where mist lands on a coat that’s already setting up, and more finish gone from the cup than the coverage you got.
What to do — Fuji’s own checklist, from the T-Model user manual:
1. The fan is too big for the part. Turn the fan control down to a smaller pattern — narrow for spindles and rails — and turn the fluid down with it.
2. The gun is too far away. Eight inches at most; six to eight is the working range. Go much closer and the airflow starts bouncing finish back instead.
3. The trigger is held across the whole piece. Trigger on and off as you pass over the edges.
4. The paint is too thin. Thin less, or use a smaller air cap set.
5. Too much atomizing air. Turn the air down at the air control valve — make it the last adjustment, after thinning, fan and fluid are set — until overspray is at a minimum but the finish still looks good. On a compressor gun the same rule applies to inlet pressure: use the lowest pressure that still atomizes properly.
6. No air movement. Open a window or door, or spray near an extraction fan. Keep the turbine 15–20 feet from the spray area so its filters aren’t breathing the mist.
Fuji’s fan-control video shows a narrow pattern throwing almost no overspray, and Jim’s maintenance tips video covers where to put the turbine.
Dried material somewhere in the fluid path
Work through it in order — this is Fuji’s own sequence (three-minute video):
1. Remove the fluid nozzle and inspect it for dried material.
2. Brush the fluid passages with solvent, then fill the cup with solvent and spray until it’s gone — a full flush.
3. Rinse the pickup-tube strainer; dried residue on the mesh blocks flow. Spraying paints? Fuji suggests removing the strainer and cone-straining the material instead.
4. Check the pressure tube for backed-up material — clean or replace it, and if material has passed the check valve, replace tube and valve together.
5. Clear the nipples with a brush or a straightened paper clip.
Prevention: strain everything into the cup, and match the cap size to the viscosity.
Work through it in order — this is Fuji’s own sequence (three-minute video):
1. Remove the fluid nozzle and inspect it for dried material.
2. Brush the fluid passages with solvent, then fill the cup with solvent and spray until it’s gone — a full flush.
3. Rinse the pickup-tube strainer; dried residue on the mesh blocks flow. Spraying paints? Fuji suggests removing the strainer and cone-straining the material instead.
4. Check the pressure tube for backed-up material — clean or replace it, and if material has passed the check valve, replace tube and valve together.
5. Clear the nipples with a brush or a straightened paper clip.
Prevention: strain everything into the cup, and match the cap size to the viscosity.
Air escaping somewhere between lid and gun
The checklist, from Fuji’s pressurization video:
1. Check-valve direction. The tapered end is an arrow pointing where the air should flow — toward the cup. Flat side to the gun’s tube.
2. Nipples. Clear dried material before reinstalling the tube.
3. Threads and edges. Built-up material on cup or lid threads breaks the seal.
4. The gasket. Inspect for splits and tears, and wipe it clean rather than soaking — solvent makes gaskets swell. (Nylon gravity cups have no gasket; keep the threads clean.)
5. The brass tabs. Bent upward, the lid can’t seat — that’s when the cup itself is due for replacement.
The checklist, from Fuji’s pressurization video:
1. Check-valve direction. The tapered end is an arrow pointing where the air should flow — toward the cup. Flat side to the gun’s tube.
2. Nipples. Clear dried material before reinstalling the tube.
3. Threads and edges. Built-up material on cup or lid threads breaks the seal.
4. The gasket. Inspect for splits and tears, and wipe it clean rather than soaking — solvent makes gaskets swell. (Nylon gravity cups have no gasket; keep the threads clean.)
5. The brass tabs. Bent upward, the lid can’t seat — that’s when the cup itself is due for replacement.
Fuji calls it a stuck pattern
It almost always appears right after cleaning: the front end went back together misaligned. On a T-Model, strip the front again and check that the divider’s indicating hole lines up with the 12 o’clock hole on the gun body, then seat the diffuser’s locating pin in the same index. Fuji’s walkthrough shows the full sequence — worth one watch before you have a gun in pieces.
Pattern the wrong direction? That’s not a fault — rotate the air cap: horizontal cap for a vertical fan, vertical cap for horizontal. Adjust the fluid in tandem with any fan change.
It almost always appears right after cleaning: the front end went back together misaligned. On a T-Model, strip the front again and check that the divider’s indicating hole lines up with the 12 o’clock hole on the gun body, then seat the diffuser’s locating pin in the same index. Fuji’s walkthrough shows the full sequence — worth one watch before you have a gun in pieces.
Pattern the wrong direction? That’s not a fault — rotate the air cap: horizontal cap for a vertical fan, vertical cap for horizontal. Adjust the fluid in tandem with any fan change.
Almost always airflow, not the motor
Filters first. They’re the motor’s first line of defense, and a clogged set costs real pressure — clean or replace, and keep a spare set on the shelf. D6 owners: after a filter change, recalibrate the Check Filter light (press 3 and 4 together — one-minute video).
Distance. Park the turbine 15–20 feet from the spray area, or in the next room — the less overspray it breathes, the longer the motor lasts.
Hose path. Keep the air hose on the floor and free of kinks and coils.
Filters first. They’re the motor’s first line of defense, and a clogged set costs real pressure — clean or replace, and keep a spare set on the shelf. D6 owners: after a filter change, recalibrate the Check Filter light (press 3 and 4 together — one-minute video).
Distance. Park the turbine 15–20 feet from the spray area, or in the next room — the less overspray it breathes, the longer the motor lasts.
Hose path. Keep the air hose on the floor and free of kinks and coils.
Everything that wears on a Fuji gun is replaceable
If your gun sprayed beautifully once and has slowly gotten worse, the usual culprit is worn parts — not the gun itself. The nozzle, needle and air cap wear as a set — a fresh air cap set in your working size is often the whole fix. Beyond that, a rebuild kit brings the gun back to as-new: Fuji’s full strip-and-rebuild walkthroughs — T-Model and M-Model.
Turbine suddenly loud, or rattling? That’s worth a call rather than a part — an internal mount may have broken. Contact Fuji Spray’s technical team before running it further.
Still stuck after all of it? Start with Fuji Spray’s technical team — they’re genuinely excellent and they like the tough diagnostics: 1-800-650-0930 or support@fujispray.com. For parts, orders, or a second opinion, email Sys Tim — and if it’s a warranty matter, start here.
If your gun sprayed beautifully once and has slowly gotten worse, the usual culprit is worn parts — not the gun itself. The nozzle, needle and air cap wear as a set — a fresh air cap set in your working size is often the whole fix. Beyond that, a rebuild kit brings the gun back to as-new: Fuji’s full strip-and-rebuild walkthroughs — T-Model and M-Model.
Turbine suddenly loud, or rattling? That’s worth a call rather than a part — an internal mount may have broken. Contact Fuji Spray’s technical team before running it further.
Still stuck after all of it? Start with Fuji Spray’s technical team — they’re genuinely excellent and they like the tough diagnostics: 1-800-650-0930 or support@fujispray.com. For parts, orders, or a second opinion, email Sys Tim — and if it’s a warranty matter, start here.
