Ships from Fuji Spray. Allow a few extra business days.

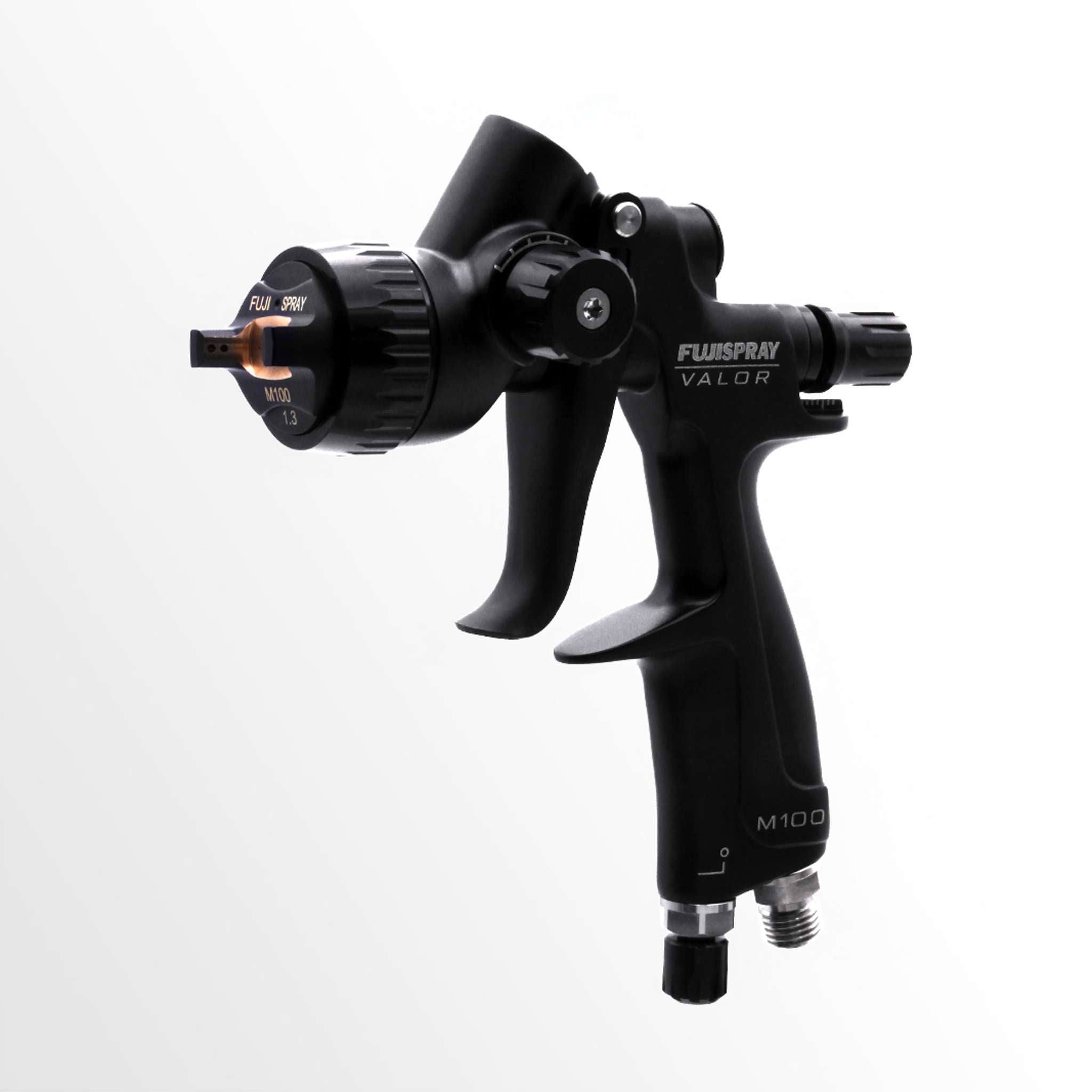

The Fuji Spray VALOR M100 CLEAR is purpose-built for clear coat application in professional automotive refinishing. A lightweight, ergonomic forged aluminum body with anodized internals keeps the gun comfortable through long shifts, while precise side-mounted fan pattern control with clear markings produces up to a 320mm (12.6") fan pattern. Optimized for waterborne or solvent-based coatings in high-production facilities, with fewer internal components for easy cleaning and maintenance.
M100 CLEAR or H100 BASE? The M100 is the clear-coat gun and carries the wider selection: five air cap sets from 1.2 mm to 2.1 mm, so it covers fine clears through heavier material. The H100 BASE is its base-coat counterpart, with three sets from 1.3 mm to 1.7 mm.
To use this gun with the 3M Paint Preparation System (PPS) 2.0, you'll need the S15 Adapter (#MMM26046), sold separately. Compressor guns take 3M's standard PPS 2.0 cup straight off the fluid coupler. Fuji’s own how-to shows the same adapter-and-cup install on a V8.

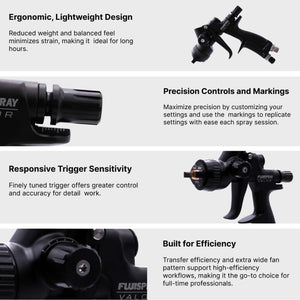

Key Features
Compatible Air Cap Sets
This gun also takes:
What's in the Box
Consumables
| Gun Type | HVLP |
| Feed Type | Gravity Feed |
| Air Source | Compressor |
| Application Type | Clear Coat |
| Standard Air Cap Set | 1.3 mm |
| Available Air Cap Sets | 1.2, 1.3, 1.4, 1.7, 2.1 mm |
| Operating Range | 9–29 PSI |
| Air Consumption | 10.8 CFM |
| Maximum Fan Width | 320 mm (12.6 in) |
| Air Inlet Size | 1/4" PF |
| Air Supply Hose | 6.5 × 10 mm |
| Fluid Coupler | 3/8" PF |
| Gun Weight (Without Cup) | 435 g (0.96 lbs) |
| 3M PPS 2.0 Adapter | S15 (3M part 26046) |

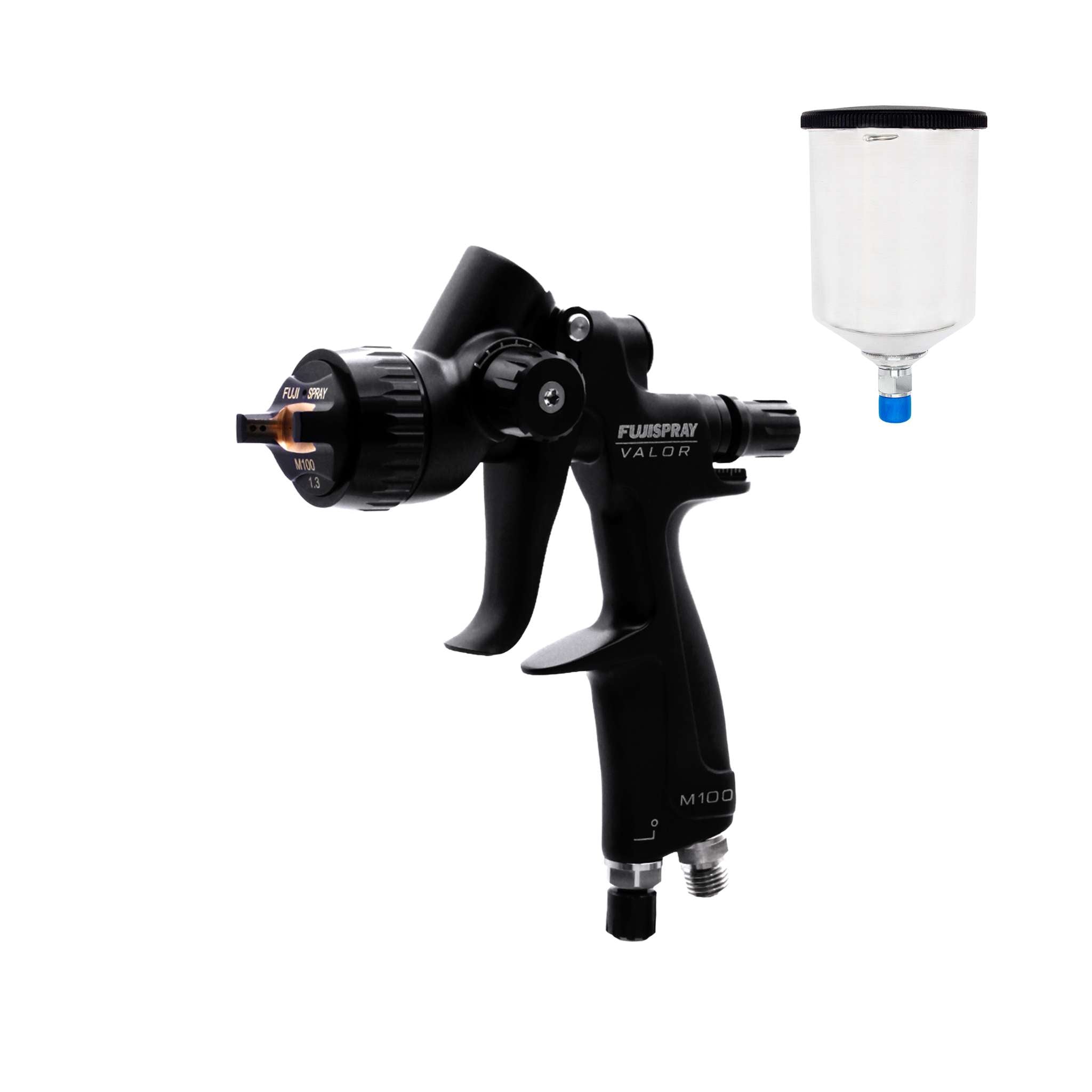

| Cup | Sold as No Cup, 600 cc Aluminum or 600 cc Nylon — choose above |
Country of Origin
Designed and assembled in Canada.
Fuji filmed this on a V8, but the VALOR M100 takes the same S15 adapter on the same fluid coupler, so the steps are similar.
