You will need one — the turbine does not include a gun. The D6 pairs with the T70 bottom-feed, T75G gravity-feed and G-XPC side-mounted gravity-feed, each suited to different work. See the HVLP Spray Gun Buying Guide to compare.
Ships from Fuji Spray. Allow a few extra business days.

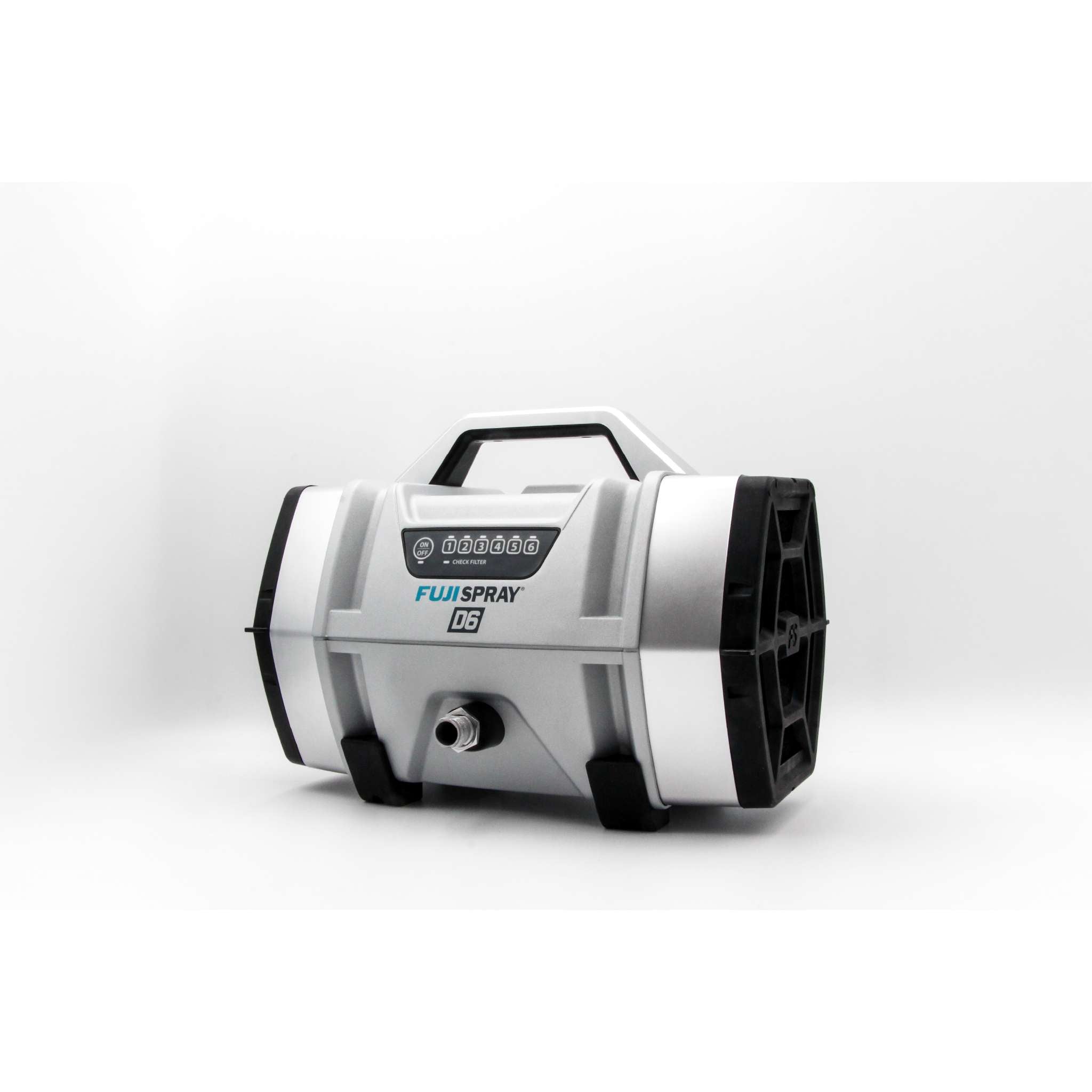

The Fuji Spray D6 System sets a new standard for HVLP spraying, built for professionals who demand cutting-edge performance. Featuring Fuji's most powerful 6-stage turbine, it delivers up to 11.5 PSI for exceptional atomization of any coating — from thin clear finishes to thick latex paints.
This is a turbine only, so you can bring your favorite Fuji Spray HVLP spray gun. Also note, this unit outputs hot air, so you should be using the gray super-duty turbine air hose.

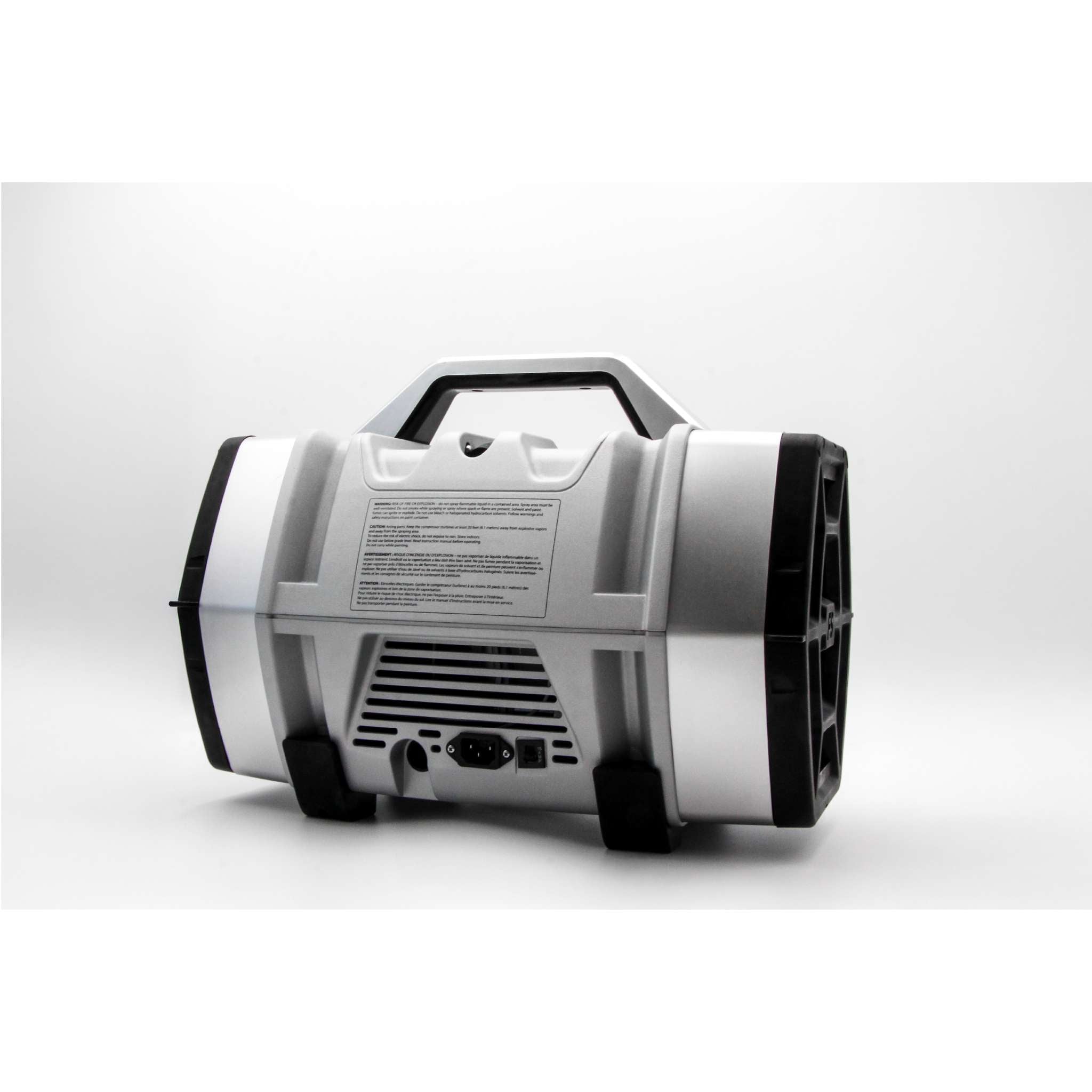

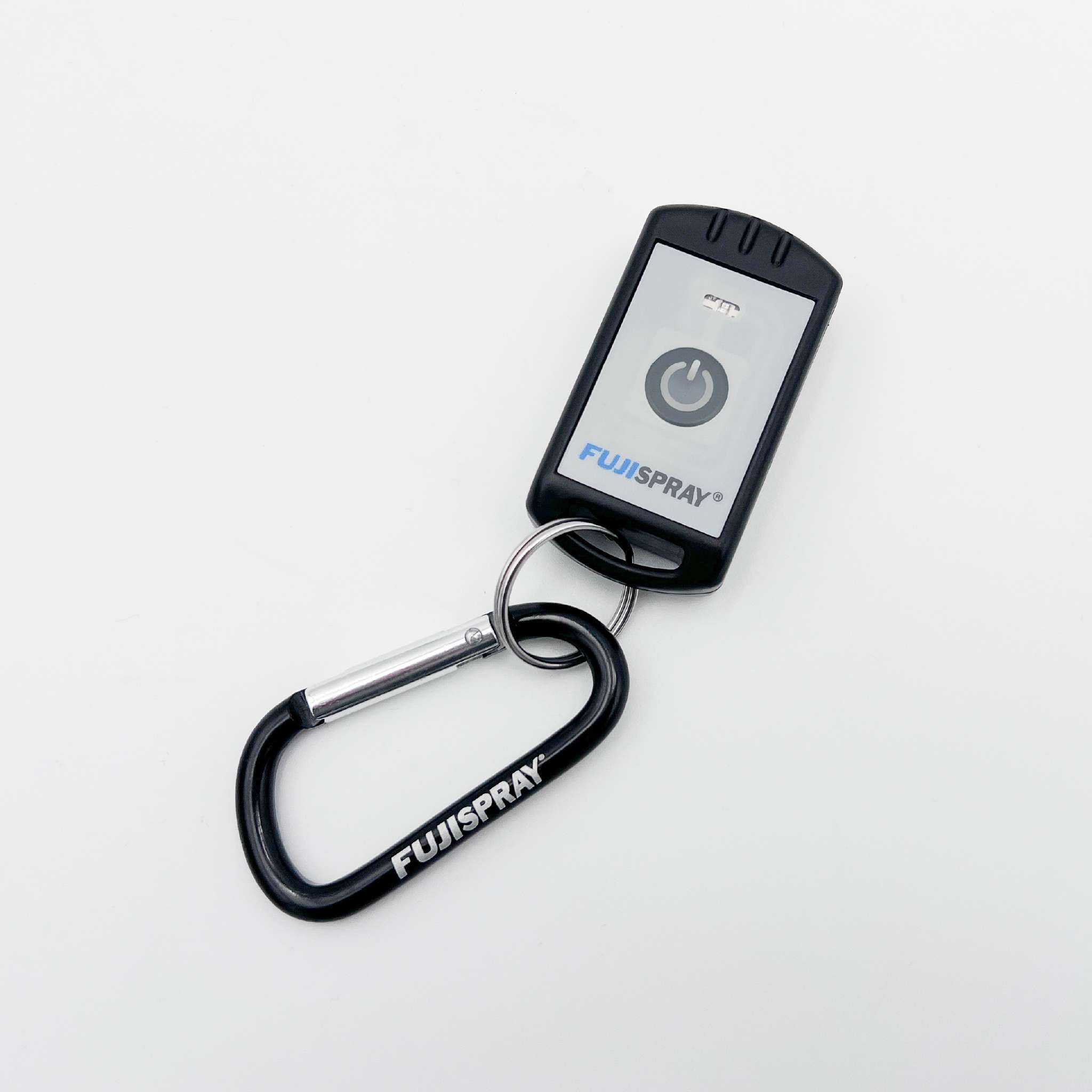

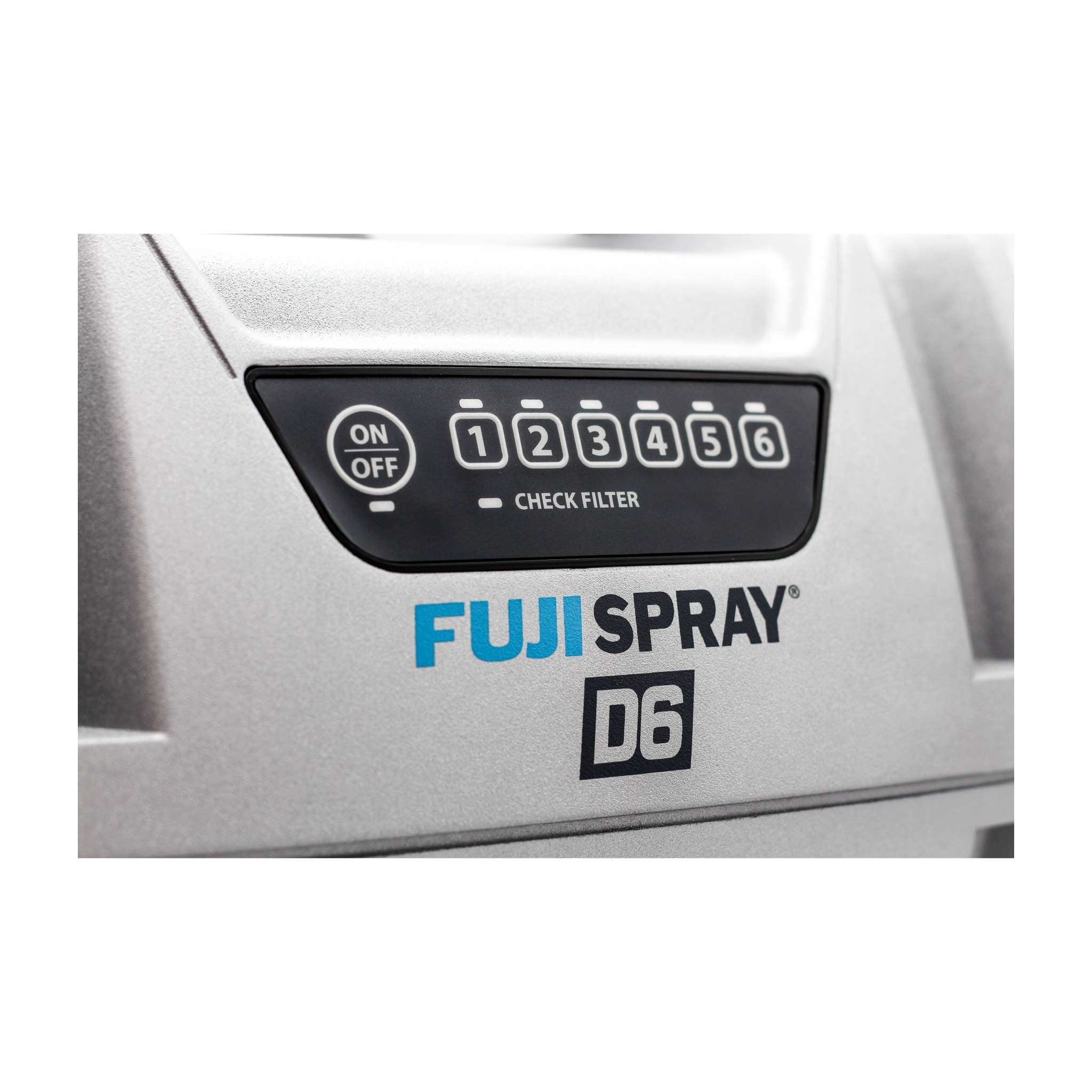

Additional features include the Smart Select Control Panel, which adjusts from 1-stage (3 PSI) to 6-stage (11.5 PSI) and self-calibrates so one machine handles delicate touch-up and heavy primer without compromise. Two-stage turbo filtration with a check filter light (every other Fuji system is single-stage), an Easy Pause Remote to adjust and pause without walking back to the turbine, and a fold-away spray gun holder round out the control side. The body is cast aluminum, sitting on solid rubber feet — Fuji designed both, along with the two-stage turbo filtration, to suppress heat, sound and vibration. Heat Dissipation Technology keeps heat from building up through a long session. Also included: a detailed user manual.
Most Fuji Spray products include a 2-year warranty — the D6 comes with a 2+1 year warranty on parts and labor.
Component PDF Specifications:
📄 D6 HVLP Turbine Specification Sheet.
📄 D6 User Manual.
📄 D6 Quick Start Guide.
Sys Tim’s Tip: park the turbine 15–20 feet from where you spray, or in the next room — Fuji says distance from overspray is what makes the motor last.
This turbine ships without a spray gun. Every Fuji Spray turbine gun fits it. These are the ones we recommend.
Key Features
Recommended Spray Guns
What's in the Box
Consumables
| Turbine Motor | 6-Stage |
| PSI (Max) | 11.5 PSI |
| Power | 1700 W |
| Voltage | 120V AC, 60Hz |
| Filtration | Foam & HEPA (2-Stage) |
| Turbine Dimensions | 18.00 x 15.00 x 11.00 in. |
| Turbine Weight | 25.57 lbs |
| Hose Length | |
| Hose Inside Diameter | |
| Hose Connection (Turbine) | |
| Hose Connection (Spray Gun) | |
| Warranty | 2+1 Year on Parts and Labor |
Country of Origin
Designed and assembled in Canada.
