The D6 pairs with several T-Model guns — the T70 bottom-feed, T75G gravity-feed, and G-XPC side-mounted gravity-feed — each suited to different work. See the HVLP Spray Gun Buying Guide to compare.
This item drop ships from Fuji Spray and may require additional processing time.

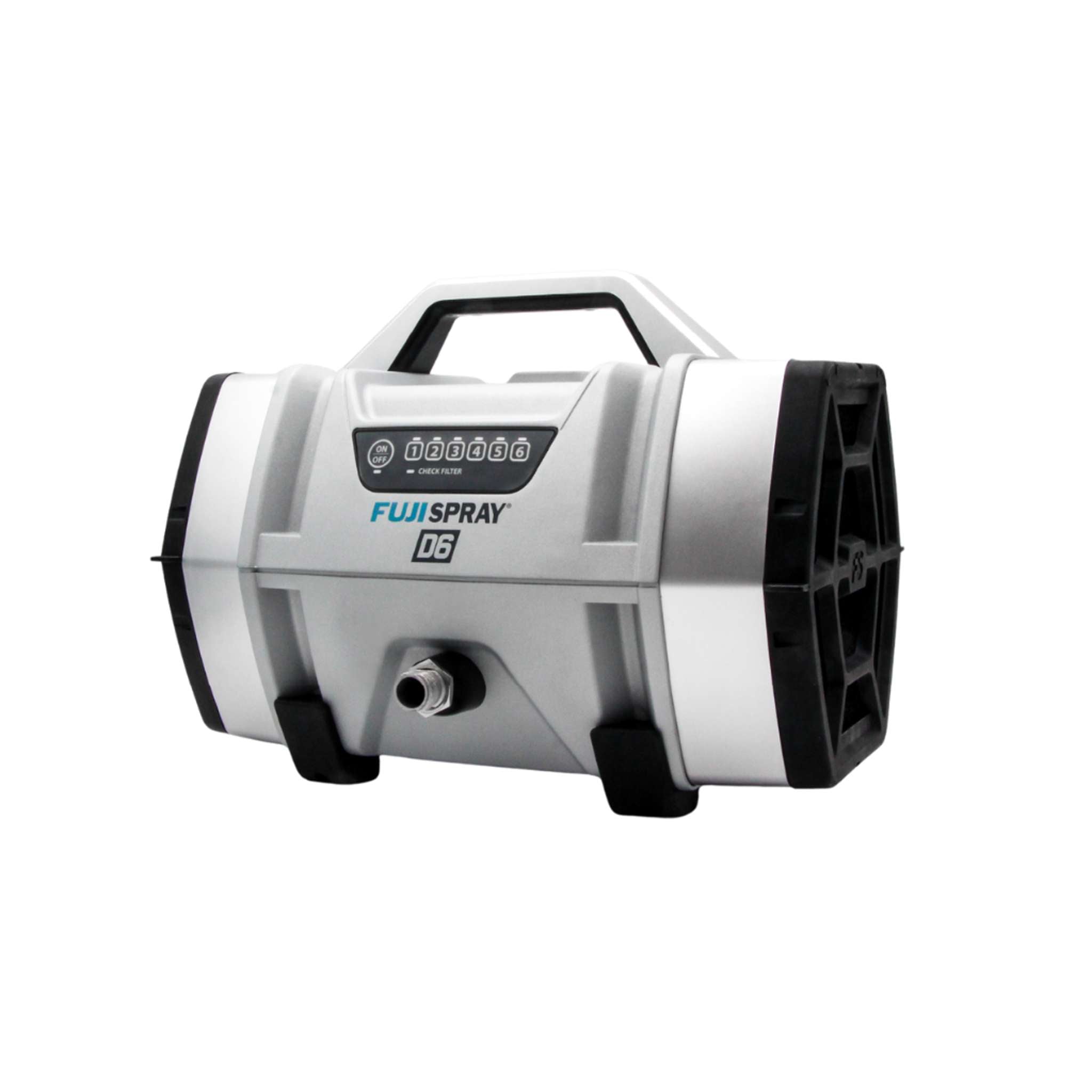

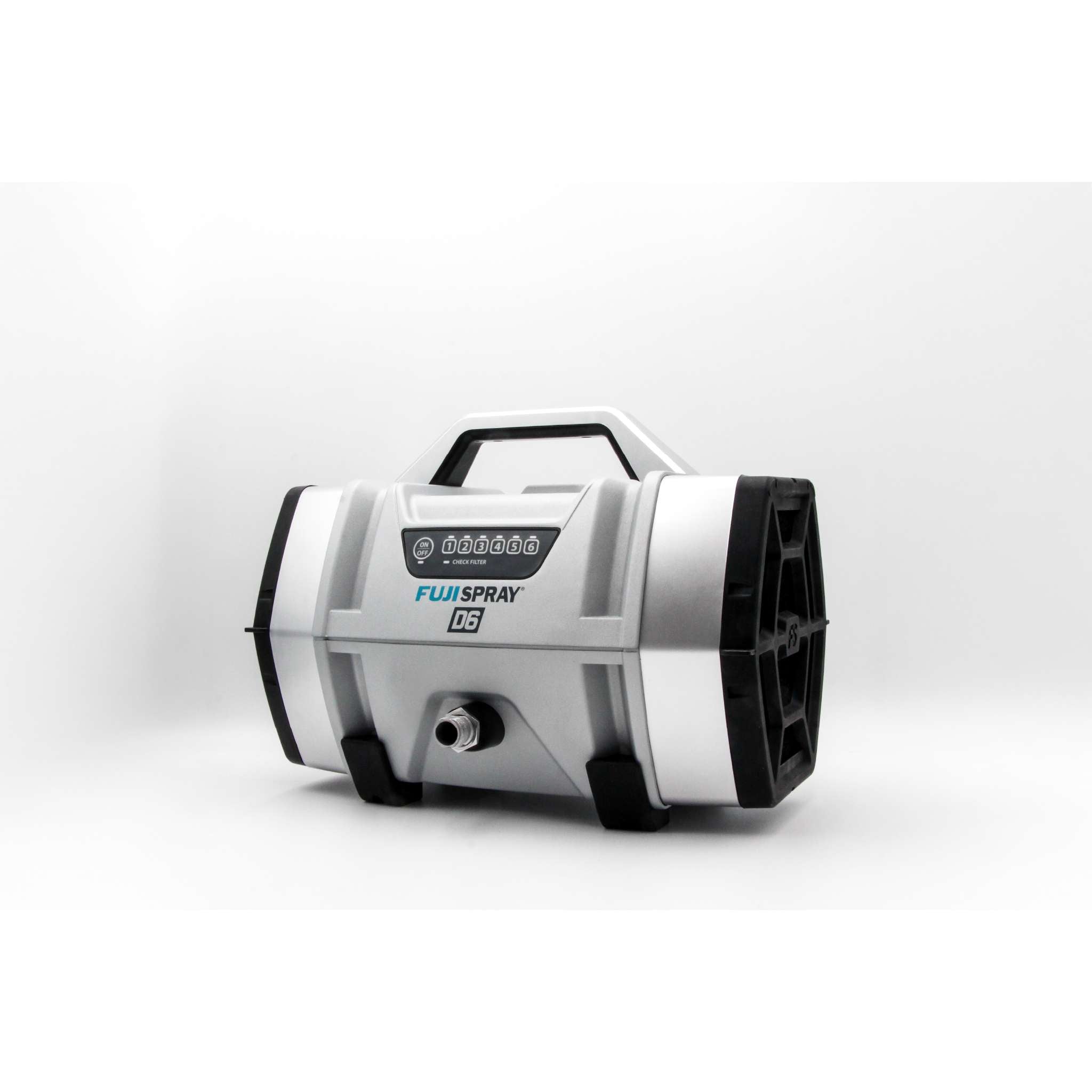

The Fuji Spray D6 System sets a new standard for HVLP spraying, built for professionals who demand cutting-edge performance. Featuring Fuji's most powerful 6-stage turbine, it delivers up to 11.5 PSI for exceptional atomization of any coating — from thin clear finishes to thick latex paints.
This is a turbine only, so you can bring your favorite Fuji Spray HVLP spray gun. Also note, this unit outputs hot air, so you should be using the grey super-duty turbine air hose.

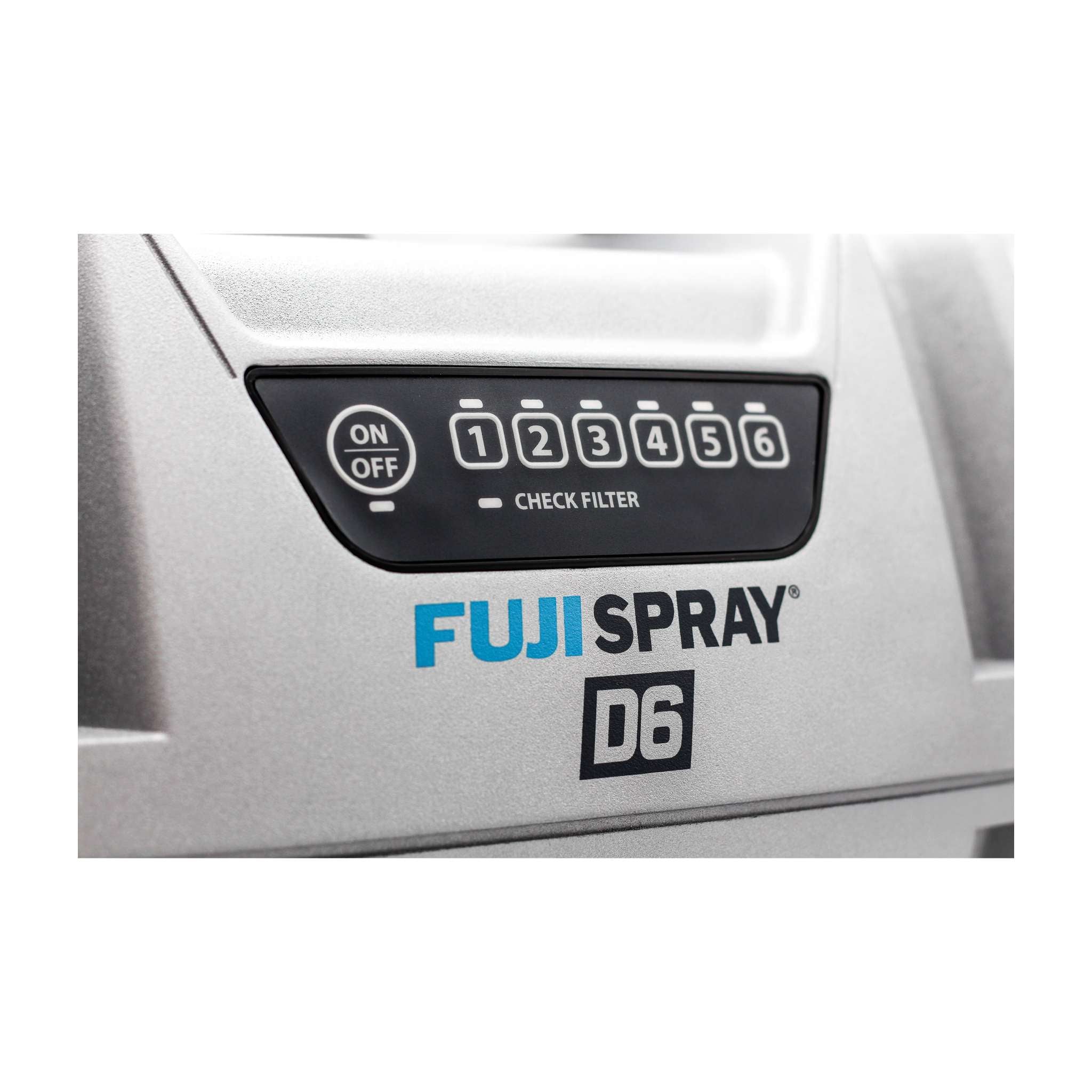

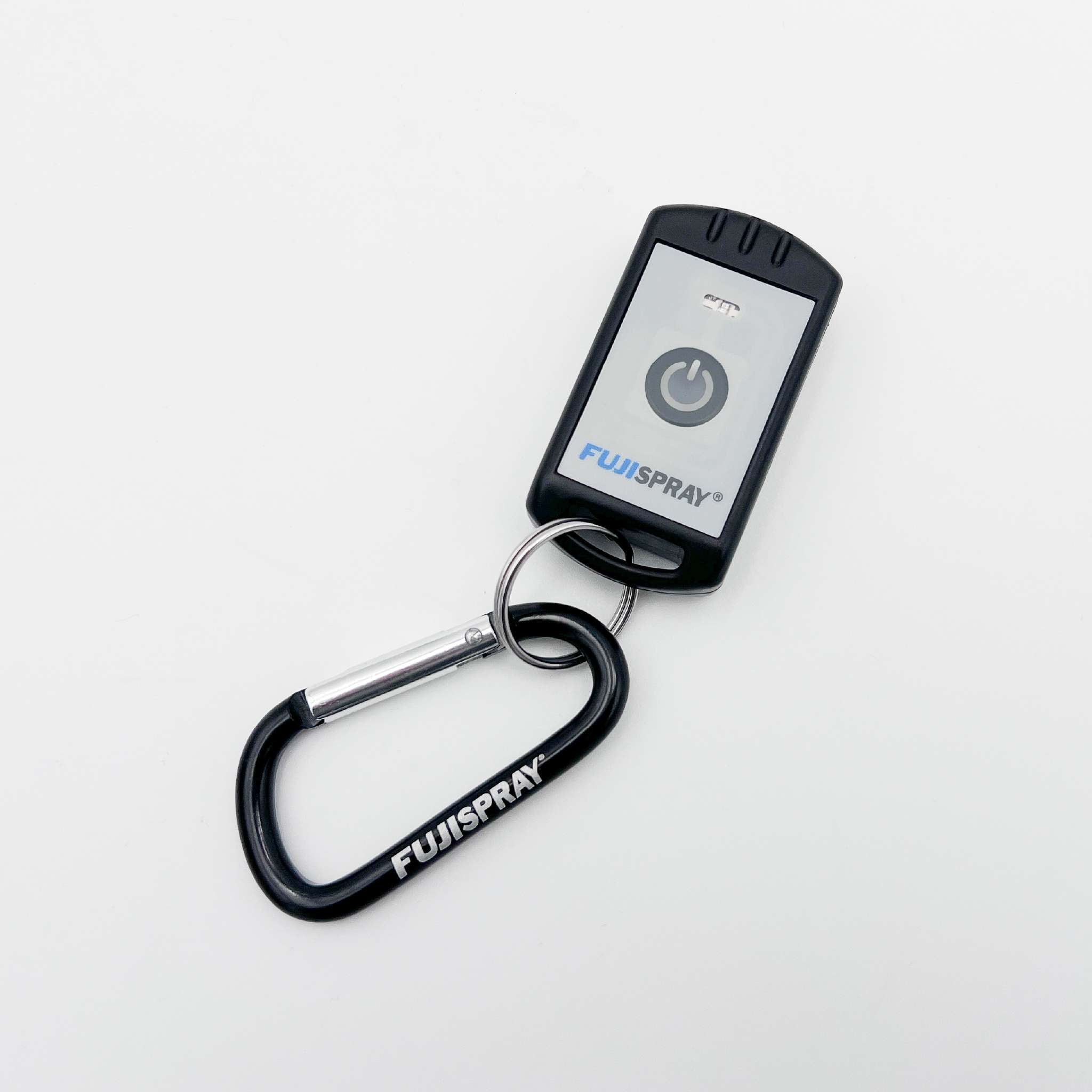

Additional features include the Smart Select Control Panel, which adjusts from 1-stage (3 PSI) to 6-stage (11.5 PSI) and self-calibrates so one machine handles delicate touch-up and heavy primer without compromise. Two-stage turbo filtration with a check filter light (every other Fuji system is single-stage), an Easy Pause Remote to adjust and pause without walking back to the turbine, and a fold-away spray gun holder round out the control side. Also included: a noise reducing case design, Heat Dissipation Technology, U.S. Patented side-mounted Fan Pattern Control, and a detailed user manual.
Most Fuji Spray products include a 2-year warranty — the D6 comes with a 2+1 year warranty on parts and labor.
Component PDF Specifications:
Key Features
Compatible Spray Guns
What's in the Box
Consumables
| Turbine Motor | 6-Stage |
| PSI (Max) | 11.5 PSI |
| Power | 1700 W |
| Voltage | 110-120V |
| Filtration | Foam & HEPA (2-Stage) |
| Turbine Dimensions | 18.00 x 15.00 x 11.00 in. |
| Turbine Weight | 25.57 lbs |
| Hose Length | |
| Hose Inside Diameter | |
| Hose Connection (Turbine) | |
| Hose Connection (Spray Gun) | |
| Warranty | 2+1 Year on Parts and Labor |
Country of Origin
Designed and assembled in Canada.
