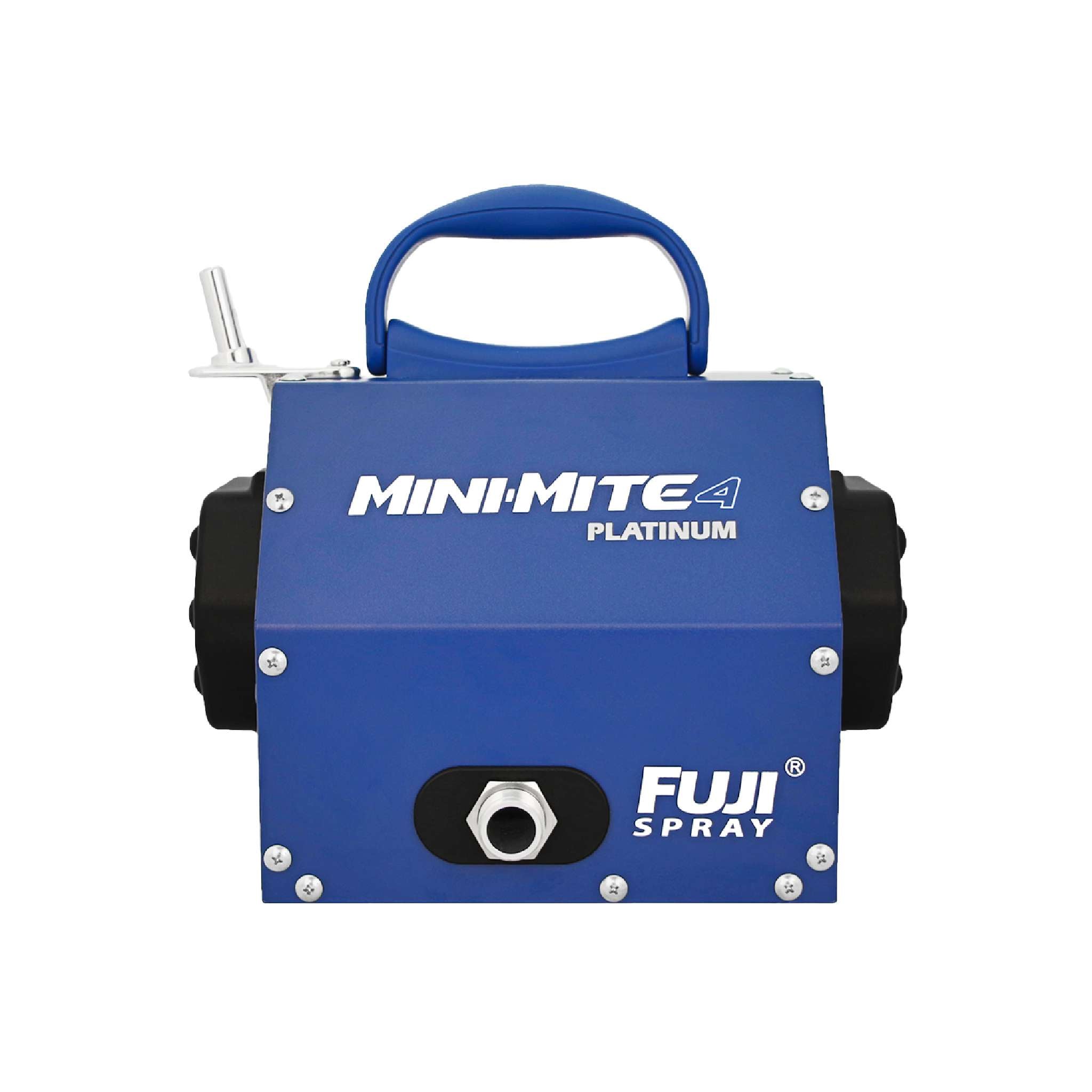

Fuji Spray Mini-Mite 4 Platinum HVLP turbine.

Mini-Mite 4 Platinum
HVLP Turbine Only

SKU: 1208C
$669.00 USD

This item drop ships from Fuji Spray and may require additional processing time.

The Fuji Spray Mini-Mite 4 Platinum is a professional-grade HVLP system built for demanding finishers and serious DIYers. It features a powerful 4-stage turbine generating approximately 9 PSI, allowing you to spray a wide range of coatings with ease.

This is a turbine only, so you can bring your favorite Fuji Spray HVLP spray gun. Also note, this unit outputs hot air, so you should be using the blue heavy-duty turbine air hose.

Additional features include Fuji's Heat Dissipation Chamber, Noise Reduction Covers, a detailed user manual.

Most Fuji Spray products include a 2-year warranty on parts and labor.

Component PDF Specifications:

📄 Mini-Mite 4 Platinum HVLP Turbine Specification Sheet.

Full Specifications

Key Features

  • Rugged, lightweight, portable metal turbine case
  • Heat Dissipation Chamber — cooler running, increased turbine motor life
  • Noise Reduction Covers — muffles the operating level by removing direct sound paths, quieter than previous Mini-Mite models
  • Handy gun-holder
  • Quick-change filters
  • Standard 25ft Hi-Flex hose with quick-connect and air control valve
  • Choice of one Fuji Spray gun (T70, T75G, or G-XPC), easily disassembled for hassle-free cleanup
  • U.S. Patented side-mounted Fan Pattern Control — adjusts fan from circular to wide, three orientations
  • Multiple air cap sizes (0.8mm–2.5mm) for materials from stains to paints with little or no dilution
  • Includes user manual, Ford #4 viscosity cup, spray gun wrench, and cleaning brush
  • 2-Year Warranty on Parts and Labor

Compatible Spray Guns

What's in the Box

  • Mini-Mite 4 Platinum Turbine
  • User manual

Consumables

Technical Data

Turbine Motor4-Stage
PSI (Max)9.0 PSI
Power1400 W
Voltage110-120V
Filtration1-Stage
Turbine Dimensions11.00 x 8.60 x 8.10 in.
Turbine Weight12.35 lbs
Hose Length
Hose Inside Diameter
Hose Connection (Turbine)
Hose Connection (Spray Gun)
Warranty2-Year on Parts and Labor

Country of Origin

Designed and assembled in Canada.

Mini-Mite 4 Platinum System Add-Ons

Flexible Whip Air Hose - 6 ft, Blue.
Flexible Whip Air Hose - 6 ft, Blue $47.95 USD
Heavy-Duty Turbine Air Hose – 25 ft, Blue.
Heavy-Duty Turbine Air Hose – 25 ft, Blue $89.95 USD
Fuji Spray Quick-Connect Coupling.
Quick-Connect Coupling $6.95 USD
Product photo coming soon.
Air Hose Control Valve $4.95 USD
Sold Out
Fuji Spray Turbine Filters — Mini-Mite Platinum $9.75 USD

T-Model Air Caps

T-Model Air Cap Set - 0.8 mm $78.95 USD
T-Model Air Cap Set - 1.0 mm $78.95 USD
T-Model Air Cap Set - 1.3 mm $78.95 USD
T-Model Air Cap Set - 1.5 mm $78.95 USD
T-Model Air Cap Set - 1.8 mm $78.95 USD
T-Model Air Cap Set - 2.0 mm $78.95 USD
T-Model Air Cap Set - 2.5 mm $78.95 USD
Fuji Spray T-Model Air Cap Set, 0.8 mm.
T-Model Air Cap Set - 0.8 mm $78.95 USD
Fuji Spray T-Model Air Cap Set, 1.0 mm.
T-Model Air Cap Set - 1.0 mm $78.95 USD
Fuji Spray T-Model Air Cap Set, 1.3 mm.
T-Model Air Cap Set - 1.3 mm $78.95 USD
Fuji Spray T-Model Air Cap Set, 1.5 mm.
T-Model Air Cap Set - 1.5 mm $78.95 USD
Fuji Spray T-Model Air Cap Set, 1.8 mm.
T-Model Air Cap Set - 1.8 mm $78.95 USD
Fuji Spray T-Model Air Cap Set, 2.0 mm.
T-Model Air Cap Set - 2.0 mm $78.95 USD
Fuji Spray T-Model Air Cap Set, 2.5 mm.
T-Model Air Cap Set - 2.5 mm $78.95 USD

FAQ

Common Questions About the Mini-Mite Platinum System

The Mini-Mite Platinum pairs with several T-Model guns — the T70 bottom-feed, T75G gravity-feed, and G-XPC side-mounted gravity-feed — each suited to different work. See the HVLP Spray Gun Buying Guide to compare.

The Mini-Mite Platinum is Fuji's portable professional line — built for daily use in a smaller, lighter package. If you're spraying large volumes or need maximum output, the Q Platinum or D6 deliver more power. Compare all four systems in the HVLP Turbine Buying Guide.

Refurbished/Scratch & Dent units are fully functional Fuji systems with cosmetic imperfections or prior use, inspected and tested before resale, at a lower price — and covered by the same 2-year warranty as new units. Full details on our Warranty page.

Yes. Air caps are interchangeable, so you can size up or down for different coatings and viscosities without buying a new turbine. See the Air Cap Size Guide for recommended sizes — many shops keep a spare set on hand.

Every Mini-Mite Platinum system includes Fuji's 2-year warranty on parts and labor, and we handle the claim process directly. Contact us and we'll get you routed to the right place. Full details on the Warranty page.

Yes — shops outfitting a crew or buying two or more systems should contact us for a quote before ordering. Tax-exempt and resale orders welcome too. See For Shops & Pros for how we work with businesses.

Fuji Spray Mini-Mite 4 Platinum HVLP turbine.

What Mini-Mite Platinum Owners Say
