The Q Platinum pairs with several T-Model guns — the T70 bottom-feed, T75G gravity-feed, and G-XPC side-mounted gravity-feed — each suited to different work. See the HVLP Spray Gun Buying Guide to compare.

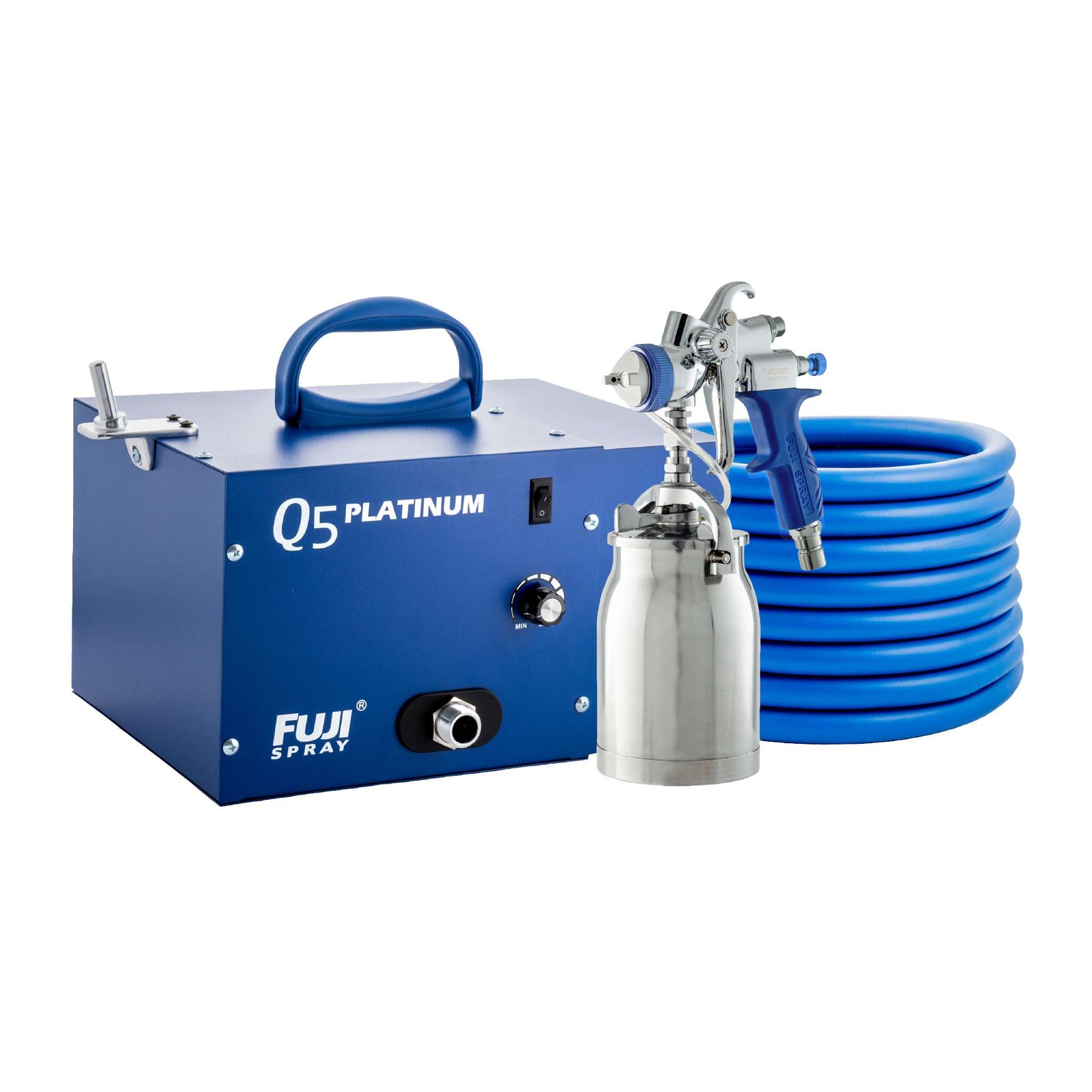

The Fuji Spray Q5 Platinum is the top-of-the-line HVLP system for professional finishers who demand maximum power, versatility, and control. It features a powerful 5-stage turbine generating up to 9.5 PSI, providing superior atomization for all types of coatings — from thin stains to heavy latex paints.
A Variable Speed Control Dial on the turbine lets you fine-tune motor speed for maximum atomization control and reduced overspray — the one feature that sets the Q5 apart from the Q4.

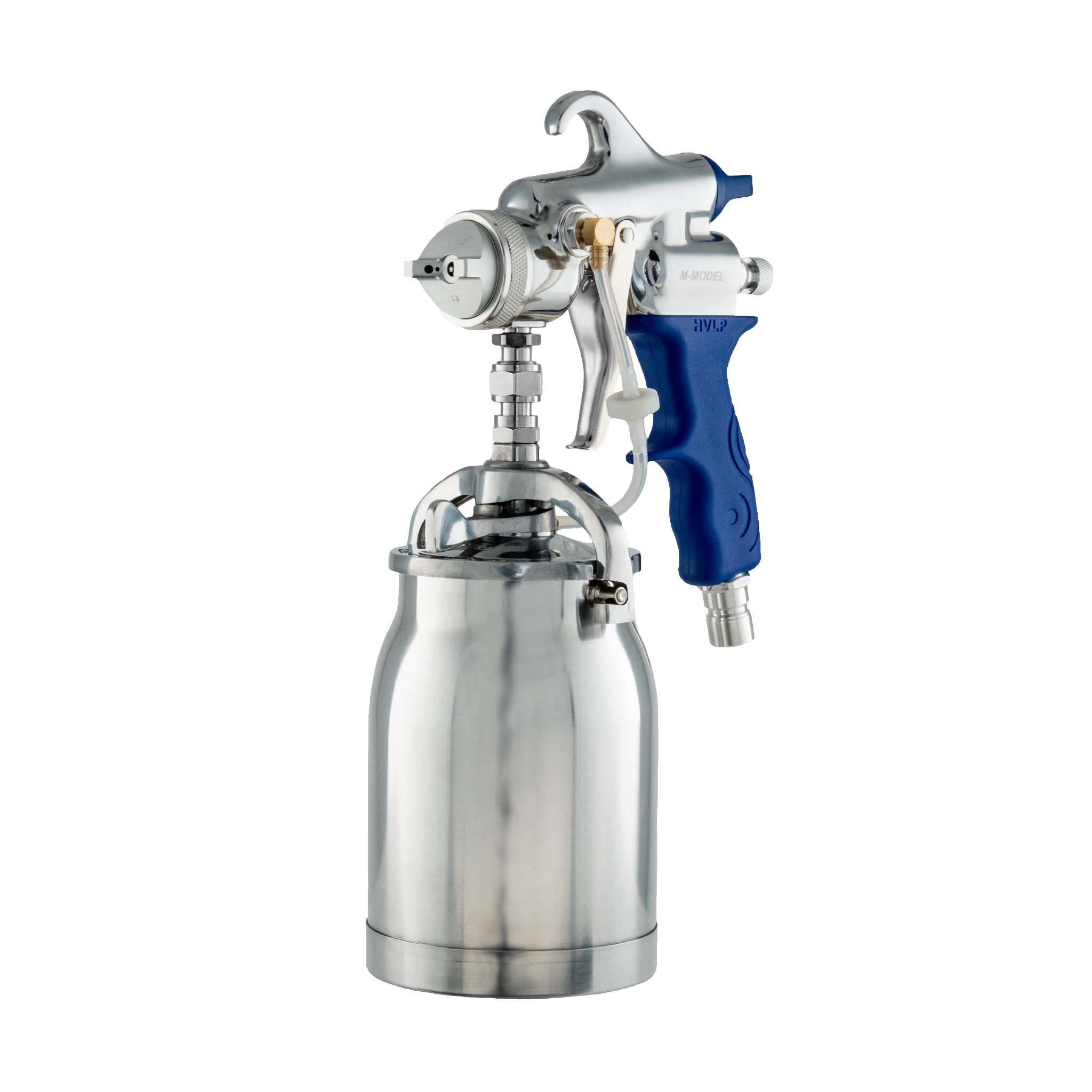

Paired with the rugged T-Model non-bleed spray gun and a 1-quart bottom feed pressure cup, this system is perfect for tackling larger projects with speed and precision. This unit comes with a 1.3 mm air cap set.

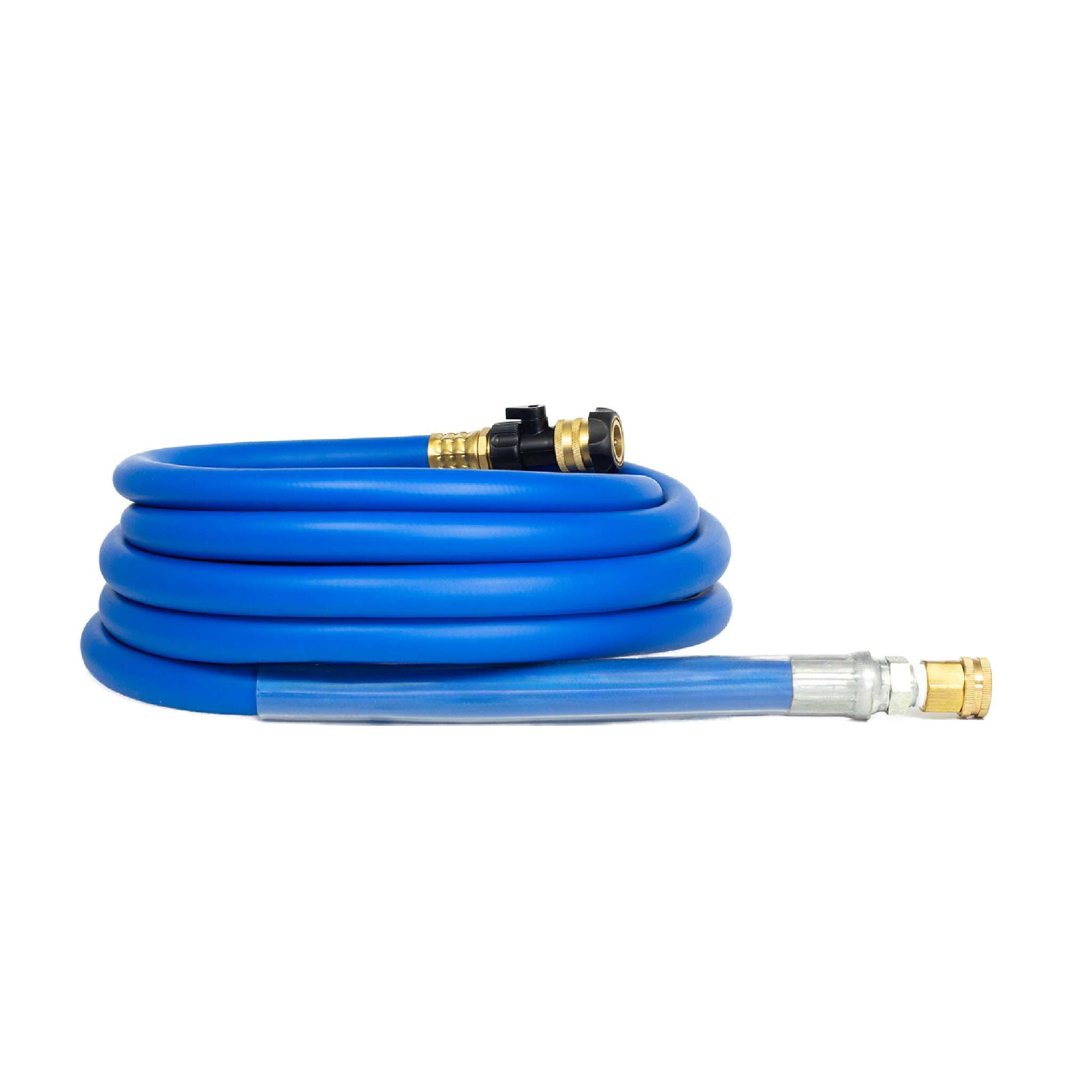

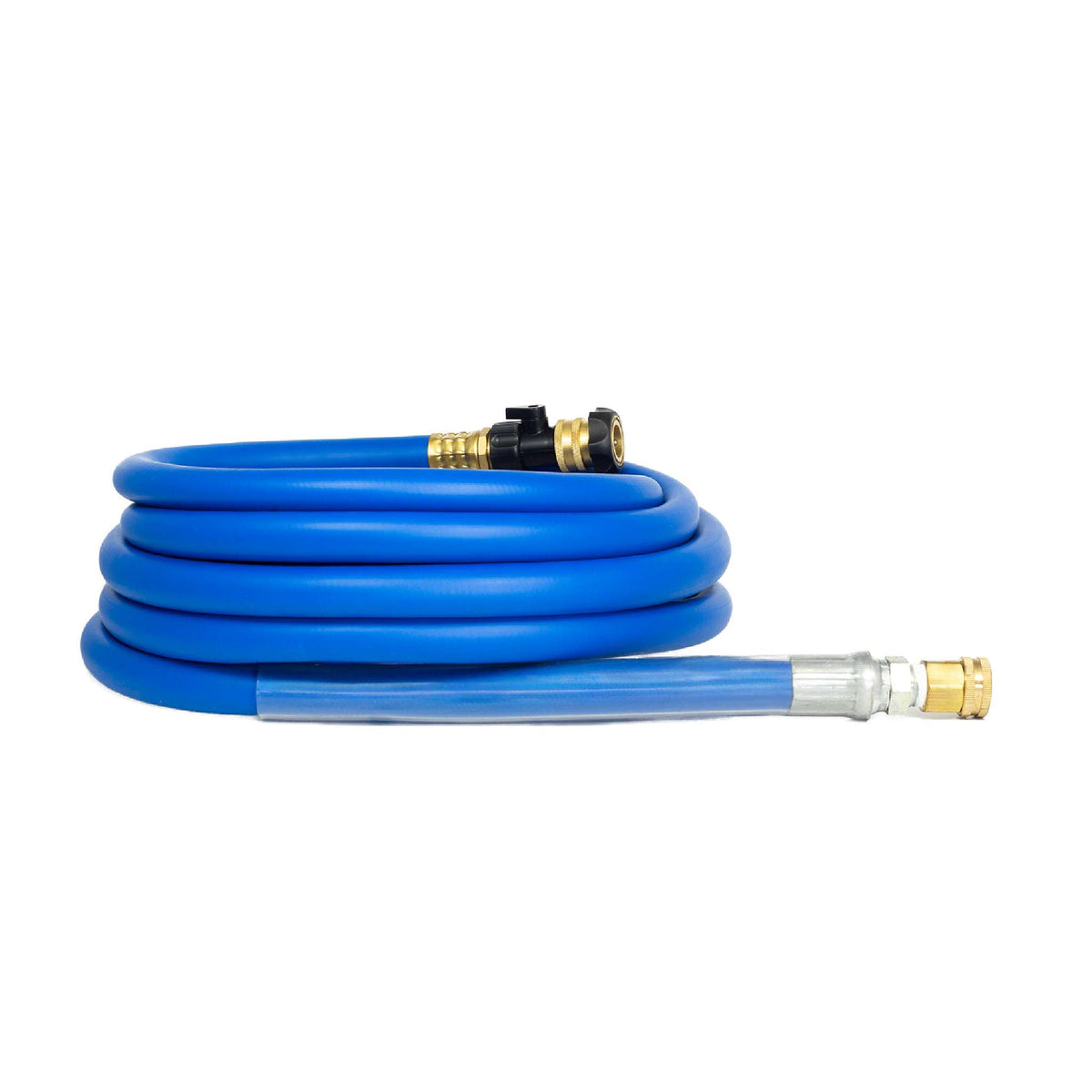

The 25-foot hose with quick-connect coupling and air control valve ensures flexibility during operation.
Additional features include Fuji’s U.S. Patented Noise Reduction Technology, Heat Dissipation Chamber, U.S. Patented side-mounted Fan Pattern Control, a detailed user manual, #4 Ford viscosity cup, wrench, cleaning brush.
Bonus Bundle Included
With your purchase, you’ll also receive a few essential extras: 19-piece spray gun cleaning kit, 6-foot flexible whip hose, wet film gauge, Always Measure booklet, and an air filter pack.
Most Fuji Spray products include a 2-year warranty on parts and labor.
📄 Q5 Platinum HVLP System with Bottom Feed Spray Gun Specification Sheet.
Key Features
Compatible Spray Guns
This turbine also pairs with:
What's in the Box
Consumables
| Turbine Motor | 5-Stage |
| PSI (Max) | 9.5 PSI |
| Power | 1600 W |
| Voltage | 110-120V |
| Filtration | 1-Stage |
| Turbine Dimensions | 14.87 x 11.50 x 9.00 in. |
| Turbine Weight | 24.06 lbs |
| Hose Length | 25 ft. Hi-Flex |
| Hose Inside Diameter | |
| Hose Connection (Turbine) | 3/4 in. GHT (Garden Hose Thread), Threaded |
| Hose Connection (Spray Gun) | Quick-Connect |
| Warranty | 2-Year on Parts and Labor |
Country of Origin
Designed and assembled in Canada.
