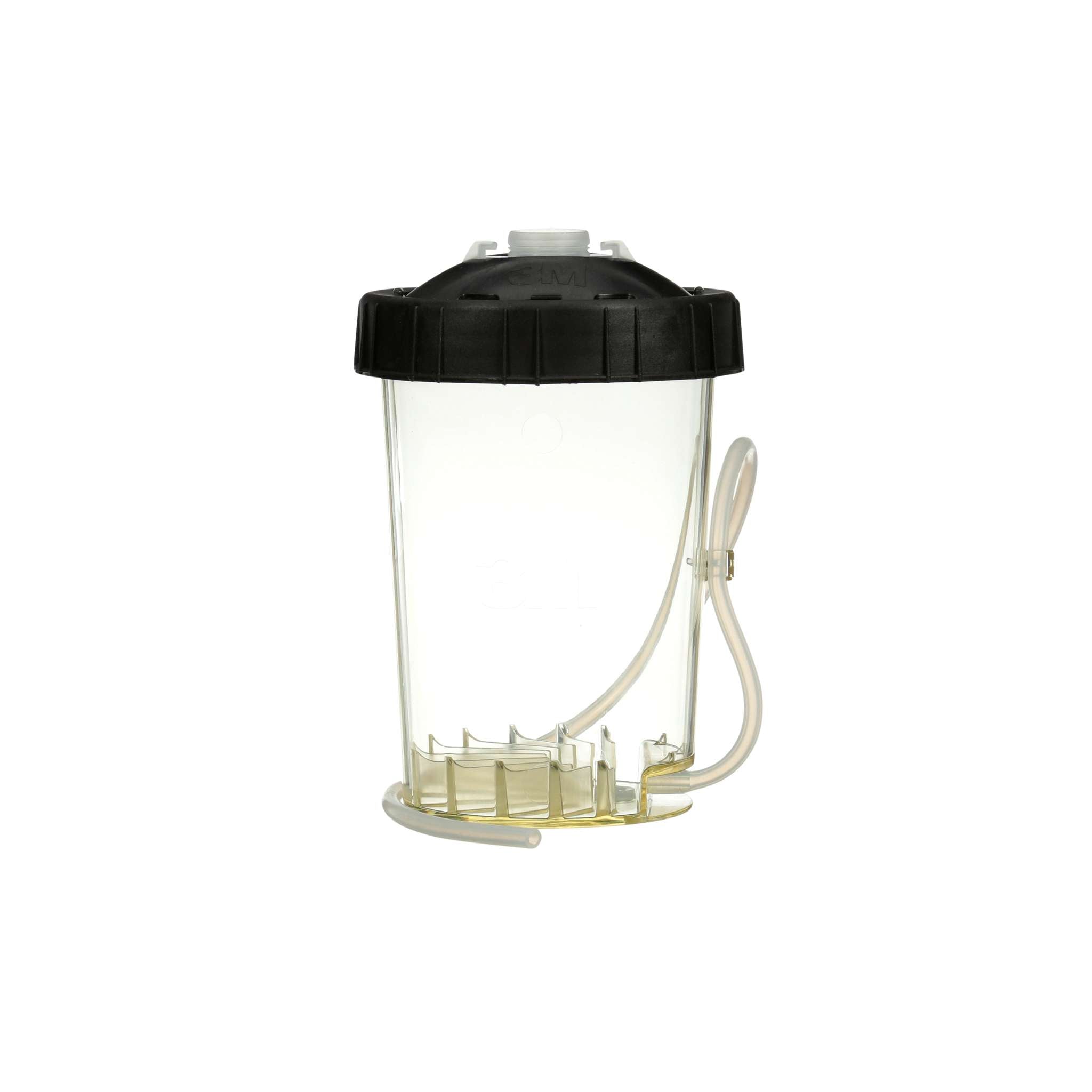

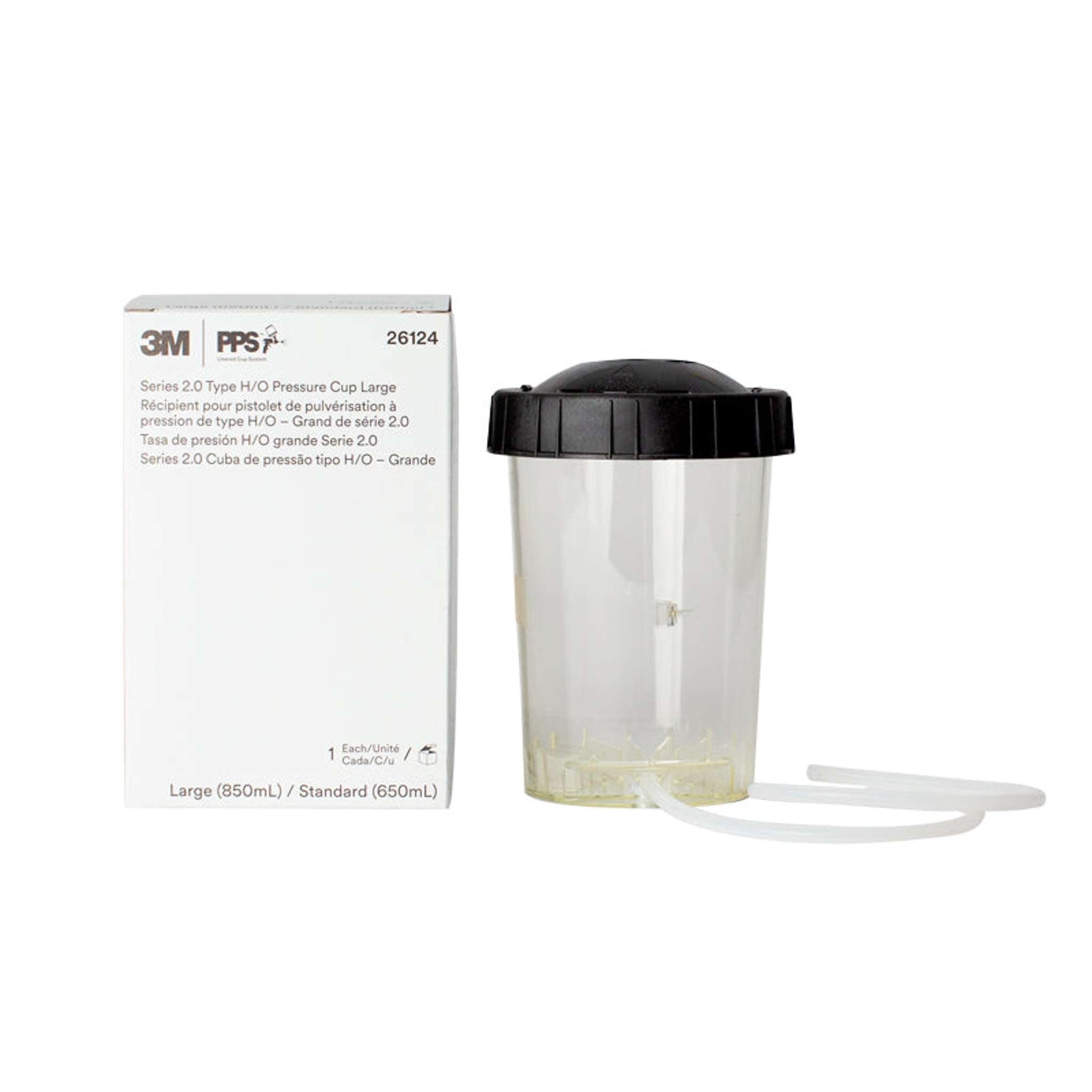

3M PPS 2.0 High Output CupLarge 850 ml, for HVLP Turbine Guns

Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.

Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.

On a Fuji turbine gun, yes — Fuji specifies a Midi or Large High Output cup. Its base takes the gun’s pressure tube, so the liner collapses as you spray and the gun works at any angle.

On a Fuji compressor gun, no. Use the standard hard cup from a Mini, Midi or Large Cup Kit.

Because of the black locking ring on the lid. Pop it off, put the liner in the H/O cup, set the lid on, and screw the H/O cup’s retaining collar down over it. The ring is only for the standard hard cup.

Fuji’s 51-second video shows it.

Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and one reusable hard cup.

Refills: Standard/Large lids and Midi/Mini/Micro lids in 25-packs, and Large liners in a 100-pack. Midi and Mini liners come in their Cup Kits.

Standard/Large lids fit the 650 ml Standard and 850 ml Large liners. Midi/Mini/Micro lids fit the 400 ml Midi, 200 ml Mini and 90 ml Micro liners.

The Large H/O cup takes Standard and Large liners; the Midi H/O cup takes Micro, Mini and Midi.

No. On the G-XPC’s side-mounted position the 28 oz Large cup hits the trigger, so use the Midi.

Leave it in the liner: push a sealing plug into the lid and store the cup upside down, so the filter stays wet and doesn’t dry out.
