Which adapter fits my Fuji spray gun?

Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.

Do I need the High Output cup?

On a Fuji turbine gun, yes — Fuji specifies a Midi or Large High Output cup. Its base takes the gun’s pressure tube, so the liner collapses as you spray and the gun works at any angle.On a Fuji compressor gun, no. Use the standard hard cup from a Mini, Midi or Large Cup Kit.

Why won’t the lid fit my High Output cup?

Because of the black locking ring on the lid. Pop it off, put the liner in the H/O cup, set the lid on, and screw the H/O cup’s retaining collar down over it. The ring is only for the standard hard cup.Fuji’s 51-second video shows it.

What’s in a Cup Kit, and what do I buy when it runs out?

Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and one reusable hard cup.Refills: Standard/Large lids and Midi/Mini/Micro lids in 25-packs, and Large liners in a 100-pack. Midi and Mini liners come in their Cup Kits.

Which liners and lids go together?

Standard/Large lids fit the 650 ml Standard and 850 ml Large liners. Midi/Mini/Micro lids fit the 400 ml Midi, 200 ml Mini and 90 ml Micro liners.The Large H/O cup takes Standard and Large liners; the Midi H/O cup takes Micro, Mini and Midi.

Does the Large cup fit the G-XPC?

No. On the G-XPC’s side-mounted position the 28 oz Large cup hits the trigger, so use the Midi.

How do I store leftover paint?

Leave it in the liner: push a sealing plug into the lid and store the cup upside down, so the filter stays wet and doesn’t dry out.

Free Ground Shipping Over $100 (Lower 48). In-stock orders ship in 1–3 business days from Grand Rapids, MI — other items direct from Fuji Spray.

3M PPS 2.0 Cup Kit - Large 850 ml, 50 Lids & Liners

3M PPS 2.0 Cup KitLarge 850 ml, 50 Lids & Liners

SKU: MMM26024

$198.95 USD

Ships from Fuji Spray. Allow a few extra business days.

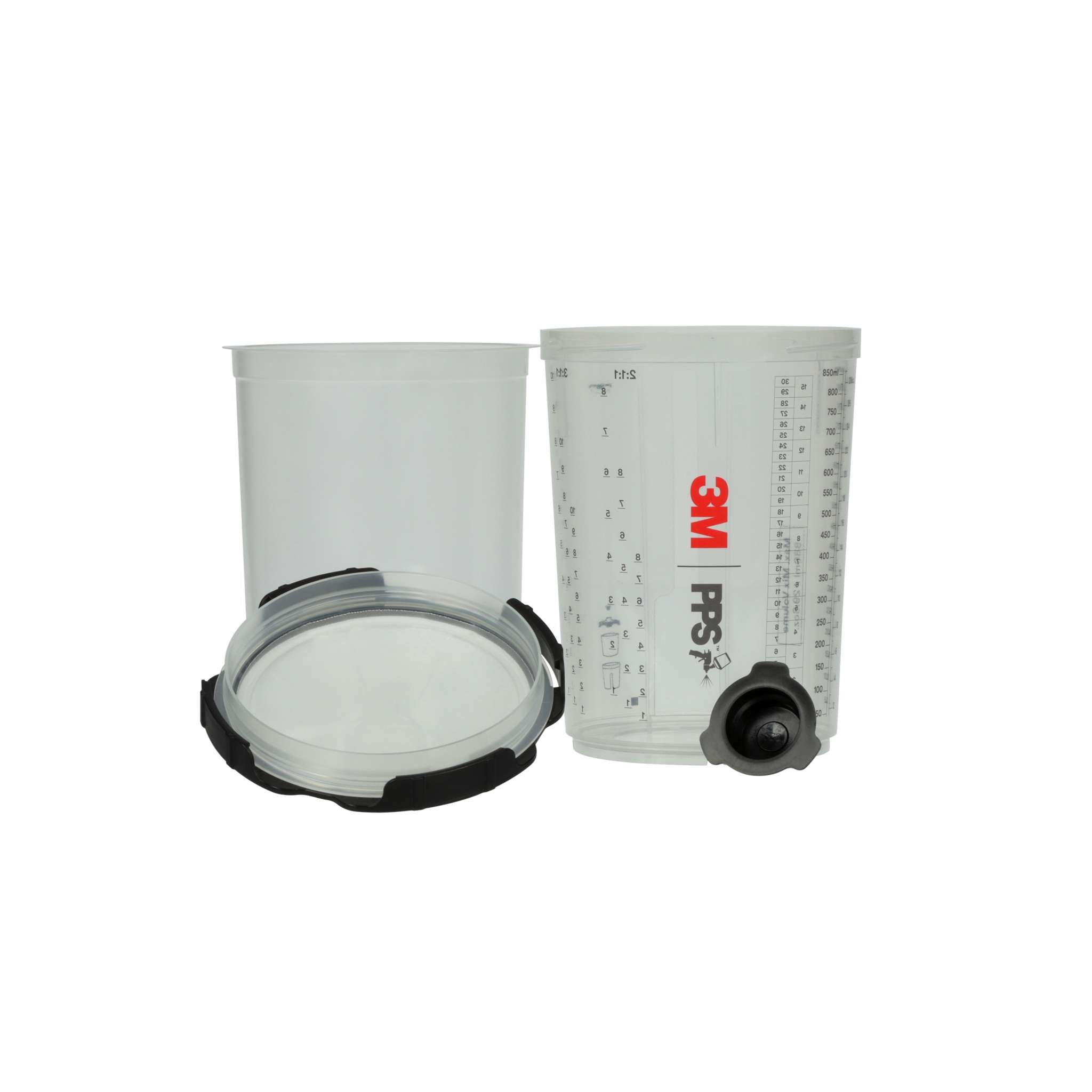

Everything that goes in a 3M PPS 2.0 cup, 50 times over: 50 disposable Large liners (850 ml, 28 fl oz), 50 lids with a built-in 200 micron filter, 32 sealing plugs and one reusable hard cup. Mix right in the liner, since the ratios are printed on the cup. The paint is strained on its way to the gun, and there is no cup to clean afterwards.

Leftover paint keeps in the liner: push a sealing plug into the lid and store it upside down, so the filter stays wet.

On a Fuji compressor gun this kit is the whole cup system. Add the adapter for your gun: S15 for the MP-V8, H-V8 and VALOR H100/M100, S27 for the VALOR Mini H50, or S2 for the LX-20 and MPX-30 gravity guns and the PRIMIS P30. Fuji’s how-to shows the install on a V8.

On a Fuji turbine gun, Fuji specifies the High Output cup in place of this hard cup, and its quick-start guide points to this kit for the lids and liners. They go inside the Large H/O cup, with the black ring popped off each lid.

Full Specifications

Key Features

Large size: 850 ml (28 fl oz) per liner
Lids have a 200 micron filter built in, so the paint needs no separate straining
Mixing ratios printed on the hard cup
Sealing plugs cap a lid to store leftover paint in the liner
Sprays at any angle as the liner collapses

Compatible Spray Guns

Fuji compressor guns, with the adapter for the gun:

On Fuji turbine guns, use the lids and liners inside the Large H/O cup.

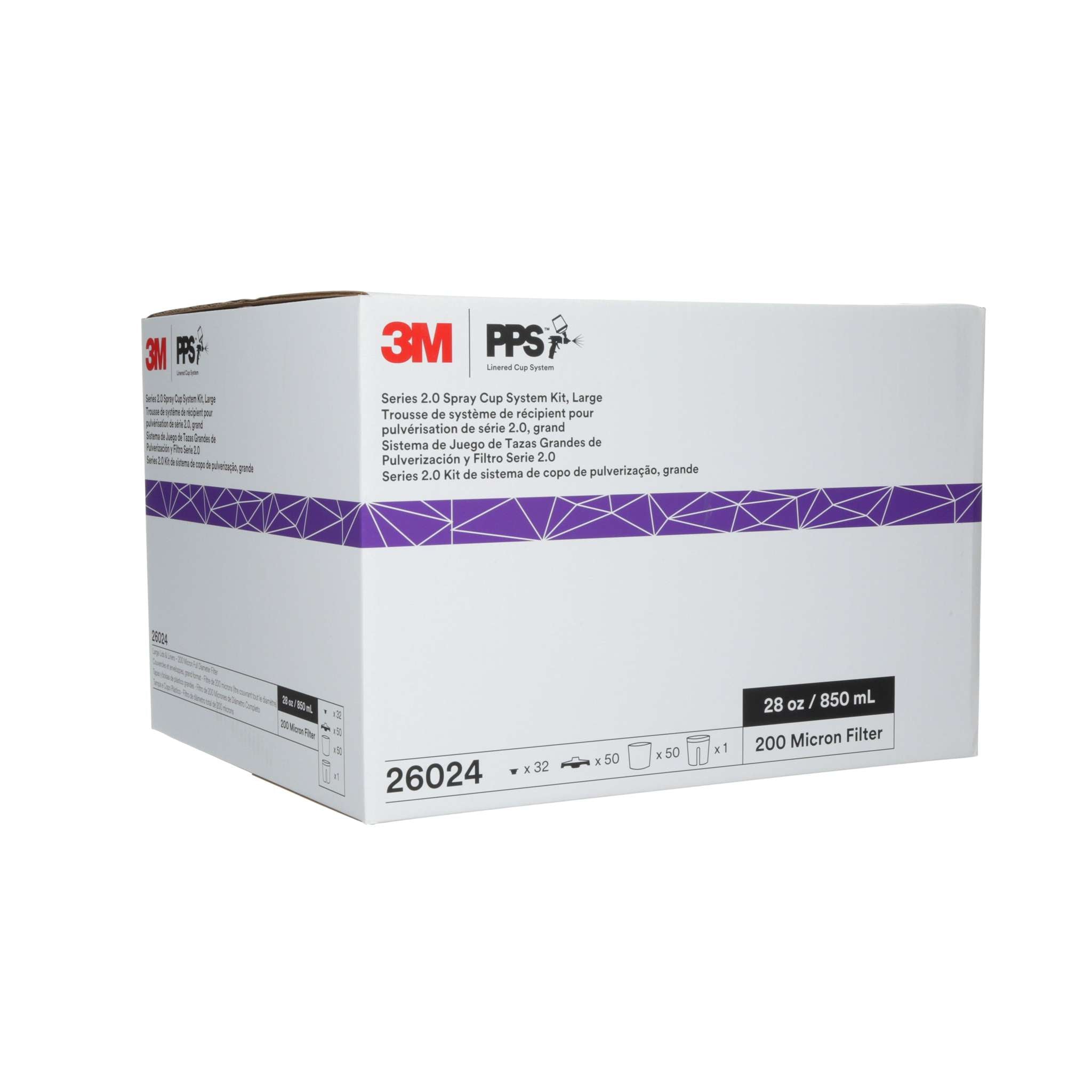

What's in the Box

50 Large disposable liners
50 Standard/Large lids with 200 micron filters
32 sealing plugs
1 reusable Large hard cup

Consumables

Technical Data

Brand	3M
System	PPS Series 2.0
Size	Large
Liner Capacity	850 ml (28 fl oz)
Filter	200 micron
Lid Size	Standard/Large
Contents	50 liners, 50 lids, 32 sealing plugs, 1 hard cup
Liner Material	Low-density polyethylene (LDPE)
Lid Material	Polypropylene
Filter Material	Nylon 6
3M Part Number	26024

FAQ

: Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.
Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.
: On a Fuji turbine gun, yes — Fuji specifies a Midi or Large High Output cup. Its base takes the gun’s pressure tube, so the liner collapses as you spray and the gun works at any angle.
On a Fuji compressor gun, no. Use the standard hard cup from a Mini, Midi or Large Cup Kit.
: Because of the black locking ring on the lid. Pop it off, put the liner in the H/O cup, set the lid on, and screw the H/O cup’s retaining collar down over it. The ring is only for the standard hard cup.
Fuji’s 51-second video shows it.
: Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and one reusable hard cup.
Refills: Standard/Large lids and Midi/Mini/Micro lids in 25-packs, and Large liners in a 100-pack. Midi and Mini liners come in their Cup Kits.
: Standard/Large lids fit the 650 ml Standard and 850 ml Large liners. Midi/Mini/Micro lids fit the 400 ml Midi, 200 ml Mini and 90 ml Micro liners.
The Large H/O cup takes Standard and Large liners; the Midi H/O cup takes Micro, Mini and Midi.
: No. On the G-XPC’s side-mounted position the 28 oz Large cup hits the trigger, so use the Midi.
: Leave it in the liner: push a sealing plug into the lid and store the cup upside down, so the filter stays wet and doesn’t dry out.
