Which adapter fits my Fuji spray gun?

Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.

Do I need the High Output cup?

On a Fuji turbine gun, yes — Fuji specifies a Midi or Large High Output cup. Its base takes the gun’s pressure tube, so the liner collapses as you spray and the gun works at any angle.On a Fuji compressor gun, no. Use the standard hard cup from a Mini, Midi or Large Cup Kit.

Why won’t the lid fit my High Output cup?

Because of the black locking ring on the lid. Pop it off, put the liner in the H/O cup, set the lid on, and screw the H/O cup’s retaining collar down over it. The ring is only for the standard hard cup.Fuji’s 51-second video shows it.

What’s in a Cup Kit, and what do I buy when it runs out?

Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and one reusable hard cup.Refills: Standard/Large lids and Midi/Mini/Micro lids in 25-packs, and Large liners in a 100-pack. Midi and Mini liners come in their Cup Kits.

Which liners and lids go together?

Standard/Large lids fit the 650 ml Standard and 850 ml Large liners. Midi/Mini/Micro lids fit the 400 ml Midi, 200 ml Mini and 90 ml Micro liners.The Large H/O cup takes Standard and Large liners; the Midi H/O cup takes Micro, Mini and Midi.

Does the Large cup fit the G-XPC?

No. On the G-XPC’s side-mounted position the 28 oz Large cup hits the trigger, so use the Midi.

How do I store leftover paint?

Leave it in the liner: push a sealing plug into the lid and store the cup upside down, so the filter stays wet and doesn’t dry out.

Free Ground Shipping Over $100 (Lower 48). In-stock orders ship in 1–3 business days from Grand Rapids, MI — other items direct from Fuji Spray.

3M PPS 2.0 Adapter S15Fuji MP-V8, H-V8 & VALOR H100/M100

SKU: MMM26046

$36.95 USD

Ships from Fuji Spray. Allow a few extra business days.

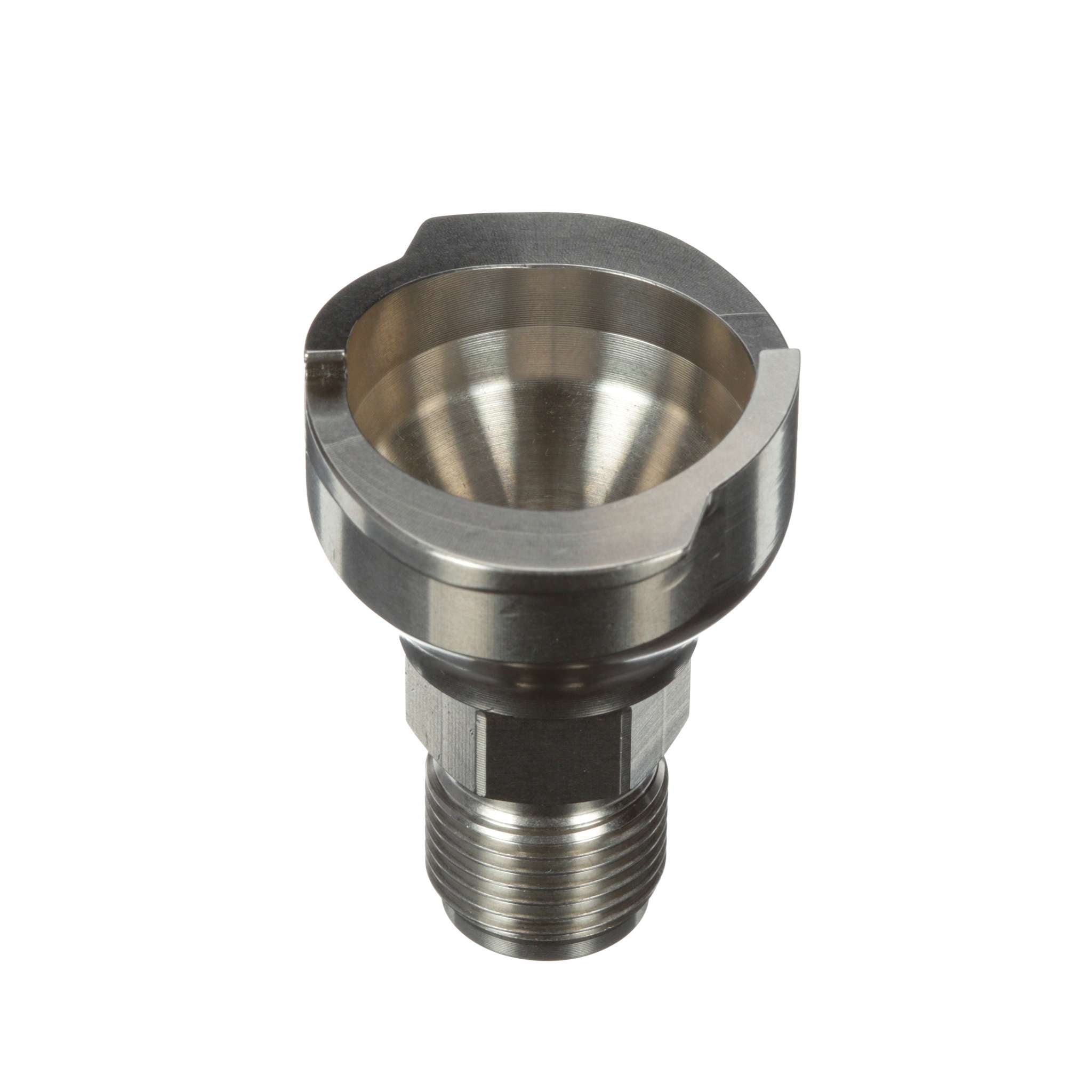

The 3M PPS 2.0 S15 adapter fits the Fuji Spray MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100, so the gun takes 3M's disposable PPS 2.0 cups: mix in a liner, spray, throw the liner away, with no cup to clean. It is stainless steel and stays on the gun; each cup locks onto it with a push and a quarter turn.

It threads into the fluid coupler in place of the gun's cup: remove the cup, thread the adapter in by hand, and snug it with the wrench. Fuji's how-to on a V8 shows the install.

On a Fuji compressor gun the adapter takes the standard PPS 2.0 hard cup from a Mini, Midi or Large Cup Kit, with no H/O cup needed. Drop a liner into the cup, lid it, then push the gun onto the lid and give it a quarter turn.

Full Specifications

Key Features

Stainless steel, with four points of connection between the lid and the gun
Marked S15 on the body
Stays on the gun: cups lock on and off with a quarter turn
Fits every PPS 2.0 lid and cup, from the 90 ml Micro to the 850 ml Large

Compatible Spray Guns

MP-V8 (compressor)
MP-V8 STEALTH (compressor)
H-V8 (compressor)
VALOR M100 (compressor)
VALOR H100 (compressor)

The cup it takes:

On compressor guns: the hard cup from a Mini, Midi or Large Cup Kit

What's in the Box

One 3M PPS 2.0 S15 adapter

Consumables

Large, Midi and Mini Cup Kits: 50 lids and liners each
Standard/Large lids and Midi/Mini/Micro lids, 25 packs
Large liners, 100 pack

Technical Data

Brand	3M
System	PPS Series 2.0
Adapter	S15
3M Part Number	26046
Thread	3/8 in male, 19 threads per inch BSP
Material	Stainless steel

FAQ

: Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.
Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.
: On a Fuji turbine gun, yes — Fuji specifies a Midi or Large High Output cup. Its base takes the gun’s pressure tube, so the liner collapses as you spray and the gun works at any angle.
On a Fuji compressor gun, no. Use the standard hard cup from a Mini, Midi or Large Cup Kit.
: Because of the black locking ring on the lid. Pop it off, put the liner in the H/O cup, set the lid on, and screw the H/O cup’s retaining collar down over it. The ring is only for the standard hard cup.
Fuji’s 51-second video shows it.
: Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and one reusable hard cup.
Refills: Standard/Large lids and Midi/Mini/Micro lids in 25-packs, and Large liners in a 100-pack. Midi and Mini liners come in their Cup Kits.
: Standard/Large lids fit the 650 ml Standard and 850 ml Large liners. Midi/Mini/Micro lids fit the 400 ml Midi, 200 ml Mini and 90 ml Micro liners.
The Large H/O cup takes Standard and Large liners; the Midi H/O cup takes Micro, Mini and Midi.
: No. On the G-XPC’s side-mounted position the 28 oz Large cup hits the trigger, so use the Midi.
: Leave it in the liner: push a sealing plug into the lid and store the cup upside down, so the filter stays wet and doesn’t dry out.
