PPS 2.0 Lids & Collars - Midi to Micro

Q: Which adapter fits my Fuji spray gun?

Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.

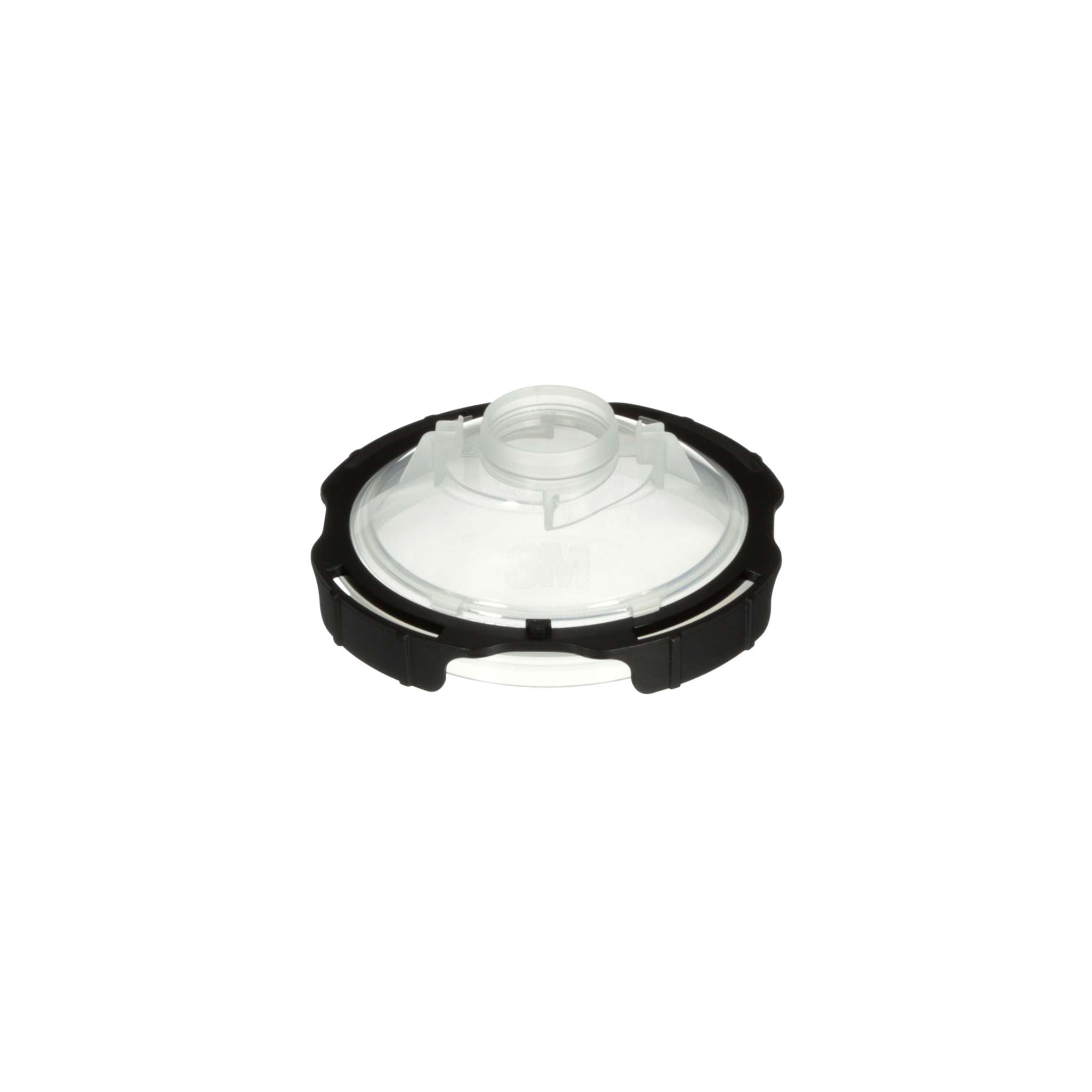

Twenty-five 3M PPS 2.0 lids for Midi (400 ml), Mini (200 ml) and Micro (90 ml) liners. Each has a 200 micron filter built in, so the paint is strained as it leaves the liner, and a black locking ring that fastens the lid to a standard hard cup with a quarter turn.

A Cup Kit carries lids and liners in pairs, but liners-only packs carry no lids. This pack is the lids on their own, without buying another Midi Cup Kit.

Using a Midi H/O cup on a turbine gun? Pop the black ring off each lid first: the H/O cup's retaining collar holds the lid instead.

3M PPS 2.0 on Fuji Spray Guns

Which adapter fits my Fuji spray gun?

Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.

Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.

Do I need the High Output cup?

On a Fuji turbine gun, yes — Fuji specifies a Midi or Large High Output cup. Its base takes the gun’s pressure tube, so the liner collapses as you spray and the gun works at any angle.

On a Fuji compressor gun, no. Use the standard hard cup from a Mini, Midi or Large Cup Kit.

Why won’t the lid fit my High Output cup?

Because of the black locking ring on the lid. Pop it off, put the liner in the H/O cup, set the lid on, and screw the H/O cup’s retaining collar down over it. The ring is only for the standard hard cup.

Fuji’s 51-second video shows it.

What’s in a Cup Kit, and what do I buy when it runs out?

Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and one reusable hard cup.

Refills: Standard/Large lids and Midi/Mini/Micro lids in 25-packs, and Large liners in a 100-pack. Midi and Mini liners come in their Cup Kits.

Which liners and lids go together?

Standard/Large lids fit the 650 ml Standard and 850 ml Large liners. Midi/Mini/Micro lids fit the 400 ml Midi, 200 ml Mini and 90 ml Micro liners.

The Large H/O cup takes Standard and Large liners; the Midi H/O cup takes Micro, Mini and Midi.

Does the Large cup fit the G-XPC?

No. On the G-XPC’s side-mounted position the 28 oz Large cup hits the trigger, so use the Midi.

How do I store leftover paint?

Leave it in the liner: push a sealing plug into the lid and store the cup upside down, so the filter stays wet and doesn’t dry out.

Authorized Dealer

We’re proud to be an Authorized Dealer of Fuji Spray, a brand trusted by woodworkers, cabinet makers, automotive refinishers, and artisans worldwide. When you choose Fuji Spray, you’re choosing innovation, reliability, and a beautiful finish — and when you choose Spray System Store, we are ready to back you up every step of the way.

Brand	3M
System	PPS Series 2.0
Lid Size	Midi/Mini/Micro
Fits Liners	Midi (400 ml), Mini (200 ml) and Micro (90 ml)
Filter	200 micron
Lid Material	Polypropylene
Filter Material	Nylon 6
Pack Size	25 lids
3M Part Number	26204
