What air compressor do I need for the VALOR Mini H50?

One that keeps up with 4.9 CFM at 9–25 PSI continuously. It’s a compressor gun: run it on shop air, not a Fuji turbine.

Which air cap sets fit the VALOR Mini H50?

Every VALOR Mini H50 air cap set: 0.8, 1.0 and 1.2 mm. It ships with 1.0 mm.

Which cup comes with the VALOR Mini H50?

It ships with a 200 cc nylon gravity cup.

Can I use 3M PPS disposable cups on the VALOR Mini H50?

Yes, with the S27 adapter and a Mini, Midi or Large Cup Kit. No High Output cup: the standard hard cup goes straight on.

Free Ground Shipping Over $100 (Lower 48). In-stock orders ship in 1–3 business days from Grand Rapids, MI — other items direct from Fuji Spray.

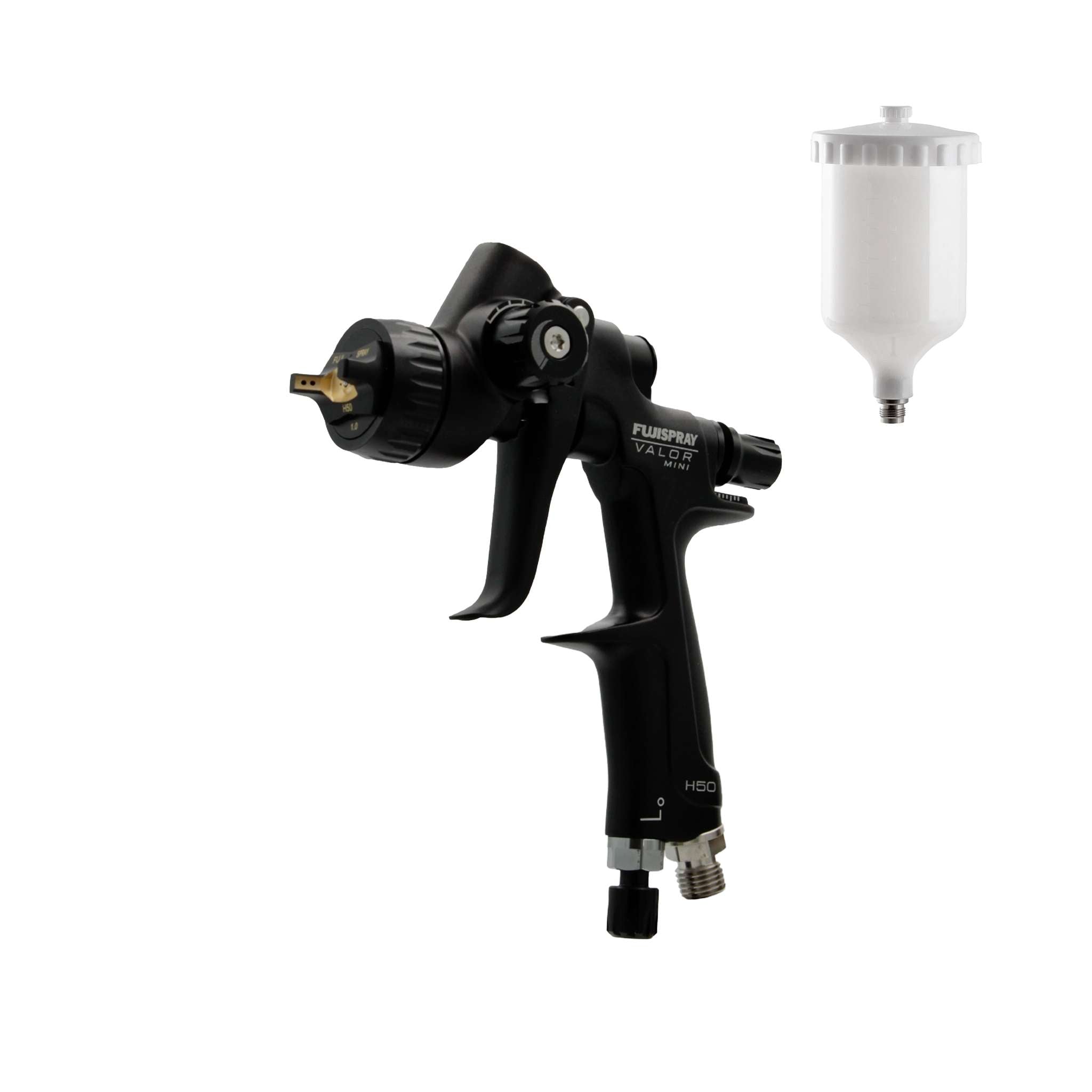

Fuji Spray VALOR Mini H50 gravity-feed spray gun in matte black, shown beside its 200cc nylon cup rather than with the cup mounted.

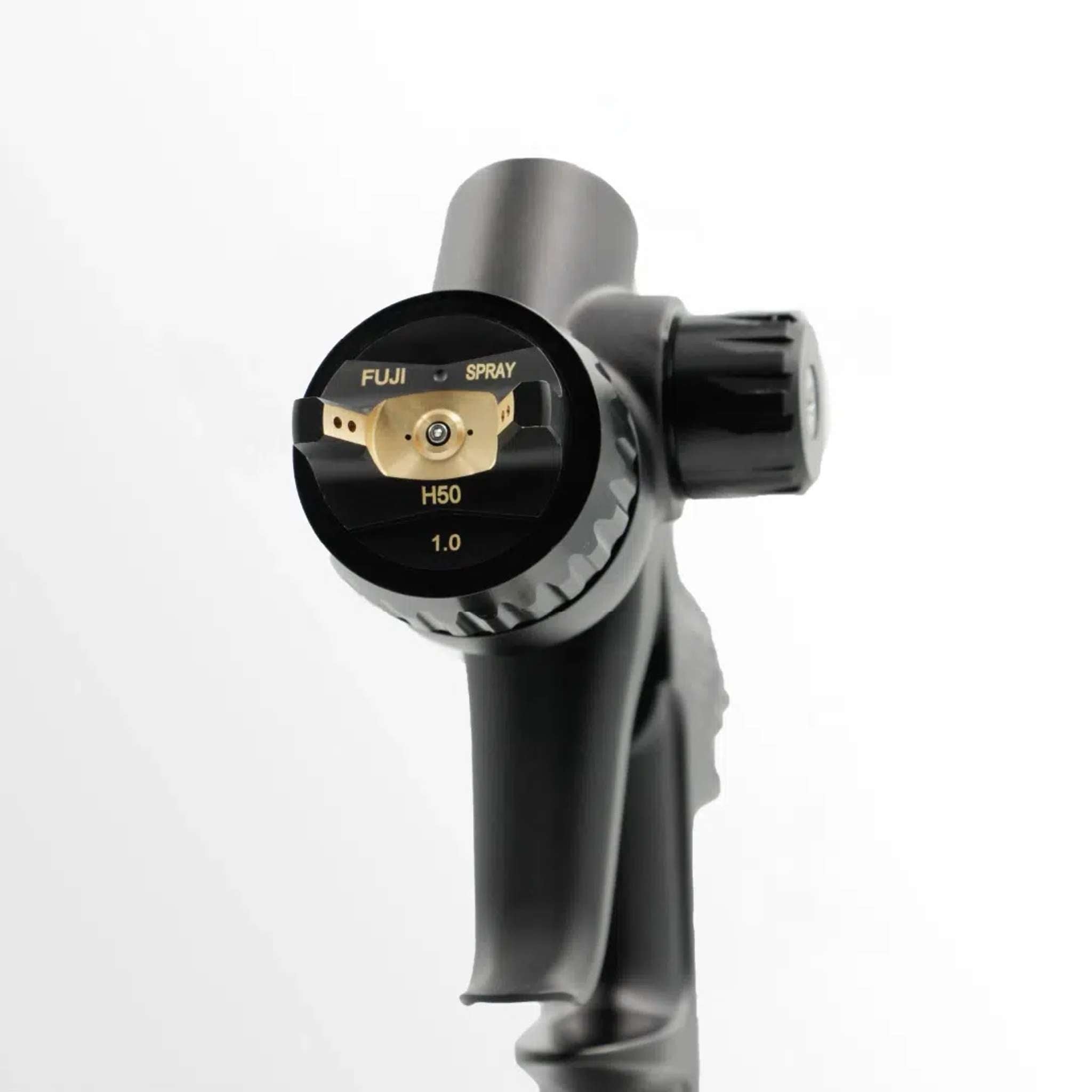

Close-up of the VALOR Mini H50 air cap face, marked FUJI SPRAY H50 1.0.

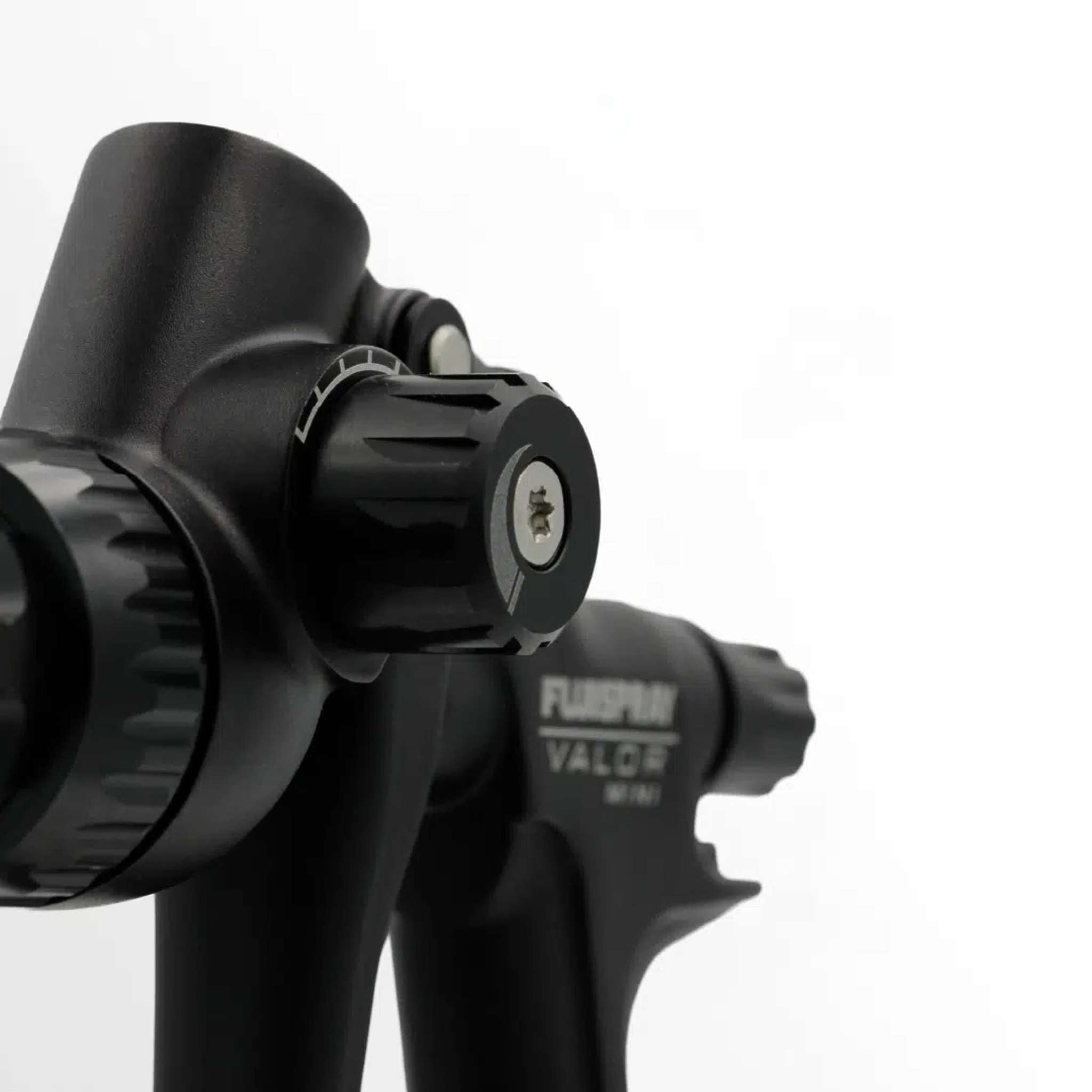

Close-up of the VALOR Mini H50 side-mounted fan pattern control knob.

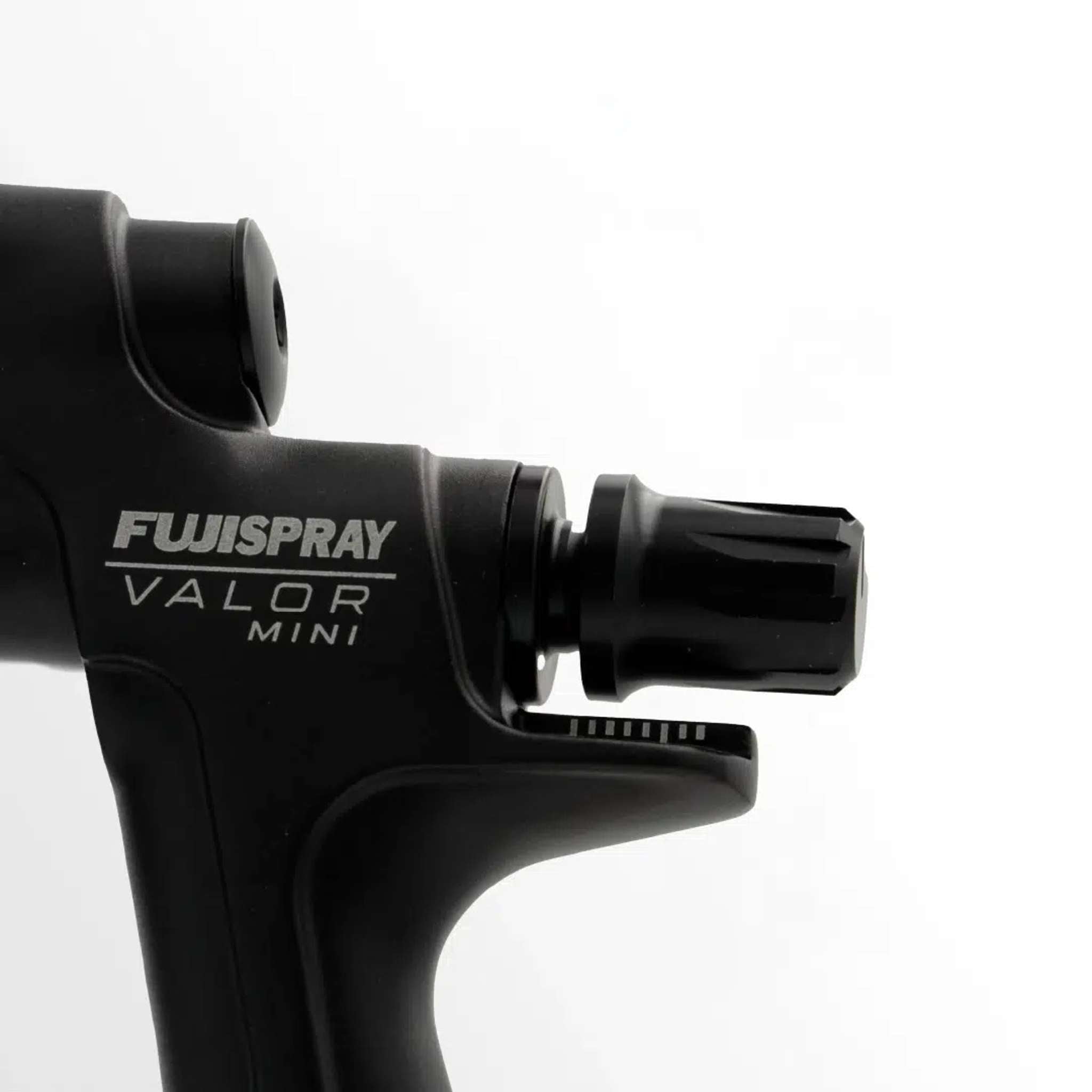

Close-up of the FUJISPRAY VALOR MINI marking on the gun body.

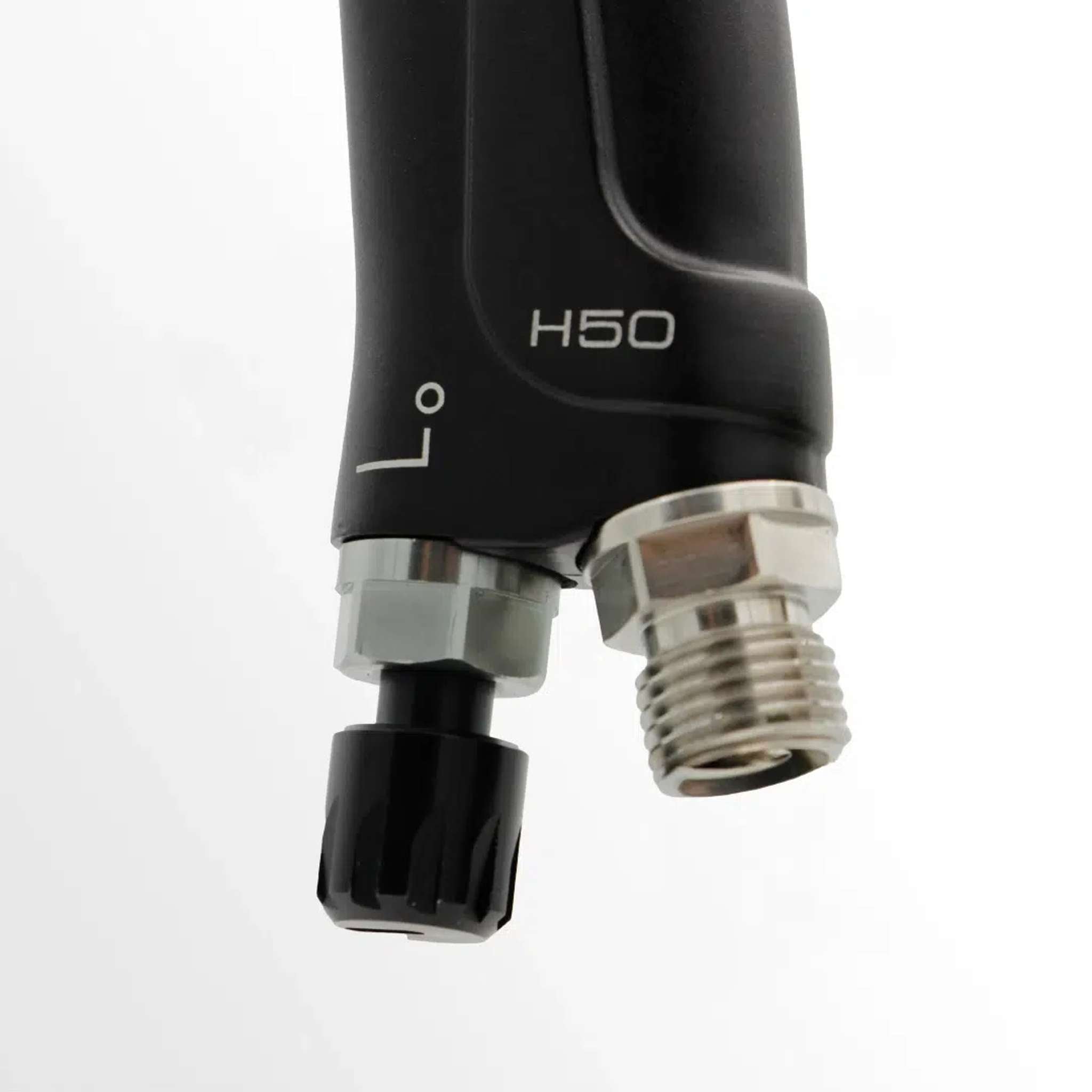

Close-up of the H50 marking and the air inlet fitting at the base of the handle.

Fuji Spray marketing graphic for the VALOR Mini H50: “Engineered for excellence, built for professionals,” gun held in a gloved hand for spot repair work.

Fuji Spray VALOR Mini H50 graphic, “Precision that delivers flawless results”: 1.0 mm air cap set, tip sizes 0.8 to 1.2 mm, 9 to 25 psi, 260 mm maximum fan width, 337 g.

Fuji Spray VALOR Mini H50 graphic, “Keep your workflow moving”: easy-clean fluid passages, fewer internal components, designed for minimal downtime.

Fuji Spray VALOR Mini H50 graphic, “Professional results for detailed repairs”: spot repairs, blends and localized refinishing, intuitive controls, 200cc nylon cup included.

Fuji Spray VALOR Mini H50 graphic, “Quick and simple to maintain”: easy-clean fluid passages, anodized aluminum construction, designed for minimal downtime.

VALOR Mini H50Gravity Feed, 200cc Nylon Cup1.0 mm Air Cap Set

SKU: 0277H

$399.00 USD

Ships from Fuji Spray. Allow a few extra business days.

The Fuji Spray VALOR Mini H50 brings the VALOR Series’ precision and control to spot-repair work, in a compact 200cc nylon cup configuration sized for smaller jobs and tight spaces. An anodized aluminum body keeps it light at 337 g, and side-mounted fan pattern control produces up to a 260 mm fan at 9–25 PSI — precise enough for blends and localized refinishing, simple enough for any skill level. Fewer internal components and easy-clean fluid passages mean quick color changes and minimal downtime.

Ships with the 1.0 mm air cap set installed; 0.8 mm and 1.2 mm are also available to match the job.

To use this gun with the 3M Paint Preparation System (PPS) 2.0, you'll need the S27 Adapter (#MMM26119), sold separately. Compressor guns take 3M's standard PPS 2.0 cup straight off the fluid coupler. Fuji’s own how-to shows the same adapter-and-cup install on a V8; the Mini H50 threads on the same way.

3M PPS 2.0 · fits this gun

Run disposable cups on this gun

This gun takes the S27 adapter (MMM26119) and the standard PPS 2.0 hard cup from a Cup Kit. No High Output cup is needed on a compressor gun.

Choose your cup size

Parts of the 3M PPS 2.0 Mini Cup Kit: a disposable liner, the reusable hard cup, a lid and a sealing plug.

Mini 200 ml, 50 Lids & Liners $159.95 View kit

Parts of the 3M PPS 2.0 Midi Cup Kit: a disposable liner, the reusable hard cup, a lid and a sealing plug.

Midi 400 ml, 50 Lids & Liners $164.95 View kit

Parts of the 3M PPS 2.0 Large Cup Kit: a disposable liner, the reusable hard cup, a lid and a sealing plug.

Large 850 ml, 50 Lids & Liners $198.95 View kit

Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and the hard cup. The adapter is sold separately.

3M PPS 2.0 S27 adapter in stainless steel, marked S27, with its male threaded end.

You'll also need the adapter 3M PPS 2.0 Adapter S27 - Fuji VALOR Mini H50 $36.95 View adapter

Fitting tip: drop a liner into the hard cup, lid it, then push the gun onto the lid and give it a quarter turn. Watch Fuji's install video

Buy the parts on their own

Running low on liners? Refills

Full Specifications

Key Features

Compact VALOR Series gun built for spot repair, blends and panel work in tight spaces
Lightweight forged aluminum body — 337 g without the cup
Side-mounted fan pattern control with clear markings, the VALOR family control layout
HVLP atomization at low inlet pressure for high transfer efficiency and less overspray
200cc gravity cup sized for small jobs, so less material is mixed and less is wasted
Three air cap sizes available — 0.8 mm, 1.0 mm and 1.2 mm — with 1.0 mm as standard
Fewer internal components for quick cleaning between colors
Works with the 3M PPS 2.0 disposable cup system using the S27 adapter (3M part 26119) — mix, spray and throw the liner away instead of cleaning a cup

Compatible Air Cap Sets

This gun also takes:

What's in the Box

VALOR Mini H50 spray gun
200cc nylon gravity cup
1.0 mm air cap set, installed

Consumables

Air cap sets — wear items, replaced as the tip and needle wear

Technical Data

Gun Type	HVLP
Feed Type	Gravity Feed
Air Source	Compressor
Standard Air Cap Set	1.0 mm
Available Air Cap Sets	0.8 mm, 1.0 mm, 1.2 mm
Air Supply Pressure	9–25 PSI at gun inlet
Air Consumption	4.9 CFM
Cup	200 cc Nylon, Gravity
Gun Weight (Without Cup)	337 g (0.74 lbs)
3M PPS 2.0 Adapter	S27 (3M part 26119)

Country of Origin

Designed and assembled in Canada.

VALOR Mini H50 Air Cap Sets

Fuji VALOR Mini H50 0.8 mm air cap set — needle, fluid nozzle and air cap laid out on white, each marked 0.8.

0.8 mmVALOR Mini H50 Air Cap Set $69.90 USD

Fuji VALOR Mini H50 1.0 mm air cap set — needle, fluid nozzle and air cap laid out on white, each marked 1.0.

1.0 mmVALOR Mini H50 Air Cap Set $69.90 USD

Fuji VALOR Mini H50 1.2 mm air cap set — needle, fluid nozzle and air cap laid out on white, each marked 1.2.

1.2 mmVALOR Mini H50 Air Cap Set $69.90 USD

FAQ

: One that keeps up with 4.9 CFM at 9–25 PSI continuously. It’s a compressor gun: run it on shop air, not a Fuji turbine.
: Every VALOR Mini H50 air cap set: 0.8, 1.0 and 1.2 mm. It ships with 1.0 mm.
: It ships with a 200 cc nylon gravity cup.
: Yes, with the S27 adapter and a Mini, Midi or Large Cup Kit. No High Output cup: the standard hard cup goes straight on.
