One that keeps up with 13.8 CFM at 36 PSI continuously. Fuji’s kit includes an inlet pressure regulator with gauge. It’s a compressor gun: run it on shop air, not a Fuji turbine.
Ships from Fuji Spray. Allow a few extra business days.

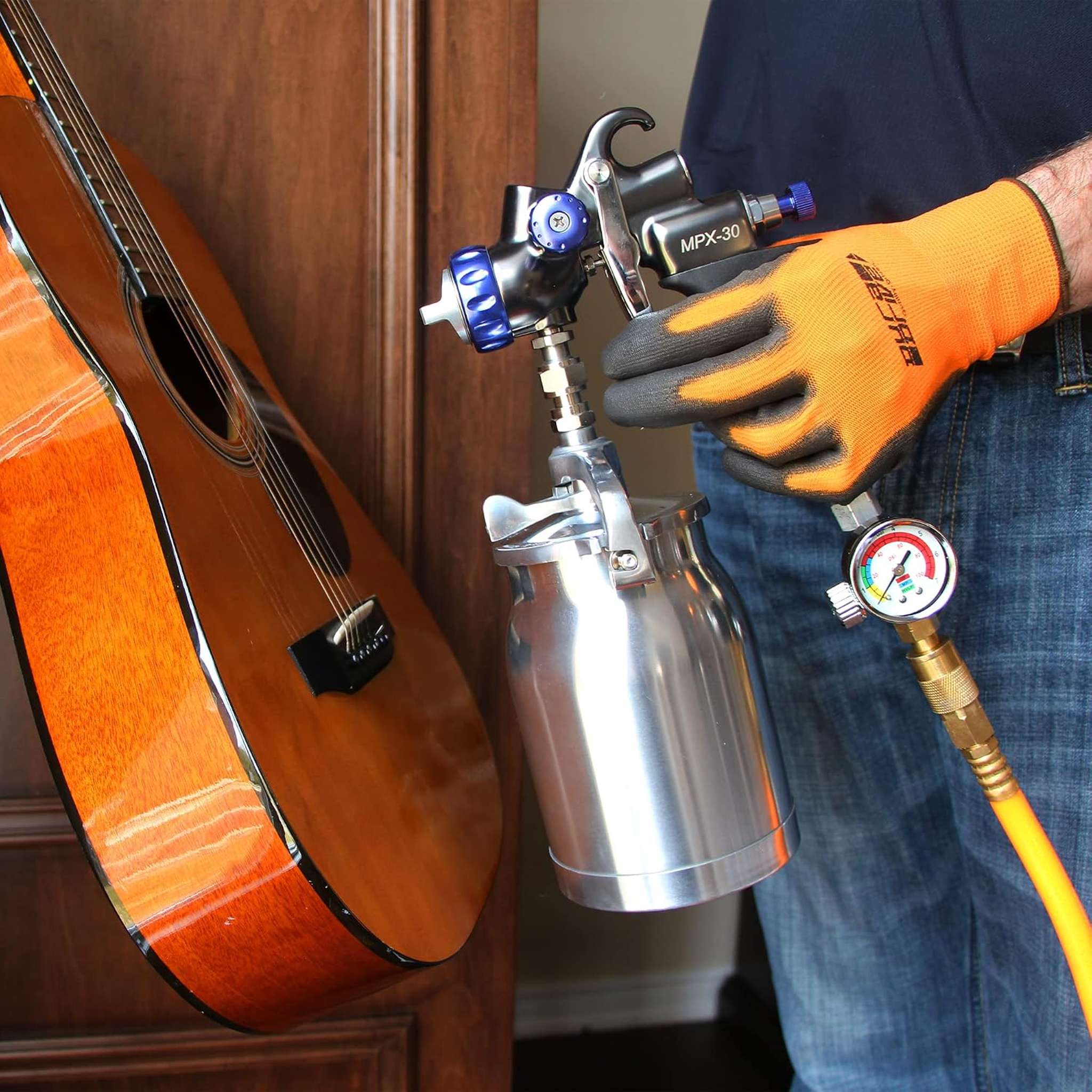

The Fuji Spray MPX-30 is the mid-pressure gun in the X Series — built for professional finishing with the rapid application speed of high-pressure equipment and the efficiency of HVLP. Side-mounted fan pattern control gives precise, reduced-overspray adjustment up to a 330 mm (13") fan, and 100% stainless steel fluid passages handle waterborne and solvent-based coatings from thin dyes to heavy-bodied paints. At 503 g it is light in the hand, with the familiar controls of a conventional gun and less thinning than a fine-finish HVLP.

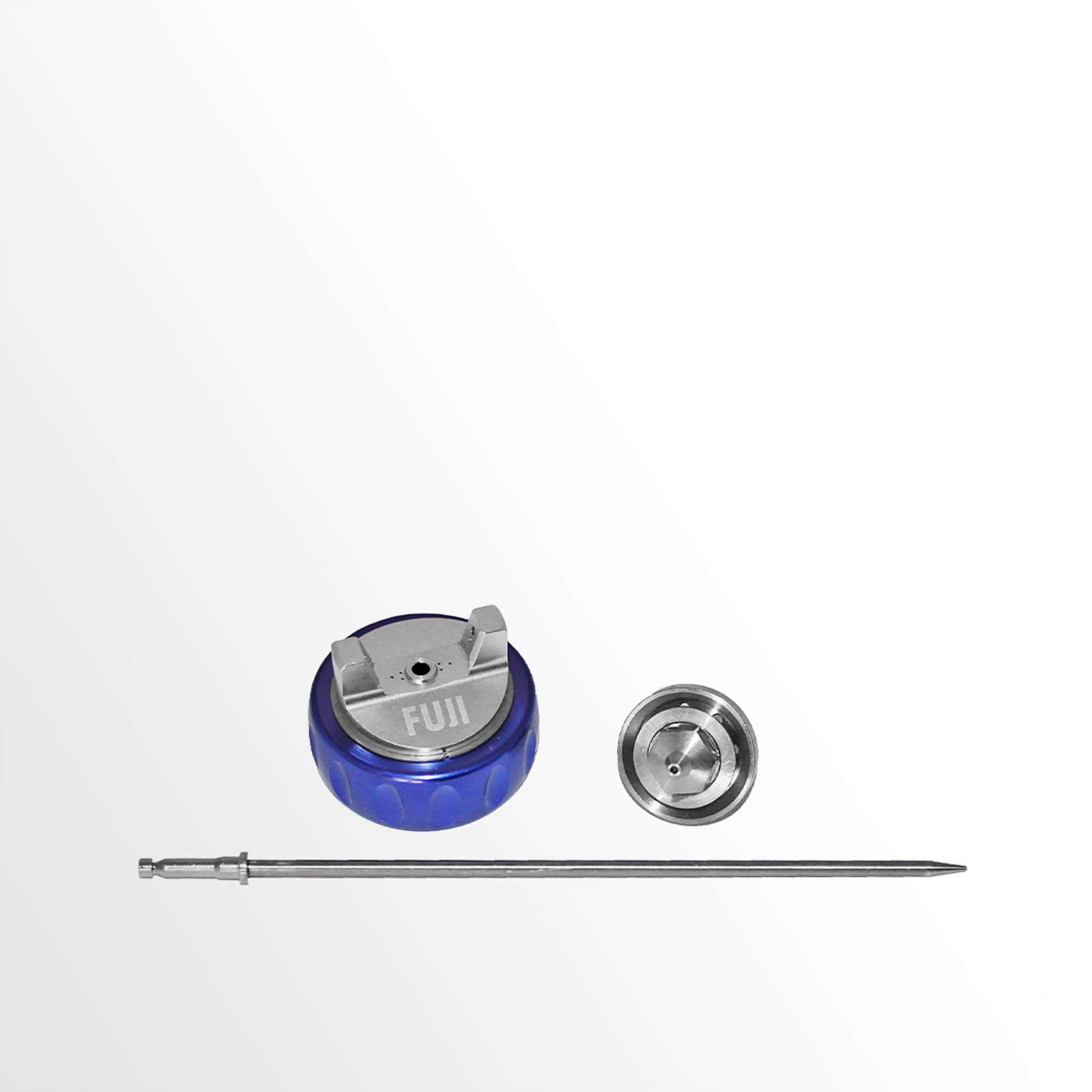

It ships with the 1.4 mm air cap set installed, with five sizes from 1.0 mm to 2.0 mm available to match the material. Fuji's kit also includes the 1.3 mm set and an inlet pressure regulator with gauge.
The gravity-feed MPX-30 is available with no cup or with a 600cc nylon cup. Choose the configuration above.
To use this gun with the 3M Paint Preparation System (PPS) 2.0, you'll need the S2 Adapter (#MMM26003), sold separately. Compressor guns take 3M's standard PPS 2.0 cup straight off the fluid coupler. Fuji’s own how-to shows the same install on a V8 with its S15 adapter.
3M PPS 2.0 · fits this gun
This gun takes the S2 adapter (MMM26003) and the standard PPS 2.0 hard cup from a Cup Kit. No High Output cup is needed on a compressor gun.
Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and the hard cup. The adapter is sold separately.
Fitting tip: drop a liner into the hard cup, lid it, then push the gun onto the lid and give it a quarter turn. Watch Fuji's install video
Key Features
Compatible Air Cap Sets
This gun also takes:
What's in the Box
Consumables
| Gun Type | Mid-Pressure |
| Feed Type | Gravity Feed |
| Standard Air Cap Set | 1.4 mm |
| Air Source | Compressor |
| Application Type | General purpose — woodworking to automotive |
| Available Air Cap Sets | 1.0, 1.3, 1.4, 1.7, 2.0 mm |
| Air Supply Pressure | 36 PSI at gun inlet (2.5 bar) |
| Air Consumption | 13.8 CFM (390 L/min) |
| Maximum Fan Width | 330 mm (13 in) |
| Air Inlet Size | 1/4" BSP and NPS |
| Air Supply Hose | 5/16" ID |
| Fluid Passages | Stainless steel |
| Gun Weight (Without Cup) | 503 g (17.7 oz) |
| Compliance | VOC compliant |
| Fluid Coupler | M 16 x 1.5P |
| 3M PPS 2.0 Adapter | S2 (3M part 26003) |
| Other Cup Adapters | DeKups DPC-11, Colad A09 |
Country of Origin
Designed and assembled in Canada.
Fuji filmed this on a V8 with its S15 adapter; the gravity-feed MPX-30 takes the S2 adapter on the same style of fluid coupler, so the steps are similar.
