One that keeps up with 10.9 CFM at 9–28 PSI continuously. It’s a compressor gun: run it on shop air, not a Fuji turbine.
Ships from Fuji Spray. Allow a few extra business days.

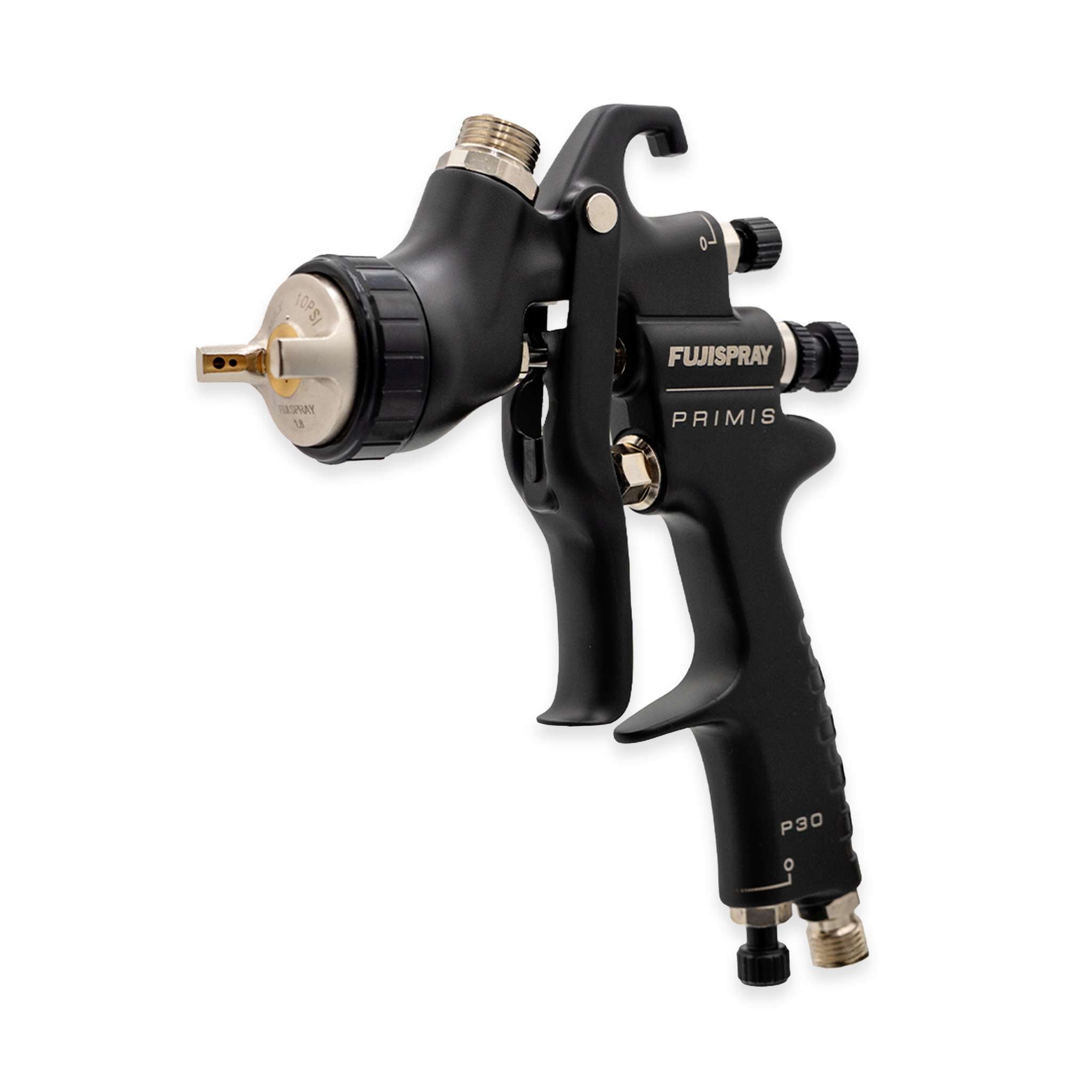

The Fuji Spray PRIMIS P30 is Fuji Spray Auto's dedicated HVLP primer gun, engineered for the demands of modern collision repair — primers, sealers, and fillers with smooth, even coverage that helps reduce sanding time. An aluminum body with copper fluid passages and stainless steel components stands up to daily shop use, with rear-mounted fan and fluid controls for precise adjustment and a minimal internal component design for quick cleaning. Optimized tip range of 1.6-2.2mm for primer and sealer applications. 12-month warranty.
To use this gun with the 3M Paint Preparation System (PPS) 2.0, you'll need the S2 Adapter (#MMM26003), sold separately. Compressor guns take 3M's standard PPS 2.0 cup straight off the fluid coupler. Fuji’s own how-to shows the same install on a V8 with its S15 adapter.
3M PPS 2.0 · fits this gun
This gun takes the S2 adapter (MMM26003) and the standard PPS 2.0 hard cup from a Cup Kit. No High Output cup is needed on a compressor gun.
Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and the hard cup. The adapter is sold separately.
Fitting tip: drop a liner into the hard cup, lid it, then push the gun onto the lid and give it a quarter turn. Watch Fuji's install video
Key Features

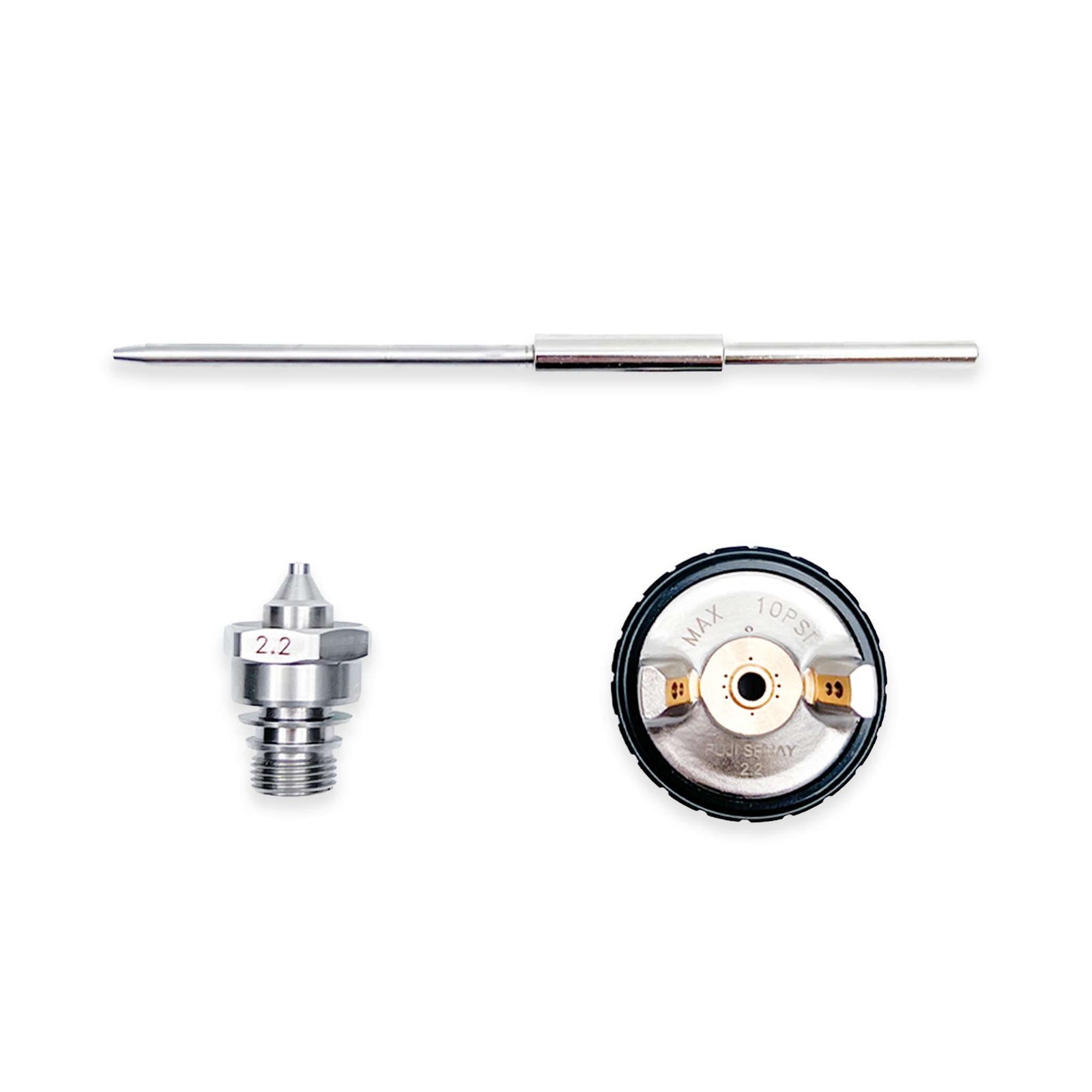

Compatible Air Cap Sets
This gun also takes:
What's in the Box
Consumables
| Gun Type | HVLP |
| Feed Type | Gravity Feed |
| Air Source | Compressor |
| Application Type | Primer/Sealer & General Purpose |
| Standard Air Cap Set | 1.8 mm |
| Available Air Cap Sets | 1.6, 1.8, 2.0, 2.2 mm |
| Operating Range | 9–28 PSI |
| Air Consumption | 10.9 CFM |
| Maximum Fan Width | 310 mm (12.2 in) |
| Air Inlet Size | 1/4" PF |
| Air Supply Hose | 6.5 × 10 mm |
| Fluid Coupler | 3/8" PF |
| Gun Weight (Without Cup) | 448 g (0.99 lbs) |
| 3M PPS 2.0 Adapter | S2 (3M part 26003) |
| Other Cup Adapters | DeKups DPC-11, Colad A09 |
| Warranty | 12 months |

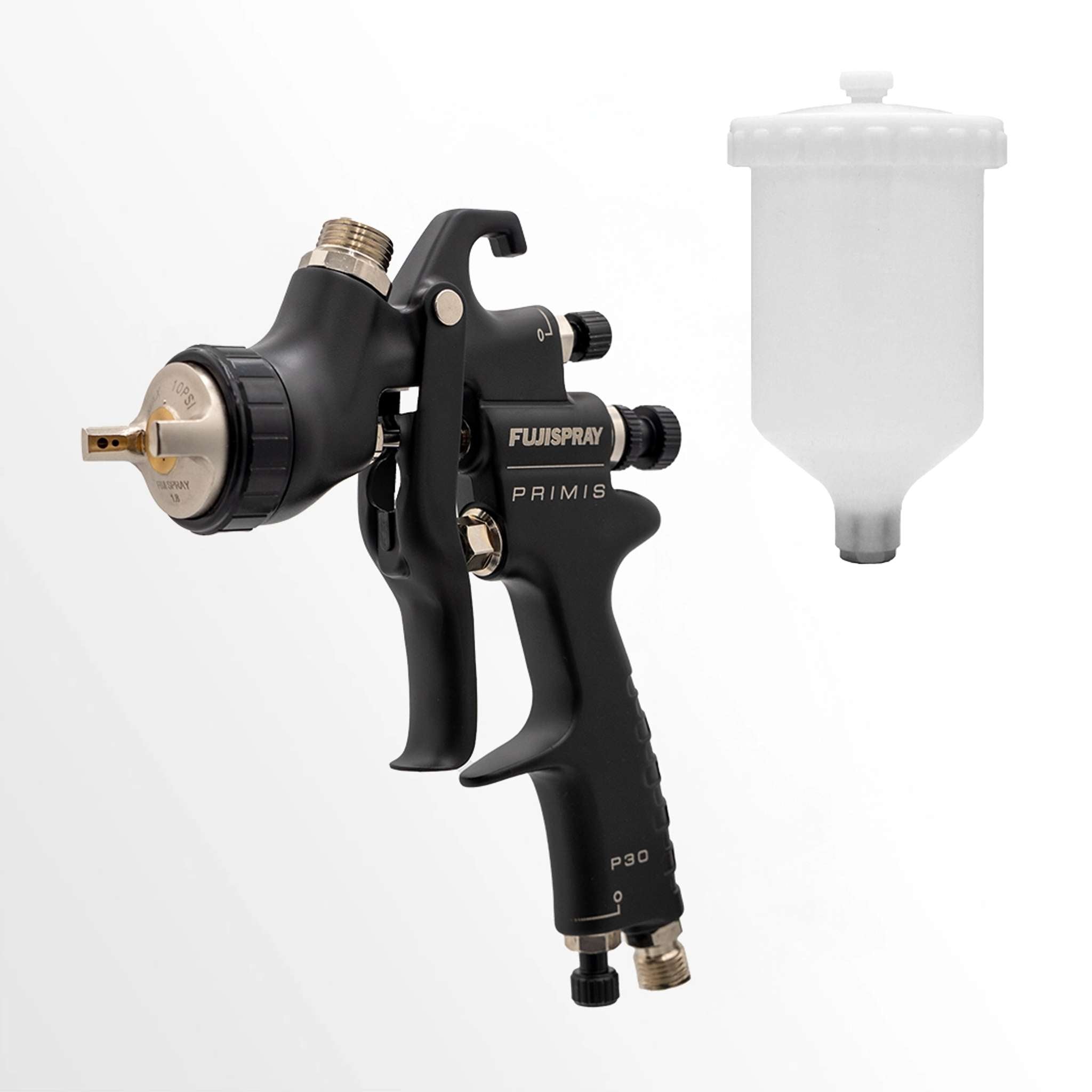

| Cup | 600 cc Nylon, Gravity |
Country of Origin
Designed and assembled in Canada.
Fuji filmed this on a V8 with its S15 adapter; the PRIMIS P30 takes the S2 adapter on the same style of fluid coupler, so the steps are similar.
