Ships from Fuji Spray. Allow a few extra business days.
The Fuji Spray LX-20 is the HVLP gun in the X Series — a general-purpose compressor gun built to replace a conventional high-pressure gun in professional finishing, from woodworking to bathtub resurfacing. Side-mounted fan pattern control gives precise, reduced-overspray adjustment up to a 330 mm (13") fan, and 100% stainless steel fluid passages handle waterborne and solvent-based coatings from thin dyes to high-solid clears. At 502 g it is light in the hand, and it uses the same familiar controls as a conventional gun, with faster application and higher transfer efficiency.

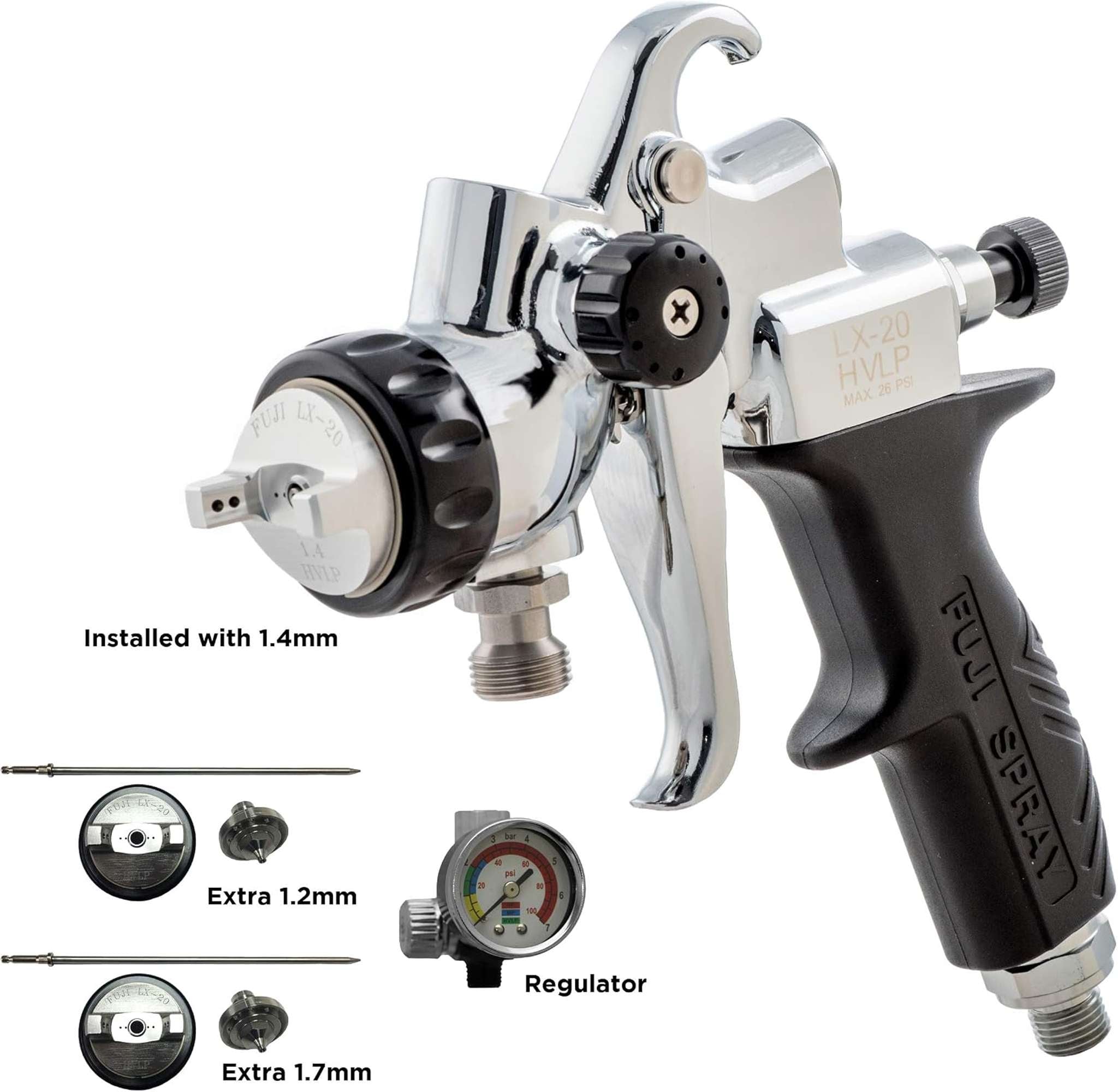

It ships with the 1.4 mm air cap set installed, with five sizes from 1.0 mm to 2.0 mm available to match the material. Fuji's kit also includes the 1.2 mm and 1.7 mm sets and an inlet pressure regulator with gauge, so the gun is ready for a clear coat, a sealer, or a heavier build without a second purchase.
This is the pressure-feed LX-20: a 3/8" fluid inlet in place of a cup, fed from a pressure pot for large jobs and heavy material. It is sold as the gun only. For a cup-fed gun, see the gravity-feed LX-20.
Key Features
Compatible Air Cap Sets
This gun also takes:
What's in the Box
Consumables
| Gun Type | HVLP |
| Feed Type | Pressure Feed |
| Air Source | Compressor |
| Application Type | Waterborne and solvent-borne high-solid clear coat |
| Standard Air Cap Set | 1.4 mm |
| Available Air Cap Sets | 1.0, 1.2, 1.4, 1.7, 2.0 mm |
| Air Supply Pressure | 26 PSI at gun inlet (1.8 bar) |
| Air Consumption | 15.2 CFM |
| Maximum Fan Width | 330 mm (13 in) |
| Air Inlet Size | 1/4" BSP and NPS |
| Air Supply Hose | 5/16" ID |
| Fluid Passages | Stainless steel |
| Gun Weight (Without Cup) | 502 g (17.7 oz) |
| Compliance | VOC compliant |
| Fluid Coupler | 3/8" x 19P |
| Fluid Supply | Pressure pot |
Country of Origin
Designed and assembled in Canada.
Fuji filmed this on a V8 with its S15 adapter; the gravity-feed LX-20 takes the S2 adapter on the same style of fluid coupler, so the steps are similar.
