Which adapter fits my Fuji spray gun?

Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.

Do I need the High Output cup?

On a Fuji turbine gun, yes — Fuji specifies a Midi or Large High Output cup. Its base takes the gun’s pressure tube, so the liner collapses as you spray and the gun works at any angle.On a Fuji compressor gun, no. Use the standard hard cup from a Mini, Midi or Large Cup Kit.

Why won’t the lid fit my High Output cup?

Because of the black locking ring on the lid. Pop it off, put the liner in the H/O cup, set the lid on, and screw the H/O cup’s retaining collar down over it. The ring is only for the standard hard cup.Fuji’s 51-second video shows it.

What’s in a Cup Kit, and what do I buy when it runs out?

Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and one reusable hard cup.Refills: Standard/Large lids and Midi/Mini/Micro lids in 25-packs, and Large liners in a 100-pack. Midi and Mini liners come in their Cup Kits.

Which liners and lids go together?

Standard/Large lids fit the 650 ml Standard and 850 ml Large liners. Midi/Mini/Micro lids fit the 400 ml Midi, 200 ml Mini and 90 ml Micro liners.The Large H/O cup takes Standard and Large liners; the Midi H/O cup takes Micro, Mini and Midi.

Does the Large cup fit the G-XPC?

No. On the G-XPC’s side-mounted position the 28 oz Large cup hits the trigger, so use the Midi.

How do I store leftover paint?

Leave it in the liner: push a sealing plug into the lid and store the cup upside down, so the filter stays wet and doesn’t dry out.

Free Ground Shipping Over $100 (Lower 48). In-stock orders ship in 1–3 business days from Grand Rapids, MI — other items direct from Fuji Spray.

3M PPS 2.0 Adapter S2 - Fuji T75G, MPX-30 & LX-20 Gravity

3M PPS 2.0 Adapter S2Fuji T75G, MPX-30 & LX-20 Gravity

SKU: MMM26003

$36.95 USD

Ships from Fuji Spray. Allow a few extra business days.

The 3M PPS 2.0 S2 adapter fits the Fuji Spray T75G, MPX-30 Gravity Feed, LX-20 Gravity Feed and PRIMIS P30, so the gun takes 3M's disposable PPS 2.0 cups: mix in a liner, spray, throw the liner away, with no cup to clean. It is stainless steel and stays on the gun; each cup locks onto it with a push and a quarter turn.

It is the short adapter, which keeps a gravity gun's footprint small for getting into tight spots. Fuji's walkthrough shows the install.

On a Fuji turbine gun, Fuji specifies the High Output (H/O) cup: the Midi or the Large. Its base takes the gun's pressure tube, so turbine air collapses the liner as you spray. The cup doesn't surge as it runs low, and the gun sprays at any angle, upside down included. Lids and liners go inside it, from a Cup Kit or the refill packs.

On a Fuji compressor gun the adapter takes the standard PPS 2.0 hard cup from a Mini, Midi or Large Cup Kit, with no H/O cup needed. Drop a liner into the cup, lid it, then push the gun onto the lid and give it a quarter turn.

📄 Fuji Spray Quick-Start Guide: Installing the 3M PPS Cup System on Turbine Guns.

Full Specifications

Key Features

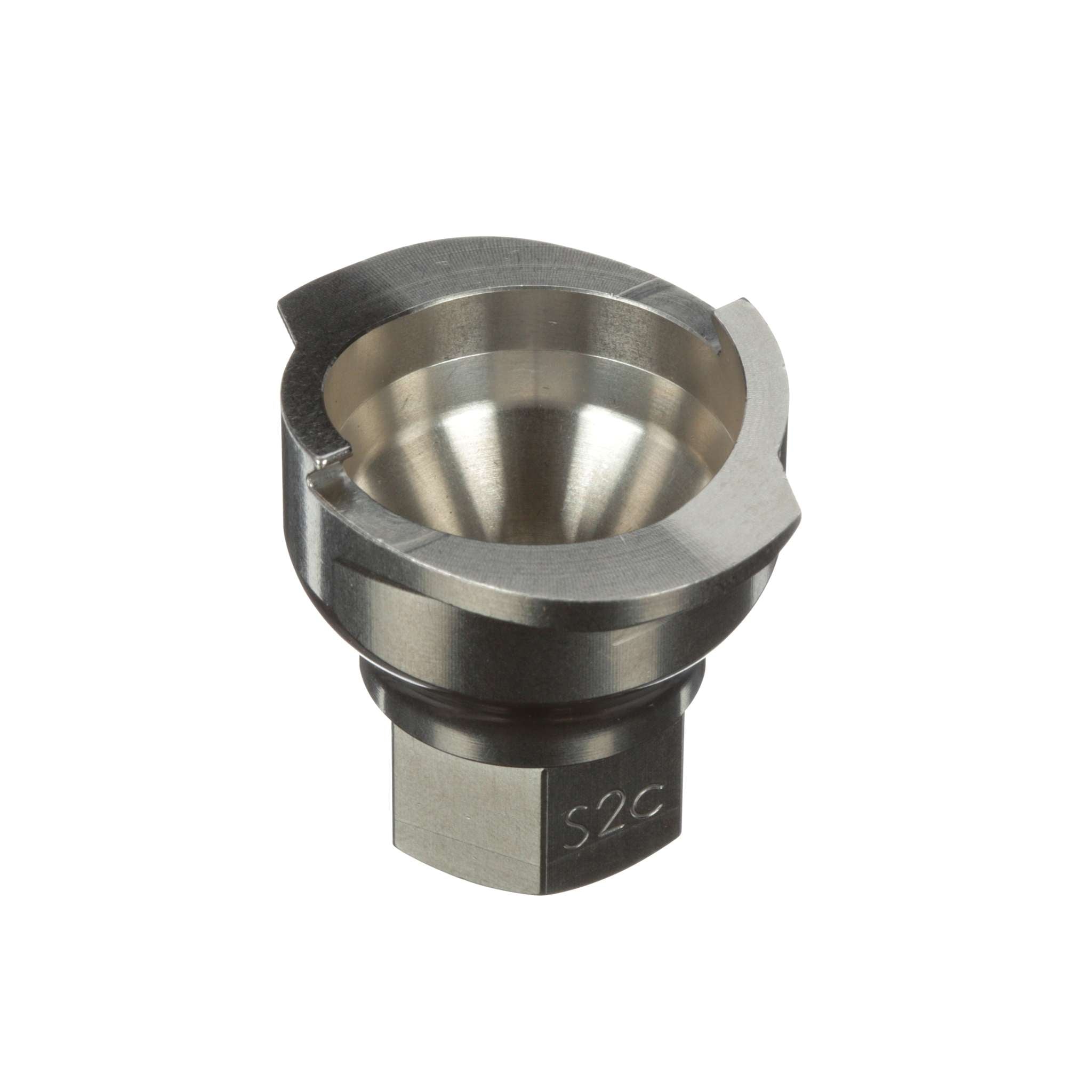

Stainless steel, with four points of connection between the lid and the gun
Marked S2c on the body (Fuji and 3M's parts lists call it the S2)
Stays on the gun: cups lock on and off with a quarter turn
Fits every PPS 2.0 lid and cup, from the 90 ml Micro to the 850 ml Large

Compatible Spray Guns

T75G (turbine)
MPX-30 Gravity Feed (compressor)
LX-20 Gravity Feed (compressor)
PRIMIS P30 (compressor)

The cup it takes:

On turbine guns: a Midi or Large High Output cup
On compressor guns: the hard cup from a Mini, Midi or Large Cup Kit

What's in the Box

One 3M PPS 2.0 S2 adapter

Consumables

Large, Midi and Mini Cup Kits: 50 lids and liners each
Standard/Large lids and Midi/Mini/Micro lids, 25 packs
Large liners, 100 pack

Technical Data

Brand	3M
System	PPS Series 2.0
Adapter	S2
3M Part Number	26003
Thread	16 mm female, 1.5 mm pitch (M16 × 1.5)
Material	Stainless steel

FAQ

: Turbine guns: the T75G takes the S2 adapter; the T70 and both M-Models take the S18 adapter; the G-XPC takes the S24 adapter.
Compressor guns: the MP-V8, MP-V8 STEALTH, H-V8, VALOR M100 and VALOR H100 take the S15 adapter; the VALOR Mini H50 takes the S27 adapter; the gravity LX-20, gravity MPX-30 and PRIMIS P30 take the S2 adapter.
: On a Fuji turbine gun, yes — Fuji specifies a Midi or Large High Output cup. Its base takes the gun’s pressure tube, so the liner collapses as you spray and the gun works at any angle.
On a Fuji compressor gun, no. Use the standard hard cup from a Mini, Midi or Large Cup Kit.
: Because of the black locking ring on the lid. Pop it off, put the liner in the H/O cup, set the lid on, and screw the H/O cup’s retaining collar down over it. The ring is only for the standard hard cup.
Fuji’s 51-second video shows it.
: Each Cup Kit has 50 liners, 50 lids with 200 micron filters, 32 sealing plugs and one reusable hard cup.
Refills: Standard/Large lids and Midi/Mini/Micro lids in 25-packs, and Large liners in a 100-pack. Midi and Mini liners come in their Cup Kits.
: Standard/Large lids fit the 650 ml Standard and 850 ml Large liners. Midi/Mini/Micro lids fit the 400 ml Midi, 200 ml Mini and 90 ml Micro liners.
The Large H/O cup takes Standard and Large liners; the Midi H/O cup takes Micro, Mini and Midi.
: No. On the G-XPC’s side-mounted position the 28 oz Large cup hits the trigger, so use the Midi.
: Leave it in the liner: push a sealing plug into the lid and store the cup upside down, so the filter stays wet and doesn’t dry out.
